Assembly Instruction; Assembly Requires 2 Persons; Bracket A; Screw A - muuto OUTLINE PANEL Assembly Instructions

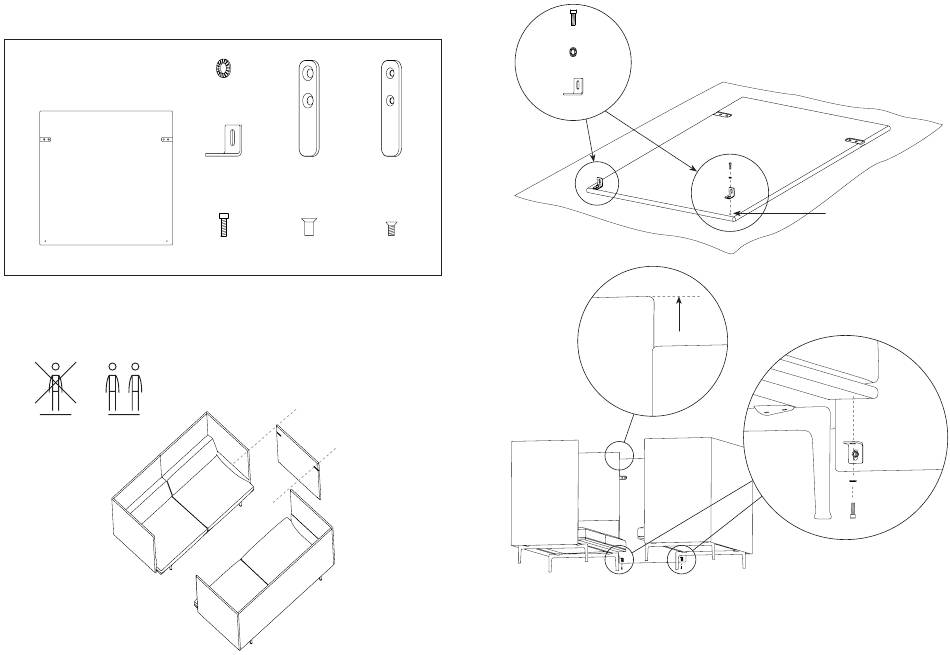

CONTENT — INDHOLD — INHALT — CONTENU — CONTENIDO

ASSEMBLY REQUIRES 2 PERSONS

x 1
ASSEMBLY INSTRUCTION — SAMLE MANUAL — MONTAGEANLEITUNG
INSTRUCTIONS DE MONTAGE — INSTRUCCIONES DE MONTAJA
1

Washer

x 4

Bracket A

Bracket B Bracket C
x 2 x 2

Screw A

Screw B Screw C
x 4 x 4
2
Screw A
Washer
Bracket A
x 2
x 4
3
Keep supporting the panel even after the screws are fastened.
Face marked holes
upward
Washer
Screw A
