- Page 1 STACKED STORAGE SYSTEM — Julien De Smedt...

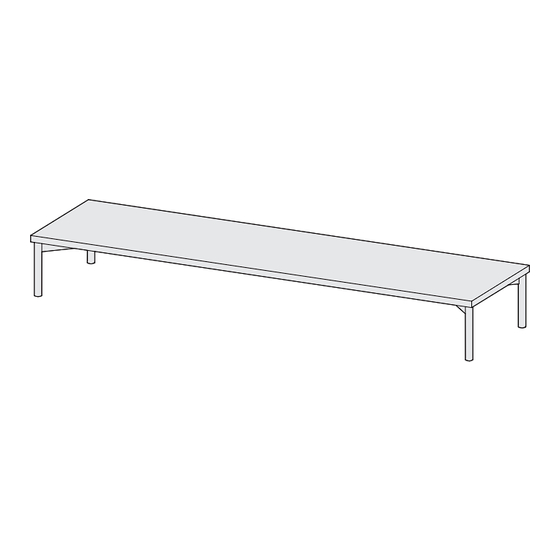

- Page 2 CONTENT — INDHOLD — INHALT — CONTENU — CONTENIDO Stacked Podium Stacked Top Plate Stacked Plinth Stacked Shelf Stacked Shelf Insert...
- Page 3 Stacked Open Module Stacked Open Module w. Backboard Stacked Module w. Door...
- Page 4 Door, you must always position it at the bottom, both at the front and back. When setting up a Stacked Storage System on a Podium or Plinth, attach clips to the bottom of each connected module on both the front and back. Additional clips can be purchased separately to increase the system’s stability.
- Page 5 PLACING THE STACKED MODULES To securely connect the modules, position the clips on both the front and back sides. Always use at least one clip on two sides of a module for an overall stable configuration. PLACERING AF STACKED MODULER Modulerne sammensættes sikkert ved at placere clipsene på...
- Page 6 Any Stacked Module must be supported by at least half of the width of any Stacked Module, Stacked Podium or Stacked Plinth underneath it. Et Stacked modul skal altid understøttes nedefra af mindst halvdelen af bredden af et Stacked modul, et Stacked podium eller en Stacked sokkel.
- Page 7 WALL MOUNTING INSTRUCTION. ONLY STACKED MODULES W. BACKBOARD/DOOR — INSTRUKTIONER TIL VÆGMONTERING. GÆLDER KUN STACKED MODULER MED BAGPANEL/DØR — ANWEISUNGEN ZUR WANDMONTAGE. NUR STACKED MODULES MIT RÜCKWAND/TÜR — INSTRUCTIONS POUR MONTAGE MURAL. UNIQUEMENT MODULES STACKED W. BACKBOARD/PORTE — INSTRUCCIONES DE MONTAJE EN PARED. SÓLO MÓDULOS STACKED CON TABLERO/PUERTA If necessary, break the wall mounting rail on its weak spot, according to the Stacked Module’s size.
- Page 8 For wall mounting guide, please visit: www.muuto.com/download For vejledning til vægmontering, besøg venligst: www. muuto.com/download Eine Anleitung zur Wandmontage finden Sie unter: www.muuto.com/download Pour le guide de montage mural, veuillez consulter: www. muuto.com/download Para las instrucciones del montaje en pared, visite: www.muuto.com/download DOOR MODULES: Door modules must always be placed so the door opens vertically.
- Page 9 LOOSE CLIP: If the clip feels loose or doesn’t grip both modules securely, gently squeeze its sides to narrow the gap and tighten. LØS CLIP: Hvis clipsen føles løs eller ikke griber godt fat i begge moduler, skal du forsigtigt klemme clipsens sider for at indsnævre mellemrummet og stramme til.
- Page 10 Position Stacked Medium Door modules no higher than 148cm above the ground. Stacked Large Door modules should only be placed on the 1st row of a configuration. Undlad at placere Stacked medium moduler med dør højere end 148 cm over gulvet. Stacked Large moduler med dør bør kun placeres på...
-
Page 11: Maximum Weight Load
MAXIMUM WEIGHT LOAD A Stacked Podium is tested to withstand a maximum weight of 300 kg / 660 lbs. A Stacked Module is tested to hold up to 25 kg / 55 lbs. A wall mounted Stacked Module is tested to hold up to 12 kg / 26.5 lbs. MAKSIMAL VÆGTBELASTNING Et Stacked podium er testet til at kunne bære en maksimal vægt på... - Page 12 Tenga cuidado al colocar o mover objetos en las superficies de Stacked, ya que pueden producirse arañazos. Superficies metálicas: Superficies con recubrimiento en polvo: Limpie con un paño húmedo. Si es necesario use un poco de jabón para platos en el paño. MUUTO HEAD OFFICE ØSTERGADE 36-38, DK-1100 FOR MORE INFORMATION COPENHAGEN, DENMARK...
