Bird-X BB-PRO Quick Start Manual

PROGRAMMING EXAMPLE
Recording Switches: Results:
1, 3, 5 and 6 to "ON" position Plays Sounds 1, 3, 5 & 6
Mode Switches:
1 = "OFF" position
2 = "ON" position (Medium), every 1 to 4 minutes
3 = "ON" position
4 = "OFF" position Operates during daylight hours only
5 = "ON" position In random, non-sequential order

VOLUME CONTROL

The unit has a volume control dial for the sonic
(audio) sounds on the front panel of the unit.
Turning the dial toward LOW will result in reduced
sound output and rotating the dial toward HIGH will
result in an increase in sound output.
CAUTION: Take care when turning the dial since the unit may be in
an inactive state when the dial is rotated. It could then reactivate at
a very high level of sound which could be painful to your ears.

POWER SWITCH

The power switch enables the unit to operate.
Slide the switch to the ON position to start the unit.
If you turn the unit OFF, be sure to leave it off for
about 30 seconds before turning it back on to allow
the electronics to properly reset.

TROUBLESHOOTING

PROBLEM SOLUTION
• Check volume settings
Unit is on, but no
• Check time of operation settings.
sound is heard
• Check that at least one sound is
selected to play.
Unit is on, but plays
the same sound over
• Reset the unit by turning it off
and over, regardless
for 30 seconds and then back on
of settings
• Double check Mode switch
Unit is not operating settings
properly in the
• Make sure photocell is not
obstructed
DAY or NIGHT mode
• Make sure the photocell is not
affected by bright lights in either
the front or the back of the unit.
Limited Warranty
This BB-Pro unit is warranted against defects in
material and workmanship for six months from date
of purchase (extended warranty available). Bird-X
will replace or repair, provided defect occurs under
normal use. Units also carry a 30-day performance
guarantee. If user is not satisfied with results, unit
may be returned within 30 days for credit less a 15%
handling and restocking charge. Returns accepted
only with authorization from our Chicago office.

Prepare for Successful Bird Control

Bird-X, Inc. has been recognized worldwide as the
bird control x-perts for 40 years. We have become
experts through extensive experience and research.
As a result, we are happy to analyze problems and
make recommendations based on each customer's
specific situation and needs. In addition, we provide
the following recommendations for greatest success,
even before activating the repeller.
Survey the birds to determine flight and time patterns,
entries and exits, and nesting, feeding and roosting
habits. This will suggest the unit placement, speaker
direction and time of operation you should choose.
Make educated guesses as to where the birds will go
when they are repelled from their current infestation,
and consider additional units to cover these alternative
areas.
Remove inducements. Clean the area of all evidence
of birds: nests, fledglings, droppings, dead birds, and
the residential scent. (Adult birds are likely to return to
their young in order to protect them or to assist them
in leaving the area.) Remove food spillage, garbage,
nesting material and other appealing items.
Maintain a clean and changing environment.
Periodically clean the area of nests and droppings,
relocate or reposition the unit, vary the output, or turn
off the unit for a short time.
Install early, before "bird season" begins, as it is
easier to keep the birds away than to rout them out
once they have established a living pattern.
Use products synergistically. We have included
three visual scare devices because their use with
this machine will produce a synergistic effect -- i.e.,
in combination, the products will yield much greater
effectiveness than the one alone. Contact us if you
have any questions on these "companion" products.
300 North Elizabeth Street • Chicago, IL 60607
ph. (312) 226-2473 • fax (312) 226-2480
Toll Free US & Canada 800-662-5021
www.bird-x.com • sales@bird-x.com
EPA Establishment Number 075130-OR-001
BB–PRO P/N #655-0047-00 rev. A (01-28-05)
Digital Bird Repeller

PRIOR TO INSTALLATION

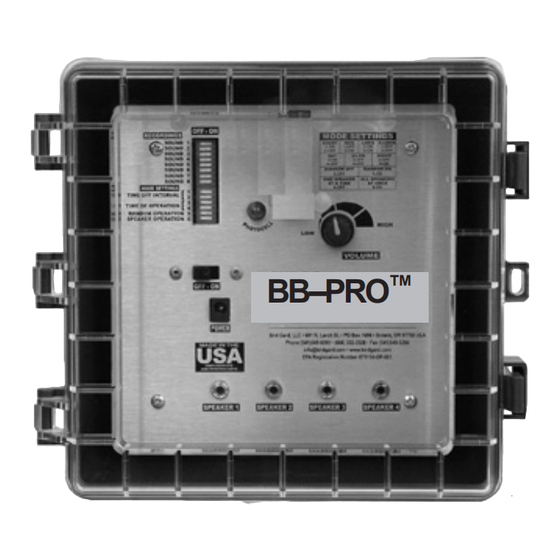

Your complete BB–Pro kit includes a control unit,
power adapter and four speakers. Open the con-
trol unit by lifting the two latches on the side of the
enclosure.
BB–PRO ™
Prior to operation, route the speakers and power
cables from their respective jacks on the control
panel down through the cable strain relief in the
lower part of the enclosure, as shown in Fig. 1.
IMPORTANT: Be certain that
the power switch is in the OFF
position and the audio volume
control is set to the minimum
(LOW) audio volume level (coun-
terclockwise) as shown in Fig. 2
while plugging the speaker and
power cords into the control unit.

HOW IT WORKS

Sonic and ultrasonic sounds sequence through all
four speakers. Sonic sounds play according to the
programming options you choose. Ultrasonic sounds
are always active – day and night – regardless of
programming, however they won't play during the
sonic sounds.

INSTALLATION

1) Use the mounting hardware (included) to mount the
control unit box to a wall, post or other vertical surface.
2) Plug the power adapter into an electrical outlet.
The other end of the cable should already be plugged
into the power jack located above POWER JACK on
the front panel of the control unit box.
3) Speaker positioning: On a billboard or sign, you will
most likely want to position speakers in between the
double-sided sign, or in the back of a single-sided
™
C a b le
Str ain
Rel ief
Fig. 1
Audio Volume
Fig. 2
