- Page 1 O p e r a t i n g i n s t r u c t i o n s Y H B A S I C C o n t r o l P a n e l Y H B a s i c...
-
Page 2: Table Of Contents
C o n t e n t s Introduction ................. 1 Warranty and liability ............2.Safety ..................3 3.Overview ..................4 4.Heating operation ................ 5 5.Ventilation Operation ..............6 6.Error reporting ................7.Set Temperature Control ............7 7.1 Standart mode ..............7 7.2 Room thermostat mode ........... -
Page 3: Introduction
1 . I n t r o d u c t i o n To fully enjoy the comfort of your Yılkar heater, please read this user manual carefully. If you have additional questions regarding assembly or operation, please contact your specialist dealer or Yılkar service. -
Page 4: Overview

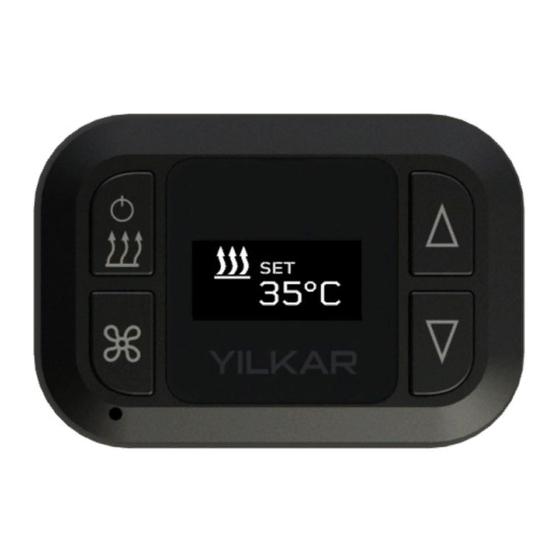

3 . O v e r v i e w Heating On / Off button S y m b o l s : Heater shutdown button (5 seconds) Heating active Ventilation On / Off Ventilation active Increase direction button Error alert Decrement direction button Ambient temperature sensor Display screen... -
Page 5: Heating Operation
4 . H e a t i n g o p e r a t i o n H e a t i n g s t a r t The YH Basic control panel controls the air heater based on the SET value. Your heater starts heating with the temperature you set last. -
Page 6: Ventilation Operation
V e n t i l a t i o n s t a r t a n d s t o p The YH Basic control panel controls the air heater based on the SET value. Pressing the button with the ventilation icon will start the ventilation mode. -
Page 7: Set Temperature Control
7 . S e t T e m p e r a t u r e C o n t r o l Your heater heats at maximum level until it reaches the set temperature. If the set temperature is reached, it goes into standby mode. If the ambient temperature falls below the set value, it will reactivate and heat. -
Page 8: Resetting The Device
8 . R e s e t t i n g t h e D e v i c e If you press the button with the close icon for more than 5 seconds, the button turns itself off. If you press the on button again, the button will reset your heater by turning it on. -
Page 9: Error Codes
1 0 . E r r o r c o d e s E 01 : Glow Plug Open Circuit Cause: The cable may be cut or the socket may be disconnected. The glow plug may be defective or broken. Device Response: When the device sees the error, it wants to switch to stop mode. - Page 10 E 04 : Fuel Pump High Current Cause: Cable may be cut or short-circuited. Device Response: If the system detects an error while in the stop mode, the system will not operate and an error will appear on the screen. If the pump is short-circuited while the system is running, the system will likely go into stop mode by cooling to detect that the flame has gone out (E19) or that the combustion has not started (E15).
- Page 11 E 07 : Indoor Temperature Sensor Open Circuit Cause: The cable may be cut or the socket may be disconnected. The indoor temperature sensor may have failed. Device Response: When the device sees the error, it wants to switch to stop mode. Troubleshooting: * Check the internal temperature sensor cable and sockets.
- Page 12 E 11 : Flame Monitoring Sensor High Current Cause: Cable may be cut or short-circuited. Device Response: When the device sees the error, it wants to switch to stop mode. If the system is hot, it will operate cooling mode before stopping. Troubleshooting: * Check the flame monitoring sensor cable and sockets.
- Page 13 E 14 : Low Voltage Failure Cause: The voltage drops below 21 volts for 24-volt devices and less than 10.5 volts for 12-volt devices, and the device detects a low voltage failure if the supply voltage is present for more than 20 seconds.
- Page 14 E 17 : Control Unit Communication Failure Cause: Deformation may occur in the cables that the device communicates with the control unit. There may be a failure in the YHC or control panel. Device Response: When the device detects this error, it will go into stop mode by cooling if it is working.
-
Page 15: Technical Information
The installation instructions must be read and followed carefully before installing the heater and operating the device. Regulations will be invalid and YILKAR will not take any responsibility if improper installation or work is done or determined to be done. - Page 16 Vehicle Heating Cooling and Ventilation Systems Phone : +90 224 215 53 28 (pbx) : +90 224 215 99 24 Address : Küçükbalıklı Mah. 580.Sok No:6 Osmangazi / BURSA / TURKEY w w w . y i l k a r k l i m a . c o m...
