Coolmax HD-381BK-U2 User Manual

HD-381-U2 MANUAL
I. Features
•
USB 2.0 Interface, support high speed data transfer rates up to 480 Mbps
•
Backward compatible with USB 1.1 specifications
•
Hot swappable and true Plug-n-Play
•
Fully compatible with 3.5" SATA I and SATA II hard disk
•
Suitable for Desktop, Notebook
•
Insulating designed PCB
•
Aluminum case
•
One touch file backup
II. Specification
•
HDD: SATA I / SATA II
•
Interface type: USB 2.0 (Backward to USB 1.1)
•
Material Case: Aluminum
•
Powered by a DC 12V/DC 5V 2.0A Adaptor
•
Power LED/HDD LED

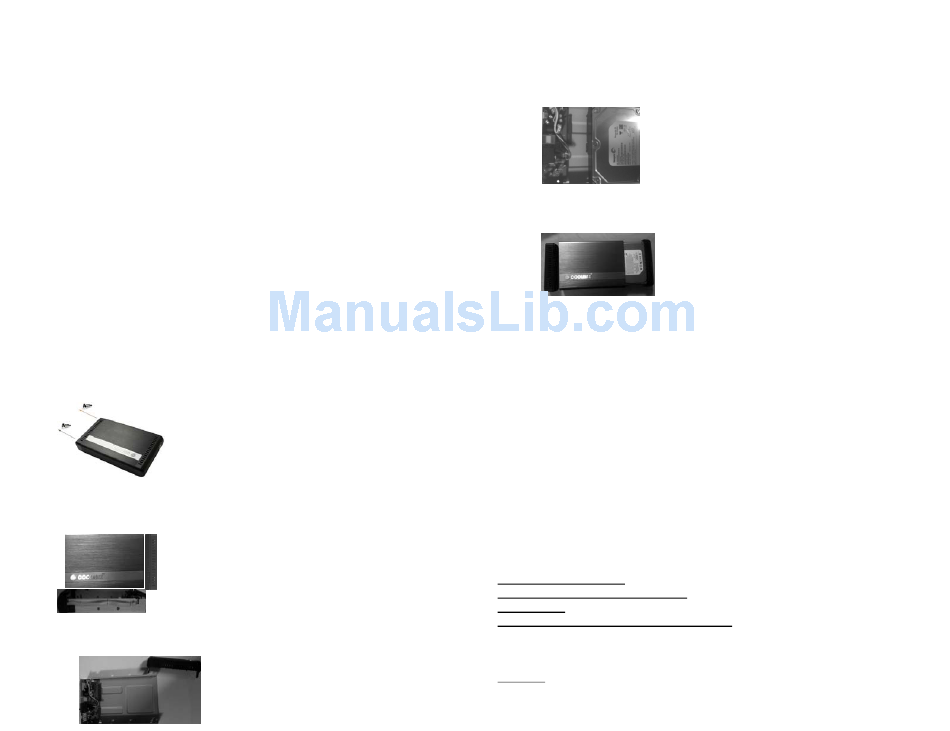

III. Hard Drive Installation Tutorial
Part I: Install Hard Disk (SATA HDD) - Can not support IDE HDD
1. Un-load 2 screws at the back panel and take off the back panel
2. Slide off the front panel set(front panel, metal frame, PCB board),
3. Un-load the main frame with PCB from the metal frame and slowly detach one
side of the black plate
4. Slide-in and affix the HDD on the metal frame with 2 HDD screws
5. Insert the front panel set to the aluminum case and reload the back panel
with screws
IV. Instructions
Note: Please use direct USB connection at the rear of your PC/Notebook
The 3.5" HDD Enclosure connects to the host computer through a USB,
which is made with a USB cable having a Type A connector for connection to a USB
port on the host computer, and a type B connector for connection to the type B port
on the 3.5" HDD Enclosure. Plug on the AC adaptor enclosed, turn on the power
switch, after your computer detects this device as a removable hard disk, you
installation is successful.
(Users of Windows 98 need to download the driver first)
LED Indicator:
1. Blue light is on while connecting
2. Blue light is flashing while loading or writing data.
3. Fan: Power on switch at the back panel.
V. Special OTB Functions
•
One Touch Button File Backup
Dowload OTB software:
http://www.coolmaxusa.com/otb.asp
Instructions:
http://www.coolmaxusa.com/usermanual.asp
VI. System requirements
PC Users
