HPM XLP919WEWE Instruction Manual

1 Specifications
Cat No XLP919WEWE XLP920WEWE
Voltage rating 250V a.c.
Current rating 6A
Terminal capacity 2 x 2.5mm²
IP rating IP41
Storage temperature -10°C to +70°C
Operating temperature -5°C to +50°C
Resistant to the Hexane, methylated spirits,
following agents soapy water, diluted
ammonia, diluted pure
bleach (10%), glass cleaning
substance, pre-impregnated
wipes
Not resistant to the Acetone, tar remover,
following agents trichloroethylene
3 Mechanism Dimensions
250V a.c.
6AX
40,3
Bi-directional Switch
Cat XLP919WEWE & XLP920WEWE
Instruction Manual
2 Operation

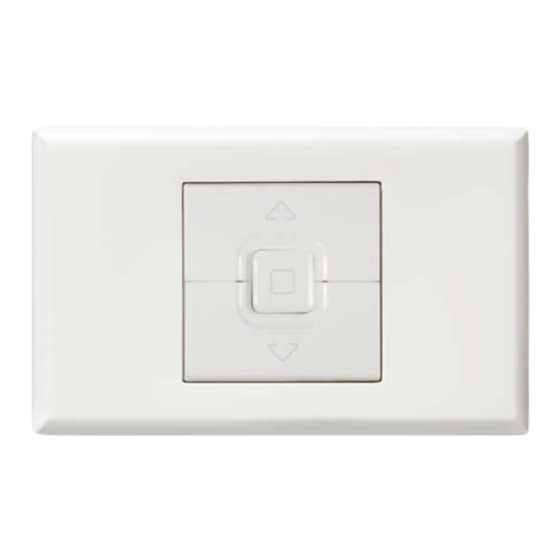

XLP919WEWE and XLP920WEWE are three-position
switches which allow bi-directional control of shutters,
blinds, screens, garage doors and similiar devices.
XLP919WEWE has momentary push buttons for Up,
Down and Stop and so would generally be used if the
device to be opened/closed has its own controller.
XLP920WEWE has latching push buttons for Up and
Down, which are released by pressing Stop. This model
can be wired directly to the device being controlled.
Up
Stop
Down
45
