HPM XLTD770/1 Instruction Manual

1 Specifications (at 25°C)
Supply voltage
Selectable time delay
Max and min load
Weatherproof rating
Operating temperature
Load type
Incandescent and
240V linear halogen
240V GU10 halogen downlights
Compact fluorescent
Linear fluorescent
(Electronic ballast)
Linear fluorescent
(Magnetic ballast with power
factor correction)
Linear fluorescent
(Magnetic ballast without power
factor correction)
Low voltage halogen
(Electronic transformer)
Low voltage halogen
(Magnetic transformer)
Fan motor
* GU10 240V halogen downlights can damage the time delay switch when they fail, and are therefore not recommended for use with
this product.
** Compact and linear fluorescent lamps may flicker in the "off" state if the minimum load requirement is not satisfied. A minimum
load of 10W can be achieved if a resistive load is connected in parallel with the fluorescent load. This can be, for example, a resistor
or incandescent lamp rated at least 10W.
*** Power factor correction capacitors must be placed on the line side of the time delay switch. If this is not possible then they should
either be removed, or a 36W magnetic ballast should be connected in parallel with the fluorescent load, to prevent damage to the
time delay switch.
**** Refer to the following table for VA ratings when power factor correction is not used:
Tube Size Effective Load
1 x 15W 85VA
1 x 20W 85VA
1 x 30W 85VA
1 x 40W 105VA
2 Features
• Selectable time delay
Choose from a 1, 3 or 10 minute delay period
using the switch on the back of the unit.
• Direct replacement for pneumatic switches
No change in wiring is required.
230-240V a.c. 50Hz
1, 3 or 10 minutes
See table below
IP56 (TD170/1 only)
0 to 50°C
Min Load Max Load
20W 600W
Not suitable*
150W** 600W
150W** 600W
40W*** 600W***
100VA**** 600VA****
20W 600W
20W 480W
20VA 600VA
Tube Size Effective Load
1 x 65W 170VA
1 x 80W 210VA
2 x 20W 185VA
2 x 40W 210VA
• Multiple push buttons
Connect NX770M remote push buttons
as shown in the wiring diagram to enable
switching from several locations.
• Illuminated push button
Push button glows red when unit is off, so
that it can easily be located in the dark. Not
available for remote push buttons.

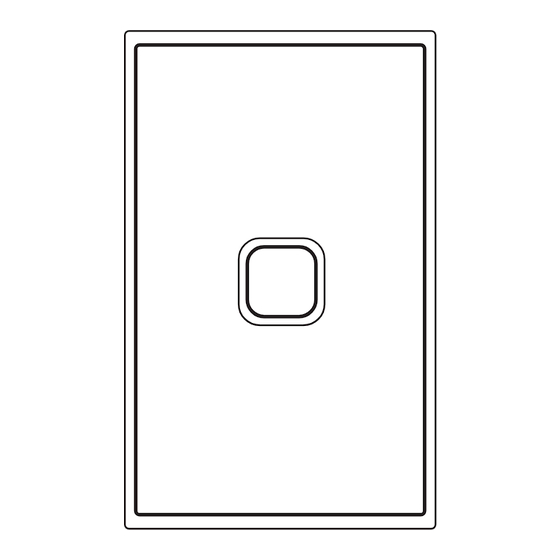

Time Delay Switch-Two Wire
CAT XLTD770/1 & TD170/1

Instruction Manual

• Weatherproof (TD170/1 only)
Rated IP56.
• Ease of installation
XLTD770/1 and TD170/1 fit all standard
mounting accessories.
