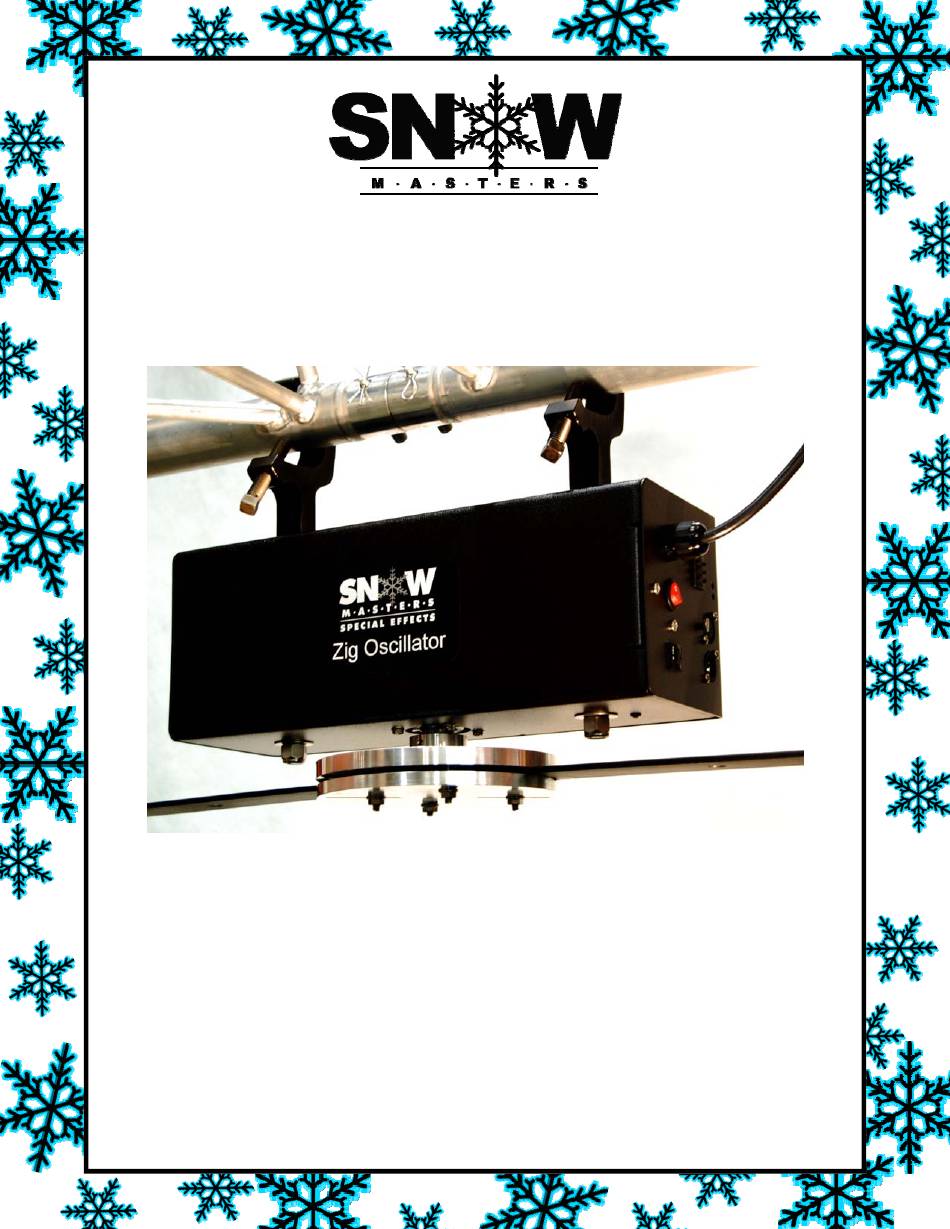

- Page 1 Zig Oscillator User Manual Ver 1.0 256-229-5551 24-Hour Technical Support: 888-391-7669 www.snowmasters.com Lifetime Warranty © 2009 SnowMasters...
- Page 2 YOU MUST READ THE FOLLOWING BEFORE OPERATING THE ZIG OSCILLATOR The Zig Oscillator is an Electric Product – not a toy. To avoid the risk of fire, burns, personal in- jury, and electric shock, it should not be played with and should be placed out of the reach of small children.
- Page 3 Tether Length to Remote (Optional Accessory): 25 feet 3.0 General Operating Instructions Operating Instructions: The Zig Oscillator has simple instructions that must be carefully followed in order to create the desired effect, ensure the safety of the operators/participants and to protect the equipment from damage.
- Page 4 Step 4—Mount the Zig Oscillator and machine to truss 4) Carefully lift both the machine and Zig Oscillator to its desired mounting location. Depending on the height of the desired effects location and machine weight, two or more people may be required to assist.
- Page 5 Step 4—Connect Power and DMX cable to the Zig Oscillator (if applicable) 5) Connect the power cord from the Zig Oscillator. If applicable, attach DMX-512 cable and/or Snow- Masters® 25-foot Hard Wire Remote (rented/sold separately). Step 5— Set the Thumb Dial to DMX or Standalone mode The Zig Oscillator controller has DMX-512 capability and a remote control interface.
- Page 6 Thumb Dial Settings: The tables below show the all settings that can be attained with the use of the 3 rotary switches located on the back of the device. An ‘X’ in a position indicates that the number in that position does not matter for the required result to be attained. Switch A is in the hundreds position, Switch B is in the tens position, and Switch C is in the ones position.
- Page 7 Table 5 shows the use of switches B and C when switch A is set to 8 (Always on state). Switches B and C work similarly to Switch C when Switch A is set to either 6 or 7 (Momentary states), in that it controls the speed as a percentage of the total speed.
-
Page 8: Limited Lifetime Warranty
Having met these criteria any SnowMasters® Zig Oscillator that fails to work during normal operations will be serviced and/or replaced with another Zig Oscillator. It is the responsibility of the customer to incur the costs of shipping the machine to and from SnowMasters for repair or replacement. - Page 9 REPAIR RETURN FORM Company Name: ____________________ Prepared by: _______________________ Contact Name: ______________________ Today's Date: ___ / ___ / ______ Phone Number : ____________________ Return by Date: ___ / ___ / ______ Item(s) being returned Serial Number Description of Problem ______________________ _________________ ________________________ ______________________...
