Continental Refrigerator DLFB42-SS Specifications

Continental Refrigerator DLFB42-SS Specifications

Designer line worktop freezer bases

Advertisement

Quick Links

Utilizing Environmentally Safe, CFC-free R-404A Refrigerant
DLRF42-SS
Shown w/ Optional
Drawers
Models Available
• DLFB42-SS
• DLFB67-SS
•DLFB92-SS
Refrigeration System
The self-contained refrigeration system is mounted
with a side mounted housing, concealed behind a
stainless steel louvered grille. Full length air grille
allows for even air circulation to condensing unit. A
"Performance Rated", air-cooled, hermetically sealed,
capillary type refrigeration system is installed in each
model. Plasticized finned coil and air circulating fans
are
contained within an easily accessible, low pro-
file ceiling mounted housing. Our unique air flow
design allows the cabinet to be enclosed on both sides,
or to be mounted flush against a wall. Our refrigeration
system, fully charged with R-404A refrigerant, is
designed to maintain 0
°
Fahrenheit while operating
with an unrestricted air supply in an ambient tempera-
ture of 100
°
Fahrenheit. All condensate water is direct-
ed to a non-electric condensate vaporizer located in
the compressor compartment, thus no plumbing is
required. A strict quality assurance team inspects all
materials and components to certify that each model
conforms to the most exacting standards. All models
are performance tested for a minimum of 16 hours
prior to crating.
FREEZERS

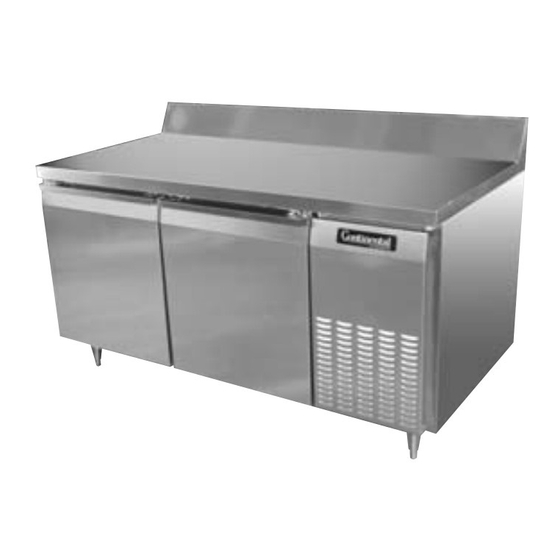

DLFB67-SS-BS
• DLFB42-SS-BS
• DLFB67-SS-BS
• DLFB92-SS-BS
Cabinet Construction
All materials are of top quality, and are assembled
under rigid supervision conforming to strict quality
assurance requirements. Case is of all metal welded
construction and is internally supported and braced
for rigid unit construction. Exterior cabinet back and
bottom are heavy gauge galvanized steel. Work top is
constructed of heavy gauge polished stainless steel
for durability. Cabinet design eliminates overlapping
panels with raw edges. Interior corners are rounded
with a 1 / 4 " radius for cleaning ease. All cabinet joints
and seams are vapor-tight sealed. Easily removable
anti-sweat door heaters, concealed by a non-metallic,
non-conductive, high impact thermal breaker strip,
eliminates condensation build-up on case front.
Insulation
All cabinet walls, top, and bottom have high density,
foamed-in-place, non-CFC polyurethane insulation.
WORKTOP
FREEZER BASES
Standard Features
• Stainless Steel Exterior and Interior
• Modern State-of the-Art Styling Performance
Rated Refrigeration System Utilizing
Environmentally Safe R-404A Refrigerant
• Automatic, Energy Saving, Non-Electric
Condensate Disposal System
• High Density, Non-CFC Polyurethane Foamed-In-
Place Insulation
• Easily Accessible and Serviceable Front Slide-Out
Condensing Unit
• Completely Enclosed, Vented and Removable
Case Back
• Plasticized Fin Coil
• Capillary Dial Thermometer
• Chrome-Plated Hardware
• Reinforced Rigid Work Table
• One Piece Snap-In Magnetic Gaskets
• Adjustable 6" Stainless Steel Legs
• Automatic Electric Defrost
Optional Features & Accessories
• Remote Models–R
• Interior Adjustable,
Removable Angle Sides
• Heavy-Duty Pilasters
• Stainless Steel Rear
Cover
• Back Splash - BS
Shelving
Shelves are designed for heavy-duty use with .306"
diameter frame and brace members and .140" diam-
eter fill wires spaced
steel and epoxy-coated for a durable, long, rust-free
service life. Adjustments are in
wide door opening allows the use of a variety of
optional pan and tray slide types.
Door Construction
Door shells are constructed of heavy-gauge stainless
steel and are internally braced and urethane-foam-
insulated for rigidity. Door corners are of welded con-
struction and polished. Replaceable snap-in door
gaskets are self-adjusting, heavy-duty, magnetic type.
Door handles and hinges are chrome-plated and non-
corrosive. Hinges are spring loaded, heavy duty, self-
closing.
•Electric Condensate
• Heavy-Duty, Self-
Closing External Roll-
Out Drawers
• Wire Rod, Bun Tray
Racks
• Casters
3
/
" apart. Shelves are welded
4
1
/
" increments and a
2
