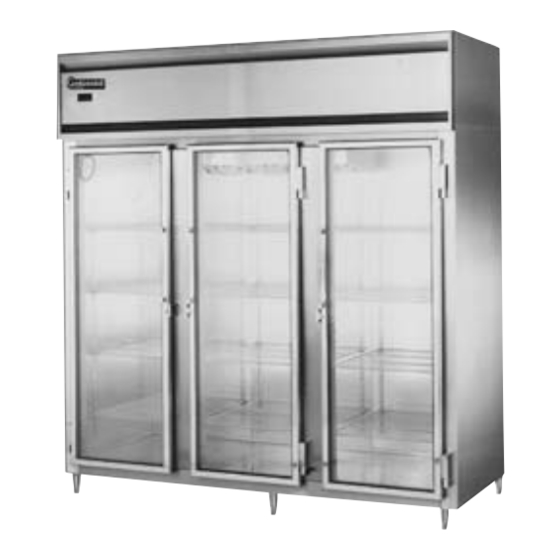

Continental Refrigerator DL1F-SS-GD Characteristics

DL1F-SS-GD* DL2F-SS-GD
Standard (S/S Front, Aluminum Ends & Interior)
•
Suffix SA (S/S Exterior, Aluminum Interior)
•
Suffix SS (S/S Exterior & Interior)
•
Models Available
• Half Door
• Remote
Refrigeration System
A "performance rated" air-cooled, hermetically
sealed, capillary-type refrigeration system is
installed on the top of each freezer. Plasticized fin
coil and air circulating fans are contained within a
concealed "plug"-type insulated housing, readily
accessible on the top of the cabinet and separate
from the food zone to increase food storage
capacity.The entire "plug" system is fully charged
with refrigerant and mounted on a sturdy steel,
rail-type base which can be easily removed if
refrigerator conversion is desired. Freezers are
designed to maintain 0 degrees fahrenheit (-18
degrees Centigrade) while operating with an unre-
stricted air supply in a maximum ambient temper-
ature of 100 degrees Fahrenheit . All condensate
water is evaporated by an automatic non-electric,
corrosion-resistant condensate evaporator. A
strict quality- assurance team inspects all materi-
als and components to certify that each model
conforms to the most exacting standards. All mod-
els are factory performance tested for a minimum
of 16 hours prior to crating.
FREEZERS
DL3F-SS-GD
• Pass-Thru
• Consult Factory
Cabinet Construction
All materials are of top quality, assembled to con-
form with strict quality-assurance requirements.
The cabinet front is constructed of heavy-gauge
polished stainless steel for durability. All cabinet
joints and seams are sealed vapor-tight. Case is
of all metal, welded construction and internally
supported and braced for a rigid unit construction.
Cabinet design eliminates overlapping panels with
raw edges. Cabinet body is insulated with non-
CFC, foamed-in-place polyurethane foam with an
average thickness of 3 inches to ensure increased
energy efficiency. Full-length louvered air grille
located above the doors allows equal air circula-
tion to the condensing unit. Easily removable, low
wattage, anti-sweat door heaters concealed by a
non-metallic, non-conductive, high-impact thermal
breaker strip eliminate condensate build-up on the
cabinet fronts. Fluorescent lighting is activated by
an easily accessible interior switch. Cabinets are
equipped with 6-inch adjustable stainless steel
legs.
DISPLAY
FREEZERS
Standard Features
• Modern, State-of-the-Art Styling
• Performance rated "Plug" Refrigeration System
Utilizing Environmentally Safe R-404A Refrigerant
Designed for (0ÞF) Cabinet
• 3" Non-CFC Polyurethane Foam Insulation
• Cam-Action Lift-Off Hinges
• Self-Closing Doors
• Magnetic Snap-In Door Gasket
• Cabinet Upper Side Panels And Refrigeration "Plug"
System Can Be Easily Removed And Reinstalled At
Job Site Where Space Limitations Are Confining
• Cylinder Lock In Each Door
• Automatic Hot Gas Condensate Evaporator
• Refrigeration System is Readily Accessible On Top
Of The Cabinet And Separate From The Food Zone
To Increase Food Storage Capacity
• Adjustable 6" Stainless Steel Legs
• Heavy-Duty, Epoxy-Coated Steel Shelves
• External Digital Thermometer
• Automatic Electric Defrost
• Triple-Pane, Tempered Hinged Glass Doors
• Fluorescent Interior Lighting
Shelving
Shelves are designed for heavy-duty use with
.306" diameter frame and brace members and
.140" diameter fill wires spaced 3/4" apart.
Shelves are welded steel and epoxy-coated for a
durable, long, rust-free service life. Adjustments
are in 1/2 inch increments and a wide door open-
ing allows the use of a variety of optional pan and
tray slide types.
Door Construction
Triple-pane, tempered glass is encased by a heat-
ed heavy-duty
Replaceable snap-in door gaskets are self-adjust-
ing, heavy-duty, magnetic type. Door handles and
hinges are chrome-plated and non-corrosive.
Doors are provided with built-in cylinder locks
which are keyed alike. Hinges are cam-action, lift-
off type featuring positive safety stop at 120
degrees.
aluminum extruded frame.
