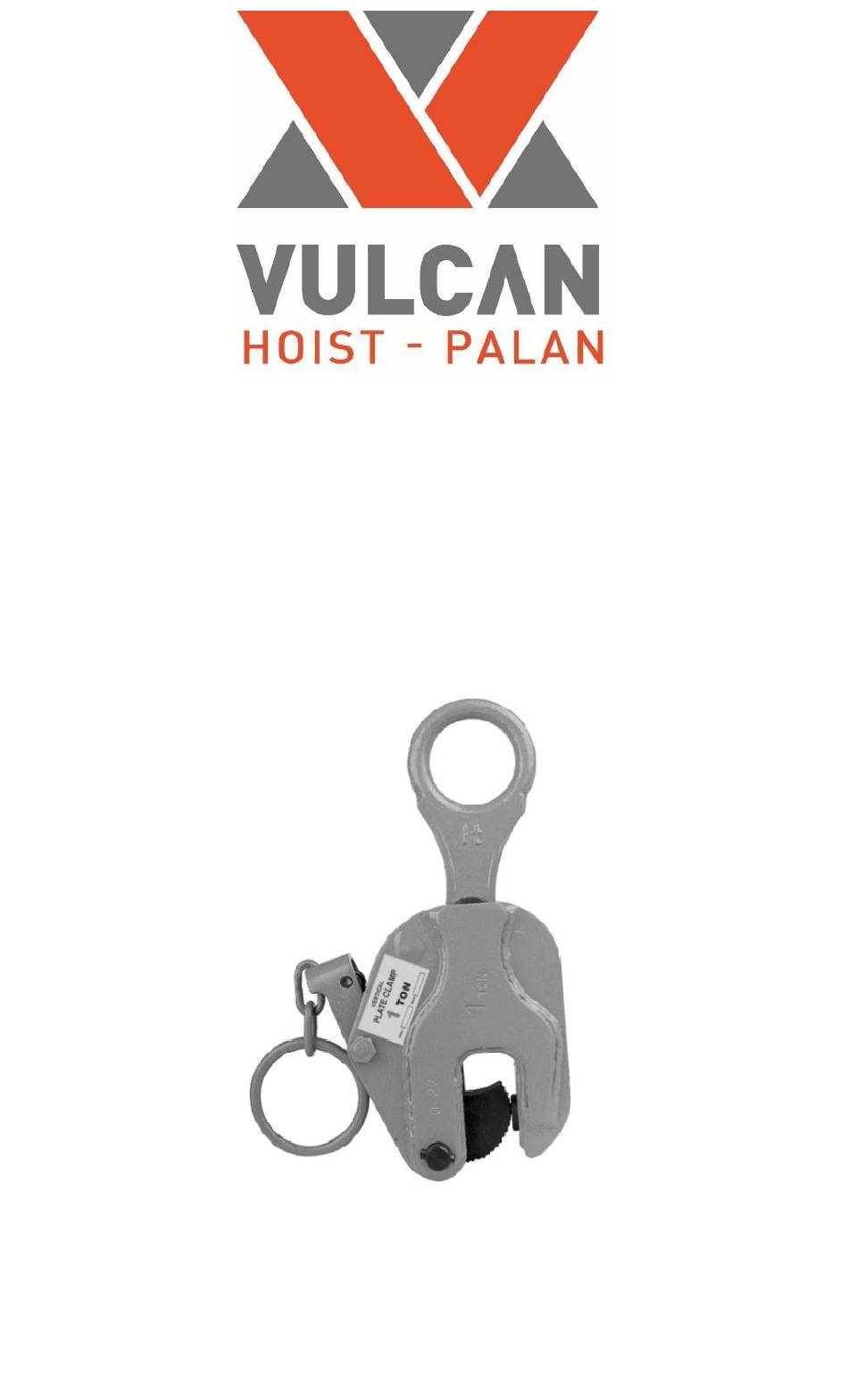

- Page 1 OPERATOR`S MANUAL NOVA JCD Universal Plate Clamp WARNING DO NOT INSTALL, USE OR REPAIR THIS EQUIPMENT BEFORE READING THIS MANUAL IN ITS ENTIERETY. FAILURE TO READ AND FOLLOW THE INSTRUCTIONS DESCRIBED IN THIS MANUAL COULD RESULT IN SERIOUS INJURY, DEATH AND/OR MATERIAL DAMAGES...
- Page 2 WARNING All persons involved in using, inspecting, maintaining or repairing this equipment must be thoroughly familiar with the contents of this manual and follow the recommended instructions and procedures to avoid injury or property damage. WARNING The equipment described in this manual is not designed to lift or move people nor to lift or move loads over people and must therefore not be used for such means.
- Page 3 Safety and Warnings Dangerous Practices to be Avoided DO NOT use the clamp before reading the manual DO NOT let an unqualified person use or repair the clamp DO NOT exceed the rated capacity of the plate clamp DO NOT user damaged or malfunctioning plate clamp DO NOT lift people nor carry loads over people DO NOT stay in the “fall zone”...
- Page 4 Installation and Operation ATTENTION Make sure the surface hardness of the plate is below 30 HRC / 300 Brinell. Make sure the plate weights at least 20% of the rated plate clamp capacity. If the above conditions are not met, the clamp may not grip properly.
- Page 5 Inspection ATTENTION The plate clamp must be inspected by the operator daily. If any deficiencies are noted, stop using the plate clamp until it is repaired or replaced. Daily Inspection Check for cracks or distortions in the structural frame, welds or mechanical components 2 Check for loose fasteners or other clamp components Verify the clamping mechanism operates properly, pay close...
- Page 6 Dimensions (mm) Model 220-260 250-295 296-360 350-420 Specifications Model Capacity (T) Test load (T) Jaw opening (mm) Weight (lb) 0-22 0-30 13.2 0-35 19.8 0-45 35.3 *In the tables above, T designates metric tons (2200lb)
- Page 7 Item Description Item Description Pulling Ring Washer Spring Spring Pin Spring Pin Link Shoulder Link Shoulder Shaft Bolt Plate Assembly Safety latch Jaw Holder Link Pin Lift Ring Jaw Shaft Bolt Bolt...
