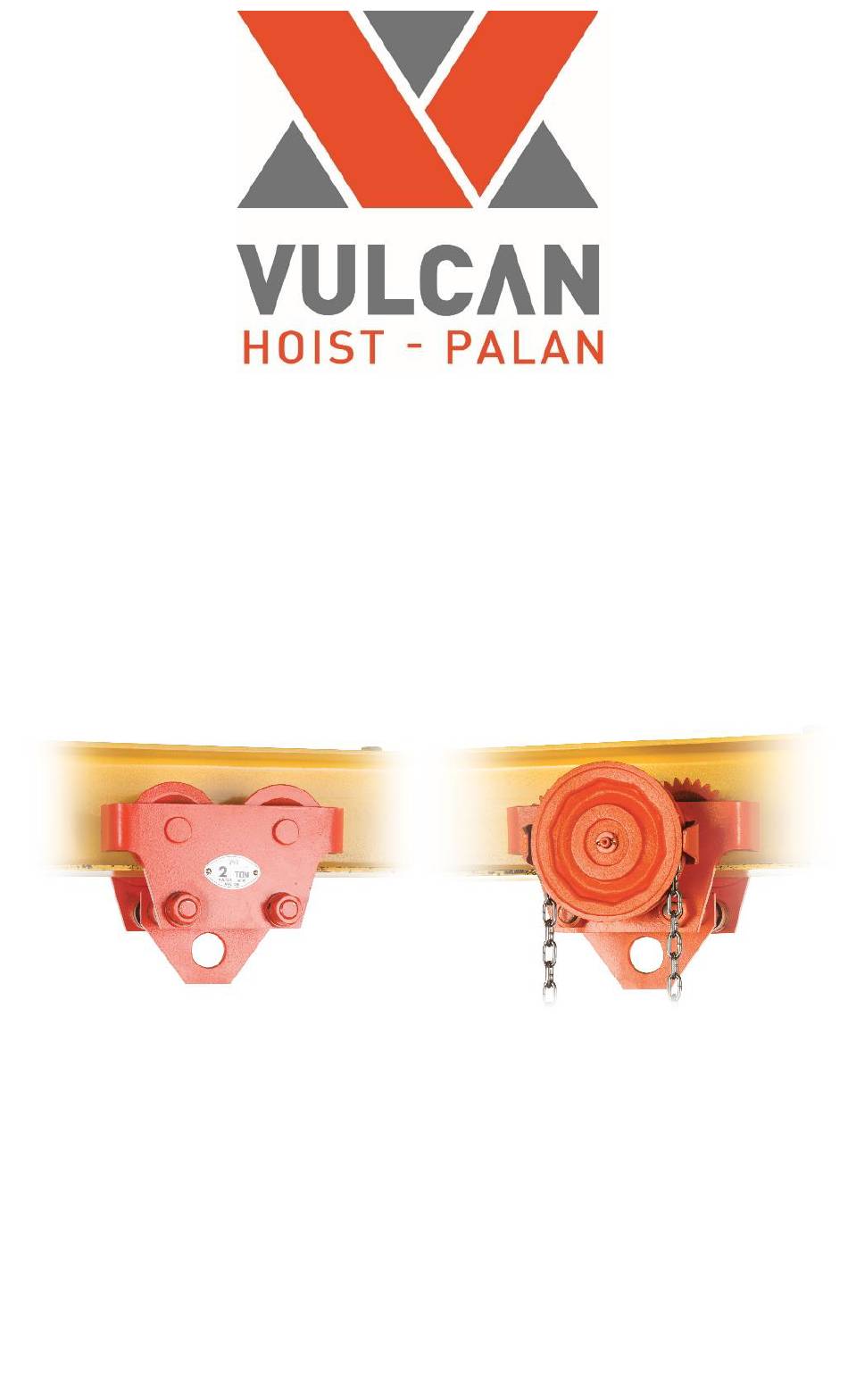

- Page 1 OPERATOR’S MANUAL VPT & VGT – Vulcan Push & Gear Trolley WARNING DO NOT INSTALL, USE OR REPAIR THIS EQUIPMENT BEFORE READING THIS MANUAL IN ITS ENTIERETY. FAILURE TO READ AND FOLLOW THE INSTRUCTIONS DESCRIBED IN THIS MANUAL COULD RESULT IN SERIOUS INJURY, DEATH AND/OR MATERIAL...
- Page 2 WARNING All persons involved in using, inspecting, maintaining or repairing this equipment must be thoroughly familiar with the contents of this manual and follow the recommended instructions and procedures to avoid injury or property damage. WARNING The equipment described in this manual is not designed to lift or move people nor to lift or move loads over people and must therefore not be used for such applications.
-
Page 3: Safety And Warnings
Safety and Warnings Dangerous Practices to be Avoided DO NOT use the trolley before reading the manual DO NOT let an unqualified person use or repair the trolley DO NOT exceed the rated capacity of the trolley DO NOT use the trolley to grab, secure or lift the load DO NOT use as a “below-the-hook”... -
Page 4: Installation
WARNING DO NOT attempt to modify this equipment or use it in a manner different than described in this manual. Use only Vulcan authorized replacement parts in the service and maintenance of this equipment. Failure to comply with the above limitations will void the warranty and may result in property damage, injury or death. - Page 5 Push model Gear model Stay bolt tightening torque Nm (ft-lb) VPT1/2T VGT1/2T 138 (102) 138 (102) VPT1T VGT1T VPT1.5T VGT1.5T 138 (102) VPT2T VGT2T 239 (176) VPT3T VGT3T 239 (176) 475 (350) VPT5T VGT5T WARNING DO NOT use the trolley unless the load plate is centered. Vulcan Push &...
- Page 6 ATTENTION When installing the trolley on curved beams, orient trolley with the gear wheels and the chain wheel on the outside of the curve. Refer to the table below for the minimum radii of curvature compatible with each model as measured on the inside of the curved beam.
-
Page 7: Operation
Operation Operation Procedures Prior to lifting, make sure the lift can be performed safely and the lift path is clear Ensure the beam is of suitable capacity for the load and will not be damaged by the trolley rolling on the flange Make sure the beam is fitted with stops at both ends to prevent the trolley from rolling off Make sure the load is properly centered below the trolley... -
Page 8: Inspection And Maintenance
Inspection and Maintenance ATTENTION The trolley must be inspected by the operator daily. If any deficiencies are noted, stop using the trolley until it is repaired or replaced. Suggested Daily Inspection List 1 Check for cracks or distortions in the structural frame, welds or mechanical components 2 Check for loose or missing fasteners or other components 3 Check if trolley rolls smoothly... - Page 9 Suggested Inspection Frequency Initial installation, re-installation, altered, Initial repaired or modified equipment Functional Beginning of each shift Normal service – monthly Frequent Heavy service – weekly to monthly Severe service – daily to weekly Periodic Normal service – yearly Heavy service – semi-annually Severe service - quarterly ATTENTION Keep the moving components clean and well lubricated to...
- Page 10 Vulcan Push & Gear Trolley 2020-02-05, rev1a...
- Page 11 Push Gear Weight model model (lbf) (lbs) (in) (in) (in) (in) (in) (in) (in) (in) (ft) (in) VPT1/2T VGT1/2T 1100 16 (25) 1.26 2.50 – 6.00 10.0 2200 23 (34) 1.38 3.00 – 5.50 10.0 VPT1T VGT1T VPT1.5T VGT1.5T 3300 29 (40) 10.2 1.57...
- Page 12 VPT1/2T VPT1T VPT1.5T VPT2T VPT3T VPT5T Vulcan Push & Gear Trolley 2020-02-05, rev1a...
- Page 13 Plain wheel asm Wheel pin Stay bolt Stay pipe Plain-side plate Adjustable collar Hanging plate Name plate Retaining ring Wheel pin nut Stay bolt nut Spring washer Vulcan Push & Gear Trolley 2020-02-05, rev1a...
- Page 14 VGT1/2T VGT1T VGT1.5T VGT2T VGT3T VGT5T Vulcan Push & Gear Trolley 2020-02-05, rev1a...
- Page 15 Plain wheel asm Gear wheel asm Wheel pin Stay bolt Stay pipe Plain-side plate Gear-side plate Adjustable collar Hanging plate Pinion shaft Pinion shaft metal Hand wheel Hand chain guide Hand chain Name plate Retaining ring Wheel pin nut Stay bolt nut Spring washer Pinion shaft bolt Spring washer...
