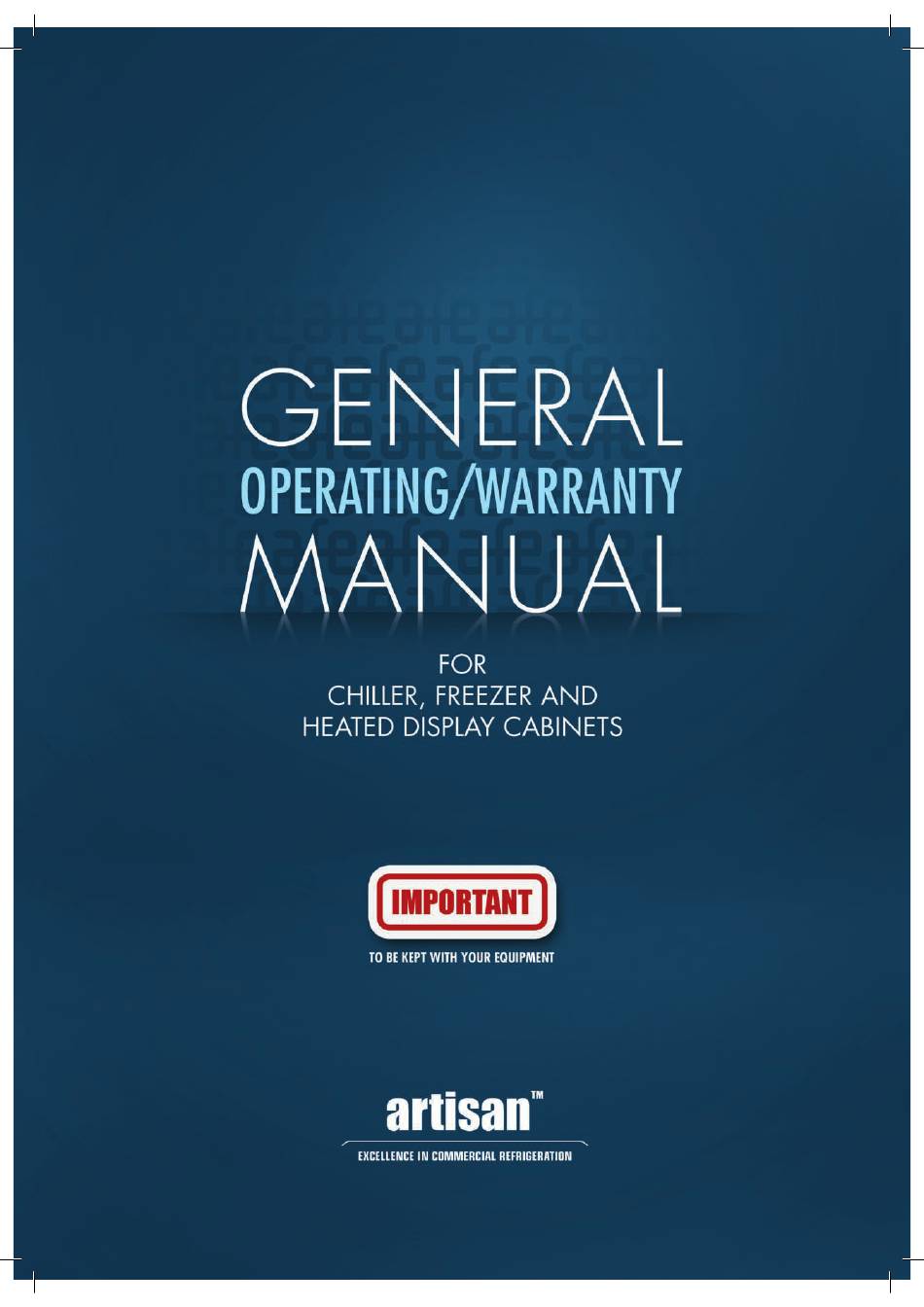

artisan RS-617S Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-617S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for artisan RS-617S

Summary of Contents for artisan RS-617S

  • Page 2 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS INDEX Blast Freezer controller instructions ............................... __________________________________________________________________________________________________________ Changing temperature ....................................__________________________________________________________________________________________________________ Chest Freezers ........................................__________________________________________________________________________________________________________ Chiller Upright Top-mounted controller instructions ....................__________________________________________________________________________________________________________ Chiller Upright Bottom-mounted and Underbench and Cake Chiller controller instructions ..........................
  • Page 3 ™...
  • Page 4 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS IMPORTANT SAFETY INFORMATION Compartments containing works, including sub-base areas, and/or motors, fans, elements, coils, etc., are to be accessed only by trained, qualified personnel. Cabinet must be plugged into a dedicated power outlet i.e.
  • Page 5 ™ START Always make sure cabinet is level and on suitable stable ground. Remove all packaging from cabinet. OPEN DOORS to allow cabinet to AIR. iii) Ensure suitable ventilation (see Ventilation). Set up shelves. Allow cabinet to sit for 1 hour. If cabinet has been turned on its SIDE for more than ½...
  • Page 6 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS Also every cabinet is fitted with a further 2 switches; which are:- STYLE I: ALL UPRIGHT TOP MOUNTED WORKS On/Off Button Heater (ie. Door Heater) Light STYLE II: ALL UNDER BENCH, CAKE DISPLAY AND BOTTOM MOUNT UNITS a) Heater or Moisture Free This button activates the heater wires in the...
  • Page 7 ™ VENTILATION To maintain efficiency in power and longevity of cabinet, suitable ventilation is imperative. On all upright cabinets with condenser a minimum of 300mm clear mounted on top space must be left above cabinet. In hot/ steamy conditions a further 50mm-100mm from rear of cabinet to wall may be nec essary.
  • Page 8 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 9 ™ WARNING: ENSURE CABINET IS DISCONNECTED/ UNPLUGGED FROM POWER SOURCE PRIOR CLEANING CLEANING Cleaning the condenser is very important and should be done at least once a fortnight (or more often depending on the environment). Failure to do so will shorten the life of the cabinet and will void warranty.
  • Page 10 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS With under-bench and cake displays, they have a removable screen that needs to be pulled out and washed in warm soapy water, dried and re-installed. You may also need to clean the condenser fins as well. Door gaskets should be cleaned once a week with mild soapy water followed by a fresh rinse.
  • Page 11 ™ SETTINGS The ‘cut out’ or lower set point temperature can be changed. CHANGE a) On all top mounted cabinets: RS617S, RS815, LCF411 AND LF311 Press the Set button for 5 seconds. The orange light will go to ‘Temp Set’.
  • Page 12 FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS Any other parameter changes should only be made ✽ with permission from Artisan Food Equipment or a fully qualified refrigeration mechanic. Remember all cabinets have a 4°C differential and all cake displays have a 3°C differential.
  • Page 13 ™ TROUBLE SHOOTING ALL TROUBLE SHOOTING/MAINTENANCE MUST ONLY BE DONE WHILST POWER IS TURNED-OFF AT SOURCE. Problem: Cabinet is not working and compressor is cool/ cold. Possible Dirty condenser; not enough ventilation to cabinet causes: or room; condenser fan failed; capillary blocked.
  • Page 14 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS Problem: Cabinet not maintaining correct temperature Possible Check thermostat is set correctly; may have just Causes: come out of defrost; check evaporator for ice; dirty condenser; door not closed. Action: If ice is on the evaporator press the auto defrost button as shown.
  • Page 15 ™ Problem: Water in cabinet or on floor Check condensate hose is securely in black Possible condensate tray at bottom rear; heater wires causes: on frame or door not on; blockage in evaporator tray. Secure condensate hose, check Solution: evaporator tray for any blockage (for example ice, insects etc.) and if dripping off doors...
  • Page 16 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS LOCKING DEVICE Pull locking lever out Place lock plate over locking lever Place padlock (supplied by yourself) through hole iii) in locking lever...
  • Page 17 ™ HEATED All Heated equipment is designed for display purposes only. Therefore all product must be pre-heated to correct temperature PRIOR to placement in the display cabinet. DISPLAY All cleaning, maintenance, temperature changing (ii) CABINETS etc. must be done only when power is disconnected from power source i.e.
  • Page 18 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS Turn knob on dial to new setting. Never set higher than 75°C. Only adjust dial that is not siliconed. DO NOT remove or adjust siliconed dial. Always have unit checked at least YEARLY by qualified (vi) technician to ensure good working order.
  • Page 19 ™ CHILLER CONTROLLER CONTROLLER INSTRUCTIONS FOR UPRIGHT TOP-MOUNT WORKS CHILLER RS-617S Button Instruction Panel parameter lock Manual defrost / Stop defrost Same as right side, item Hold for 5 seconds. User’s parameter option Panel parameter lock Hold for 3 seconds to enter Hold for 3 seconds.
  • Page 20 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS RS-617S Operational Manual 5INSLL20584 1. CAUTION 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment.
  • Page 21 ™ 3.7 Functions and Indicators: Function Temp. Set Temp. Operation Defrost Set point (indoor) Temp. Discrepency Operation cycle Defrost period Probe calibration (indoor) Compressor delay protection Max. temp. Set point (indoor) Min. temp. Set point (indoor) 3.8 Parameter table: Function Min.
  • Page 22 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 23 ™ RS-617SE; RS-617SAE Operation Manual 5INS00689 1. CAUTION 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment. 1.3 To prevent the controller burning out, please make sure the water-proofed procedure is undertaken during installation.
  • Page 24 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS 4. COMPRESSOR ≥ ≤ 4.1 When indoor temp. (tS + td). compresssor turns ON. When indoor temp tS, compressor turns OFF. 4.2 After the compressor turns off, the compressor protection time “AC” starts to count. After the compressor protection time is reached, the compressor could be re-started again.
  • Page 25 ™ 10.3 Defrost : Flashing during defrosting and OFF when non-defrost. 10.4 Power : The indicator is ON when the power is OFF; and the indicator is OFF when the power is ON. Function Default Description tS Setpoint (indoor temp.) 5°C...
  • Page 26 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 27 ™ FREEZER CONTROLLER CONTROLLER INSTRUCTIONS FOR UPRIGHT TOP-MOUNT WORKS FREEZER RS-815 Button Instruction Panel parameter lock Manual defrost / Stop defrost Same as right side, item Hold for 5 seconds. User’s parameter option Panel parameter lock Hold for 3 seconds to enter Hold for 3 seconds.
  • Page 28 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS RS-815 Operational Manual 5INSLL20583 1. CAUTIONS 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment. 1.3 To prevent the controller burning out, please make sure the water-proofed procedure is undertaken during installation.
  • Page 29 ™ 3.10 Functions and Indicators: Function Temp. Set Temp. Operation Defrost Set point (indoor) Temp. Discrepency Operation cycle Defrost period Defrost stop temperature Probe calibration (indoor) Compressor delay protection Fan start temp. (Evaporator) Max. temp. Set point (indoor) Min. temp. Set point (indoor) 3.11 Parameter table:...
  • Page 30 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 31 ™ RS-815E; RS-815AE Operation Manual 5INS00688 1. CAUTION 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment. 1.3 To prevent the controller burning out, please make sure the water-proofed procedure is undertaken during installation.
  • Page 32 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS 3.9.4 Under the parameter locked, the settings cannot be modified, except for tS (temperature setting). 4. COMPRESSOR ≥ ≤ 4.1 When indoor temp. (tS + tD), compressor turns ON. When indoor temp tS, compressor turns OFF.
  • Page 33 ™ 9.4 When the indoor temp. is locked, the indoor temp detection < temp setting “tS” + temp difference “td”, the Indoor Temp. Lock would be unlocked immediately. 9.5 When the indoor temp lock “tL” finished, it will unlock. The function of indoor Temp Lock stops until the indoor temp detection <temp.
  • Page 34 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS 12. ERROR CODE: 12.1 EE: Memory is failure. (Press to restore the default values, and then resupply the power. If it still not work, please send back to factory for inspection). 12.2 E1: Indoor temp.
  • Page 35 ™ MICRO-PROCESSOR TEMPERATURE CONTROL CONTROLLER INSTRUCTIONS FOR, UNDERBENCH CHILLERS, BOTTOM MOUNT CHILLERS & CAKE FRIDGES RS-411E 1. CAUTIONS 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment.
  • Page 36 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS RS-411E Operational Manual 3.1.8.3 If no more command is given within 5 seconds or press [ SET ] button, parameter will be saved automatically and return to indoor temperature showing. 3.2 Function: 3.2.1 Operation of compressor: 3.2.1.1 When indoor temperature ≤...
  • Page 37 ™ R S-411E Operational Manual 3.2.7 Set point temperature alarm: You can adjust “HS” and “LS” to restrict set point temperature range to avoid set point temperature excess the range of compressor ability or to cause over temperature by setting mistaken.
  • Page 38 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 39 ™ MICRO-PROCESSOR TEMPERATURE CONTROL CONTROLLER INSTRUCTIONS FOR, UNDERBENCH CHILLERS, BOTTOM MOUNT CHILLERS & CAKE FRIDGES LCF-411-RS+LDS-103 PANEL TECHNICAL DATA Power supply 85V~265V/AC/50~60HZ Temperature range -50˚C~+80.0˚C _________________________________________ _________________________________________ Display Seven segment LED Working temperature -15˚C~+70˚C _________________________________________ _________________________________________ Mounting Snap-in Accuracy ±1˚C...
  • Page 40 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS OPERATION SYSTEM PARAMETER SETTING A. System parameter setting Press [SET] key, the display flashes pattern “888”, then shows the symbol of the first system parameter “tS”, this means the controller entering the parameter modifying phase, can press [▲] or [▼] key to choose other parameters(“td”...
  • Page 41 ™ WIRING DIAGRAM ★ Room Sensor [black wire] need to connect to PIN 1 for ground purpose.
  • Page 42 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 43 ™ REFRIGERATION SYSTEM CONTROLLER CONTROLLER INSRUCTIONS FOR UNDERBENCH FREEZERS & BOTTOM-MOUNT FREEZERS RS-311E 1. CAUTIONS 1.1 Before wiring, please make sure that power is switched off to prevent from getting electric shock. 1.2 The product should be avoided to install at humid environment.
  • Page 44 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS RS-311E Operational Manual 3.1.8.3 If no more command is given within 5 seconds or press [ SET ] button, parameter will be saved automatically and return to indoor temperature showing. 3.2 Function: 3.2.1 Operation of compressor: 3.2.1.1 When indoor temperature ≤...
  • Page 45 ™ 3.2.5 Indoor temperature compensation: Showing temperature = indoor detective temperature + probe calibration (“Ot”). 3.2.6 Temperature alarm: 3.2.6.1 When indoor temperature is higher than “AU” (UA/indoor temperature alternant glisten) or lower than “AL” (La/indoor temperature alternant glisten), it starts to calculate the alarm delay (“Ad”), after delay protection ends, the alarm starts...
  • Page 46 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 47 ™ CONTROLLER INSTRUCTIONS FOR BLAST FREEZER TL5-66E 1. PRODUCT: 2. PARAMETERS LIST: Para Operating mode Range Default Metro Set Point -50°C ~ +50°C -20°C Differential 1°C ~ 25°C 3°C Minimum set point -50°C ~ dl -30°C Outputs activation delay at start up 0 (min.)
  • Page 48 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS 4. INSTRUCTIONS : Increase S : For entering values and displaying set points [▲] : Decrease O : Manual defrost [▼] 4.1 Significations of the L.E.D. ❄ ❄ ❄ Two lights flashing at the Status Flashing same time...
  • Page 49 ™ CHEST FREEZERS The top light means the temperature is high i.e. above 0°C The lower green light means the unit is plugged into power and there is power to the unit. When the Dial ‘Thermometer’ is on the Blue Numbers this means a minus number (less than 0˚C).
  • Page 50 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS...
  • Page 51 WARRANTY FOR HEATED & REFRIGERATED SHOWCASES RETAIL WARRANTY This warranty is only available to the end-user of the equipment who has brought the equipment directly from Artisan Food Equipment. Further, this warranty is only available to the original purchaser of the equipment.
  • Page 52 GENERAL OPERATING/WARRANTY MANUAL FOR CHILLER, FREEZER AND HEATED DISPLAY CABINETS IMPORTANT RESPONSIBILITIES OF CABINET OPERATORS Correct and consistent power supply ➤ No direct sunlight on units ➤ Product to go into cabinet at desired holding temperature ➤ Max. ambience: 40°C & 60% R.H. – unless otherwise advised or stated on cabinet. ➤...
  • Page 53 ™ TERMS AND CONDITIONS OF QUOTATION/SALE AND/OR SUPPLY ARTISAN™ FOOD EQUIPMENT PTY LTD These Terms and Conditions of Sale apply (unless otherwise previously agreed in writing) to this contract and all sales contracts, and all hire, loan and supply contracts and/or arrangements with the customer. An acceptance of an order by us is and shall always be deemed to be an acceptance of these Conditions of Sale by us and the customer, notwithstanding any consistency which may be introduced in the customer’s order of acceptance.

This manual is also suitable for:

Rs-617seRs-617saeRs-815Rs-815eRs-815aeRs-411e ... Show all
