Bikecomm BK-S2 Operation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

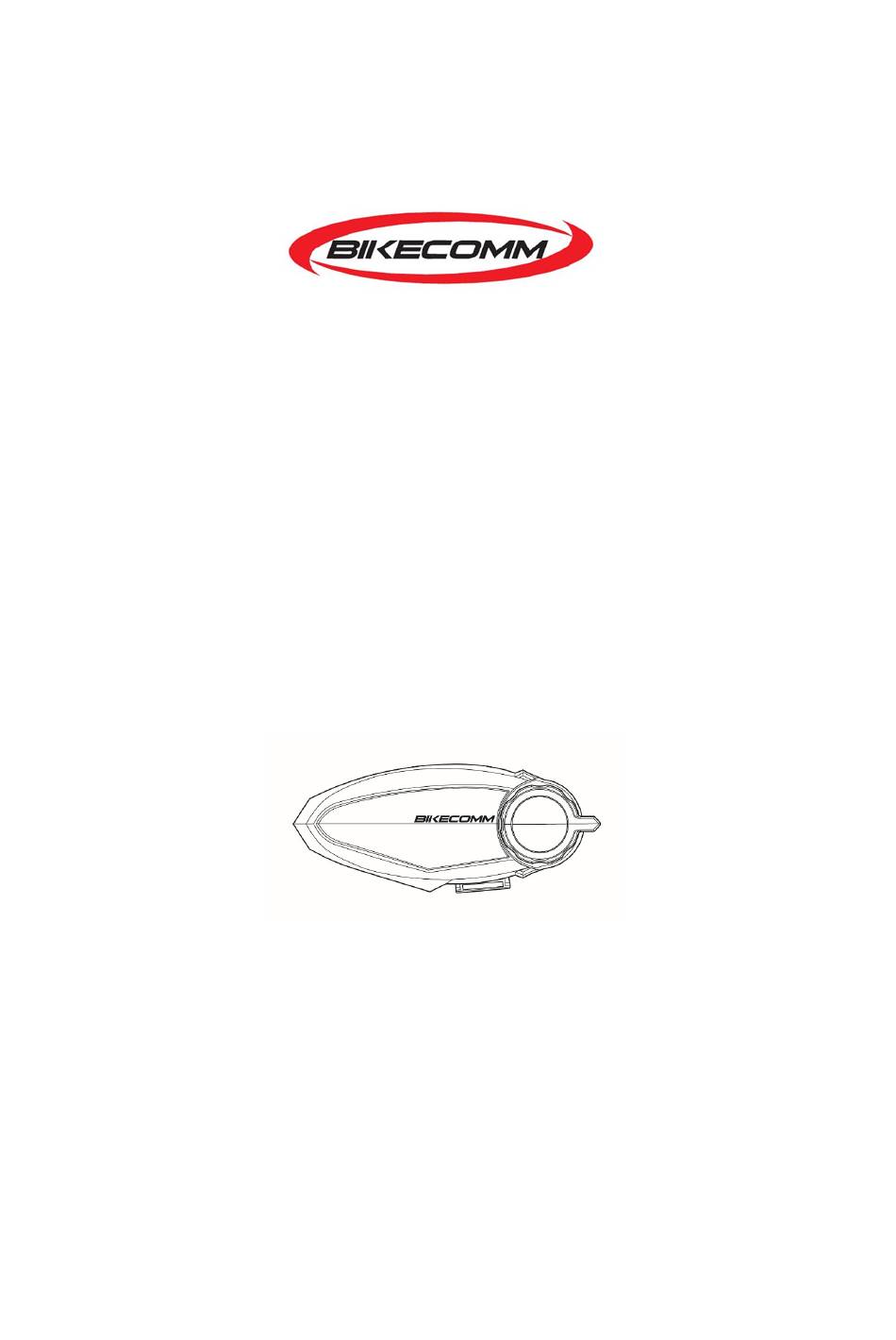

BK-S2 Bluetooth Headset
Operation Manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK-S2 and is the answer not in the manual?

Questions and answers

Related Manuals for Bikecomm BK-S2

Summary of Contents for Bikecomm BK-S2

  • Page 1 BK-S2 Bluetooth Headset Operation Manual...

  • Page 2: Table Of Contents

    12-2 Six headsets paired for Instant link mode .................... 15 13 Headset intercom for instant link mode and dual music chatting mode ..........16 14 To pair and operate BK-S2 headset with headsets of other makers ....錯誤! 尚未定義書籤。 14-1 Pairing procedures: ....................錯誤! 尚未定義書籤。...
  • Page 3 16 Clear pairing data/ Reset for troubleshooting ............錯誤! 尚未定義書籤。 17 BK-S2 voice prompt list ............................. 19...

  • Page 4: Safety Remarks

    0. Safety remarks: -Please read the following safety remarks to correctly use the product and to avoid possible severe injury, death, and/ or asset loss. Use of product -Please read the following notices to avoid injury to the body or damage to the product. Warning: -To use the product at a high volume for a long period of time may damage your ears and hearing.
  • Page 5 F E D E R A L C O M M U N I C A T I O N S C O M M I S S I O N I N T E R F E R E N C E S T A T E M E N T T h i s e q u i p m e n t h a s b e e n t e s t e d a n d f o u n d t o c o m p l y w i t h t h e l i m i t s f o r a C l a s s B d i g i t a l d e v i c e , p u r s u a n t t o p a r t 1 5 o f t h e F C C R u l e s .
  • Page 6 T h e e x p o s u r e s t a n d a r d e m p l o y s a u n i t o f m e a s u r e m e n t k n o w n a s t h e S p e c i f i c A b s o r p t i o n R a t e , o r S A R .

  • Page 7: Package Contents

    1 Package contents Contact the dealer for any missing items.

  • Page 8: Product Details

    2 Product details 3 Installation of Speakers /Microphone /Headset Fixture Note: Clean the area with a cleaning wipe before applying the adhesive pads. 3-1 Speaker installation There are two cables for USB Type C. The longer one is for the speaker on the right and the short one is for the speaker on the left.

  • Page 9: Microphone Installation

    3-2 Microphone installation 3-2-1 Microphone for 3/4 face helmet 3-2-1.1 Remove the paper on the microphone pad, and attach it to the velcro pad inside the left side of the helmet. 3-2-1.2 Put back the inner lining. 3-2-1.3 Move the microphone white triangle spot toward the mouth position. 3-2-1.4 Follow the arrow sign to connect the USB Type C microphone cable (yellow connector) with the 3/4 open face helmet microphone connector (yellow connector).

  • Page 10: Headset Layout

    3-3-1.2 Fix the headset: Insert the two raised tenons in the back of the headset into the two holes of the fixture and slide down to secure the headset tightly. 3-3-1.3 Remove the headset: Push the headset upwards to remove the headset from the fixture. 3-3-2 USB Type C speaker and microphone cable 3-3-2.1...

  • Page 11: Power On/Power Off/Charge

    Button Function Adjust volume/ select previous or next track Activate intercom/ stop intercom BT device pairing/mobile phone operation/Play music/Pause music USB Type C Connect to speaker and microphone cable, and is also for charging the battery LED indicator Panel The standard panel is black. Other colors are optional purchases. Reset Remove the panel to access the headset reset button.

  • Page 12: Adjustment Of Voice Prompts And Headset Audio Volume

    Charge: Use the USB Type C charging cable with a commercially available DC 5V adapter to charge the headset. The LED flashes red while charging and it flashes blue when the charging is completed. The full charging time takes about 2.5 hours. Note: The USB Type C charging cable does not support fast charging devices.

  • Page 13: Pairing With Other Bt Devices (Hfp Device)

    phone, enter 0000. 7-1-3 After the pairing completes, a voice prompt “Bluetooth device is paired.” is played and the LED flashes blue slowly. 7-1-4 To cancel the pairing operation, press the M button for 2 seconds. 7-1-5 If the connection between the headset and mobile phone is lost, press the M button once to resume the BT connection.

  • Page 14: Phone Answering Mode Operation

    4 times to dial the second phone number and 5 times to dial the third phone number. (Link to www.openroad.com.tw to download BK-S2 Tool) 8-1-7 Answering incoming calls automatically: After the call rings for 8 seconds, the call will automatically be answered.

  • Page 15: Instant Link Mode

    BK-S2 tool downloadable from www.openroad.com.tw. Note: These BT devices need to support HFP format, such as the Garmin zumo series. 12 Instant Link mode There can be a maximum of 6 headsets paired together for intercom in instant link mode. No matter what is the number of headsets to be paired, the pairing procedure is all the same.

  • Page 16: Headset Intercom For Instant Link Mode And Dual Music Chatting Mode

    14 To pair and operate BK-S2 headset with headsets of other makers BK-S2 headset can pair and intercom with other headsets. 14-1 Pairing procedures: 14-1-1 With the BK-S2 headset powered on, press the A button to enter pairing status.

  • Page 17: Intercom Procedures

    BK-S2 Tool App to adjust the settings. 15-1 BK-S2 Tool Program for computer 15-1-1 Connect BK-S2 to the computer via USB cable. Open the BK-S2 Tool and select COM Port. 15-1-2 Speed dial setting: Input 3 phone numbers for speedy dialing.
  • Page 18 15-2-1.2 Press and hold the headset A button and press the M button quickly 3 times to activate mode. After activation the LED flashes green 3 times. 15-2-1.3 In the App, pull down to “Scan for devices,” locate BK-S2 , and click “Agree to pair.” 15-2-1.4 To adjust the necessary settings in BK-S2 in the Tool App.
  • Page 19 17 BK-S2 voice prompt list State Voice Prompt beginning Voice Prompt ending Battery Charge “Battery Charge” “Full” “Above 80%” “Above 50%” “Low approaching 25%” “Critical 10%” “Warning, Low battery” Pairing “Bluetooth Device is paired” (for intercom Headset) “Headset is paired”...
