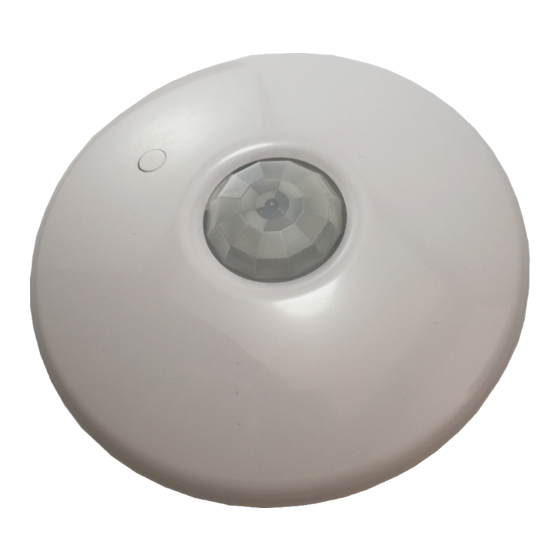

Detech DtSpot360-WL Instructions

DtSpot360-WL
Dual technology wireless
sensor 868 Mhz
INSTRUCTIONS
CHARACTERISTICS
- Adjustable sensitivity of detection.
- Antiflickering technology.
- Microstrip microwave with pulsed emission
- Fresnell lens 18 fasci on 4 levels.
- Installation height: up to 4 meters
- 180° coverage
- Absorption at rest 26 uA.
- Power supply: 3,6v- n.1 lithium battery 3v6
mod. ER14505 wired AA 2,4Ah.
- 3 years of autonomy (at standard use).
- Radio Freq. 868MHz-FM bidirectional.
- Tamper protection.
- Wireless supervision.
- Display of the battery life.
- Detection bulk ( 2 minutes) when the system
is off, absent when the system is on.
The DtSPOT offers the advantage of two
different sensitivity levels, which allow you to
chose di the best one for the place you need
protection on, obtaining the best ratio between
maximum capacity and minimum possibility of
wrong signaling
DeTech srl
ATTENTION: Before every trial, link the
sensor to the receiver.

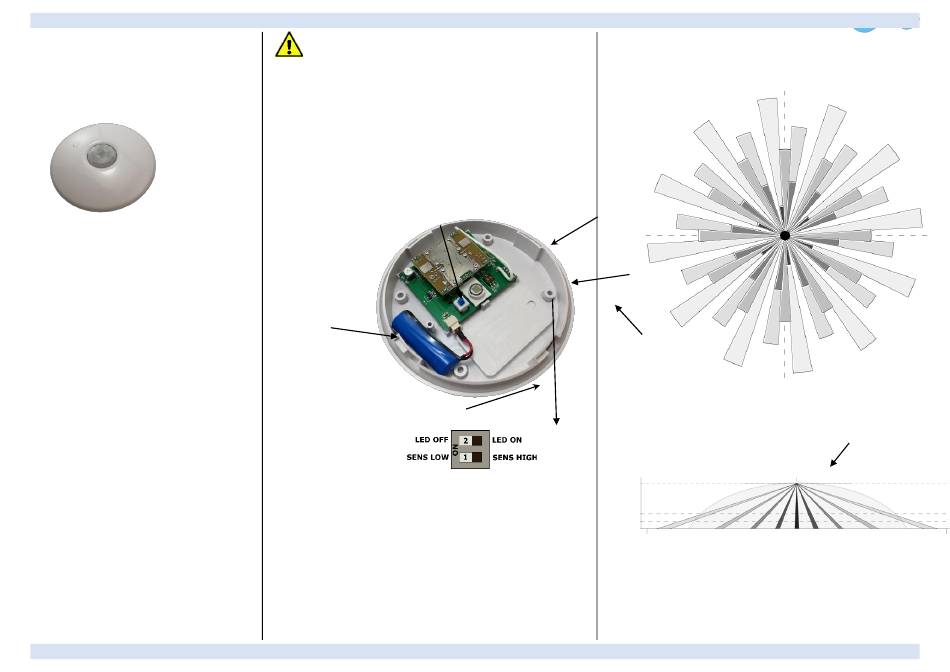

Guida all'installazione
DtSPOT has a 360° coverage and needs to be installed on the ceiling, in the
middle of the area you want to protect. Its cover zone has a diameter that
is double its height. Ex: if placed at a 3 mt height, the diameter it covers
will be of 6 mt, enough to protect an area of 36 m^2.
Open the sensor, turning the upper li clockwise
Preforatura
fissaggio
Preforatura
serraggio
frontale
Preforatura
fissaggio
Dip1 Pos OFF LED ON
Displaying is enabled when the GREEN LED is on, the alarmi s received
correctly
Dip1 Pos ON LED OFF
Disabled displaying
Dip3 Pos OFF SENS HIGH
Standard sensibility
Dip3 Pos OFF SENS
Low sensibility, best for areas with environmental instability
DTSPOT 31 10 2018
Preforatura
fissaggio
Antenna
Preforatura
fissaggio
4 m
0 m
2 m
6 m
Microwave
3 m
3 m
0 m
[Digitare qui]
6 m
