Instruction Manual
TA-700
Pick-Up Arm
08.06.2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TA-700 and is the answer not in the manual?

Questions and answers

Related Manuals for Acoustic Signature TA-700

Summary of Contents for Acoustic Signature TA-700

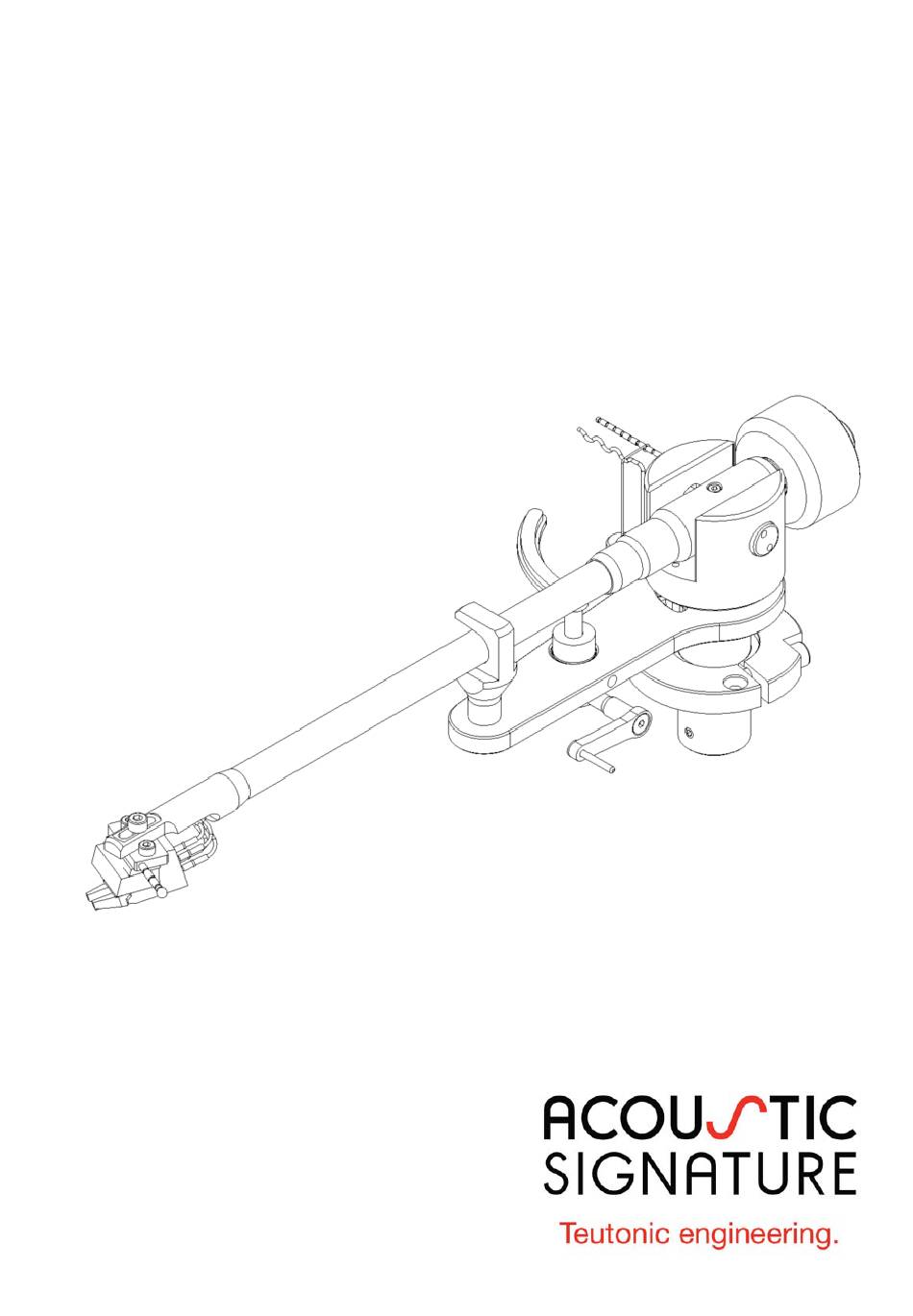

  • Page 1 Instruction Manual TA-700 Pick-Up Arm 08.06.2017...
  • Page 3 Parts identification Anti Skate Lever Balance Weight Armlift Armrest VTA Screw Armtube Lift Cartridge lock screw’s Headshell Headshell moving screw Audio cable Cartridge Mounting plate...
  • Page 4 1. Preparing the arm mounting board To mount the TA 700 tonearm your turntable need´s to have a 23mm thru hole combined with 3 M3 thread´s around it at the Radius of 20.5mm (see drawing). Rega Dimension. SME versions are also offered. Ensure that the thread´s are positioned as showed in the drawing.
  • Page 5 5. Prepare adjusting the cartridge Before we start aligning the cartridge we we need to pre adjust the Tracking force and the height of the tonearm. Tracking force will be adjusted by turning the counter weight forward (more weight) or backward (for less weight). Search the manual of your cartridge for the right value and adjust it by using a weight scale (not provided).
  • Page 6 6.2 Adjusting the cartridge Make sure to use it in the exact orientation as shown in the pic. This ensures your template is in the correct angle for adjusting the cartridge....... . . 6.3 Adjusting the cartridge Lift down the cartridge and place the diamond tip of the cartridge on the reference point of the alignment gauge and make sure that...
  • Page 8 Acoustic-Signature Made by AS-Distribution GmbH Hillenbrand Straße 10 D-73079 Süssen Tel: +49 7162 9474450 Fax: +49 7162 9474459 www.acoustic-signature.com E-Mail: info@as-distribution.de...
