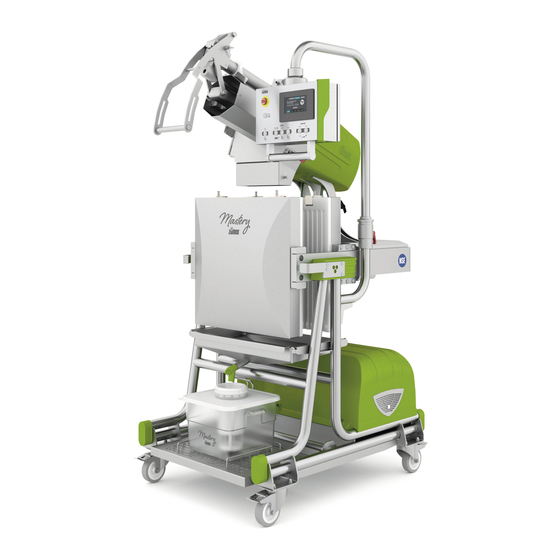

ZUMEX Mastery Dismantling, Cleaning And Maintenance Manual

Mastery dismantling, cleaning and maintenance guide
Cleaning and sanitizing warnings
!
The following document will guide you on the systematic process both to keep your machine in the best conditions.
For the cleaning and dismantling process, we must provide safety tools, such as gloves and goggles to avoid damage.
We determine what is the cleaning that must be done according to the frequency:
• Cleaning for each practice.
• Cleaning for the end of the day.
• Biweekly cleaning.
• Monthly cleaning.

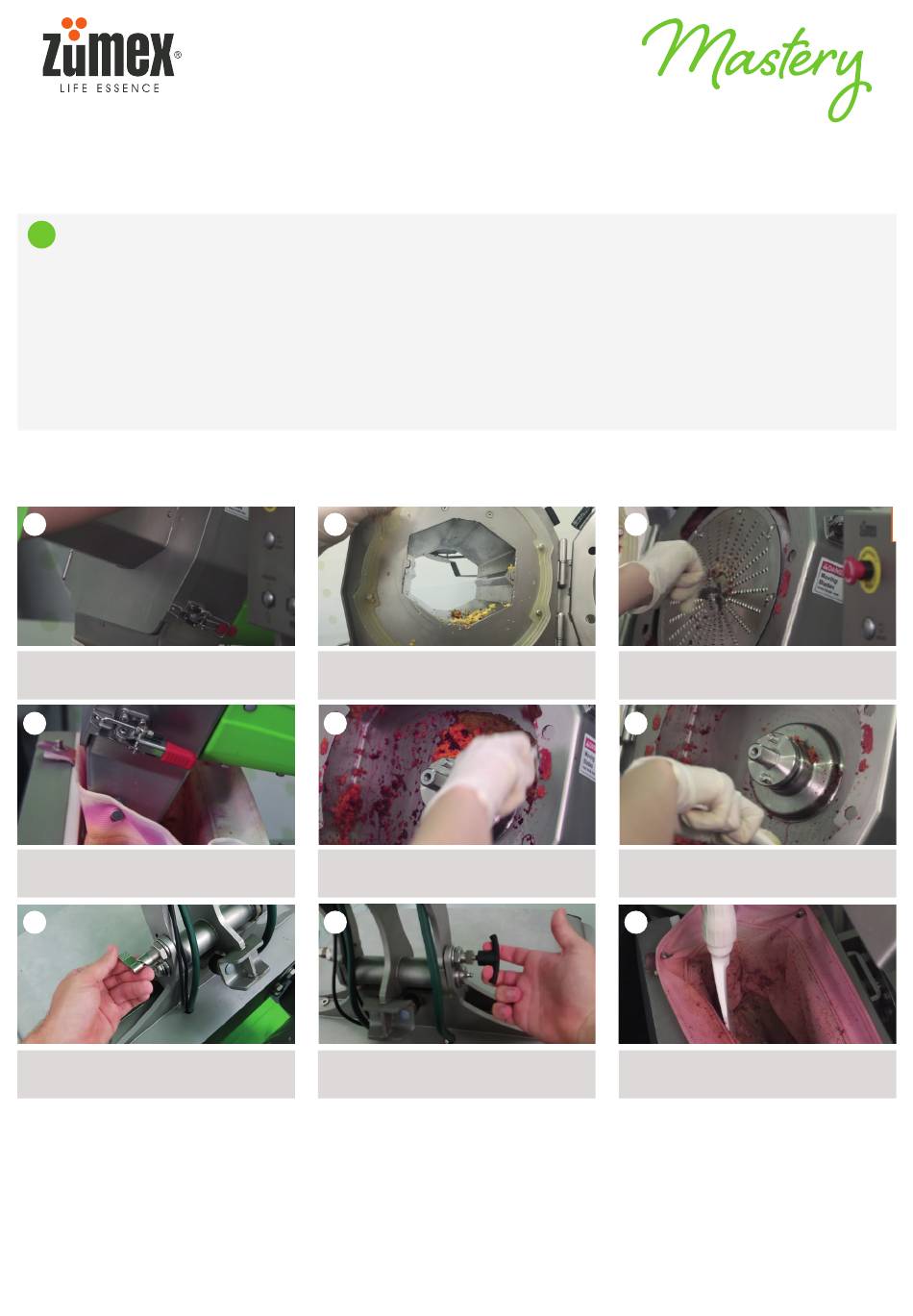

Dismantling and cleaning for every use juice recepit
1
We stop the machine. We open the shredder
door, opening each one of the closures.
4
We place the filter bag in the header shred-
der and in the back side.
7
Unlock the feeding hooper through the loc-
ker, placing from right to left.
*
Do not lose the central clamping nut.
** It is only necessary to perform this action once finished the operation or when changing the recipe.
Zumex Group S.A. Tel. +34 961 301 251 · Fax. +34 961 301 255 · zumex@zumex.com · Zumex Service Tel: +34 960 800 999 ·
2
We remove it the gasket and place it in a
wash point.
5
We remove the pulp from the pulp box, ha-
ving previously checked that the filter bag is
**
in its correct position.
8
On right side, move the locker towards you
and up the head shredder.
3
Disassemble the disc shredder support to-
gether with the shredder blade, turning the
central torque - turn to the right.
6
We take one of the cleaning brush with the
supplied brush 1 to descale the fruit adhered
both in the machine and in the accessories.
9
!
Open the pulp box and move the content in
order to ease the waste discharge.
*
