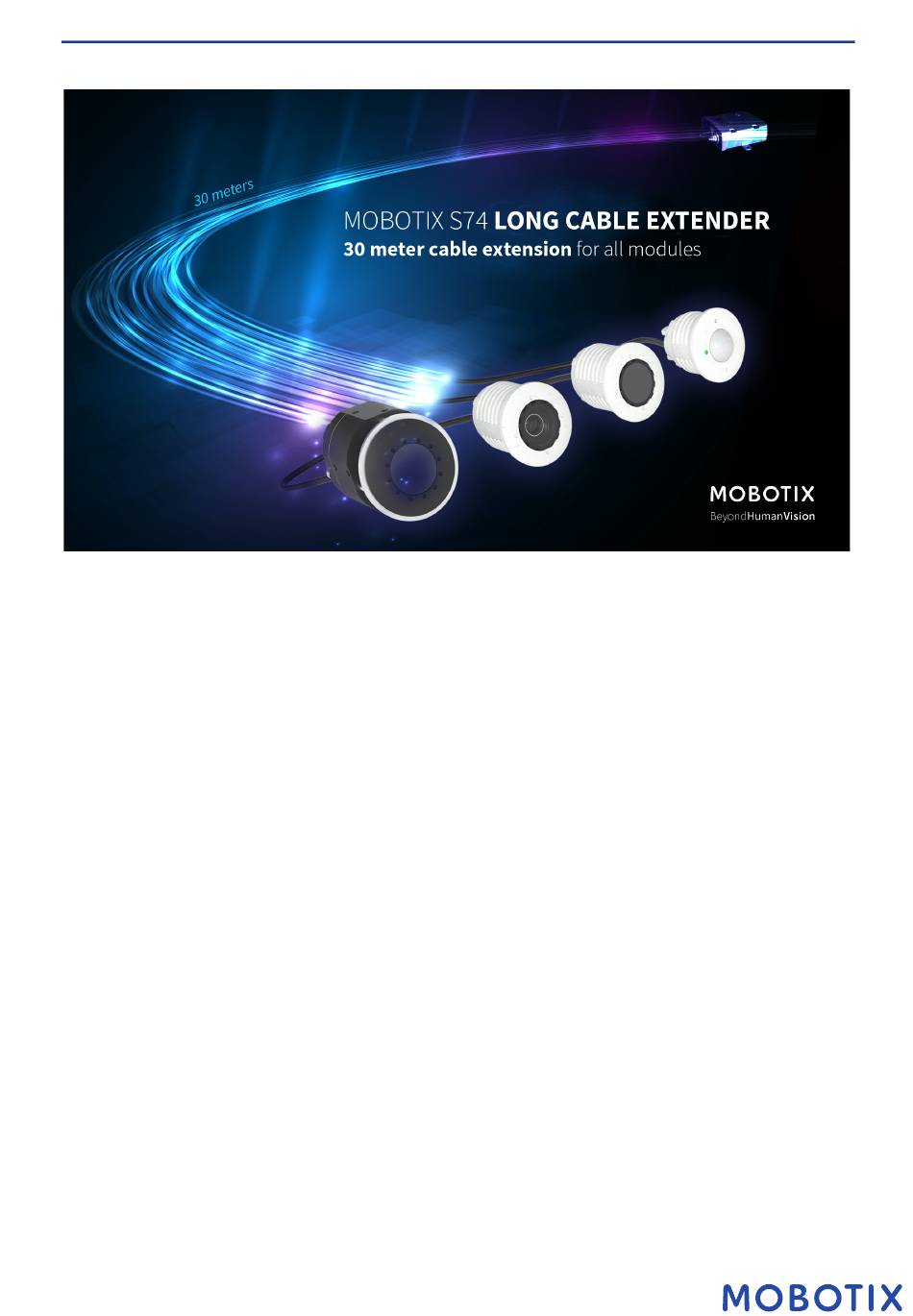

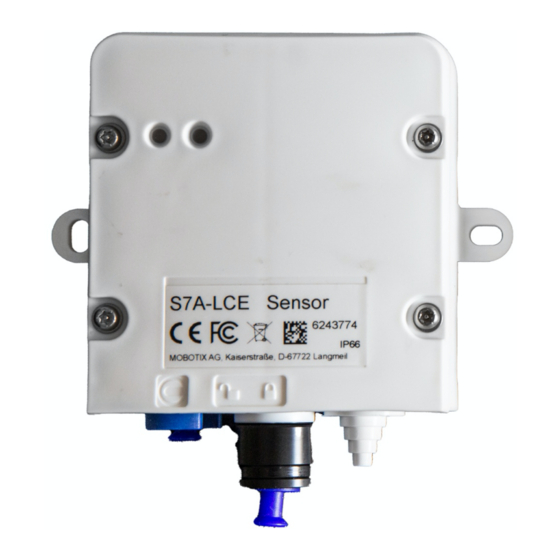

MOBOTIX Long Cable Extender
Quick Installation Guide
Bridges even long distances. IP66. Up to 30 frames/second 4K image transfer rate.
With the Long Cable Extender Set, which consists of two compact and weatherproof connection
boxes, all sensor modules offered for the S74 (4K, 4MP UltraLowlight, Thermal) and for the
function modules MultiSense and IR illuminator can be positioned with additional 30 meters
distance from the camera housing.
© MOBOTIX AG www.mobotix.com Vertraulich / Confidental * MERGEFORMAT
2107_QI_S74 Long Cable Extender_en.docx • 01.09.21 • Seite/Page 1/ 6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S74 and is the answer not in the manual?

Questions and answers

Related Manuals for Mobotix S74

Summary of Contents for Mobotix S74

  • Page 1 With the Long Cable Extender Set, which consists of two compact and weatherproof connection boxes, all sensor modules offered for the S74 (4K, 4MP UltraLowlight, Thermal) and for the function modules MultiSense and IR illuminator can be positioned with additional 30 meters distance from the camera housing.

  • Page 2: Scope Of Delivery

    Connect the "camera" box of the Long Cable Extender using the Mx-A-S7A-CBL-xx cable to the S74. Make sure to align the plug to the right and push into the connector until fully inserted.
  • Page 3 Go to the Admin Menu - Hardware Configuration - Sensor Module Configuration and set the Cable Length to "Long (>2 meters)" and reboot the camera. © MOBOTIX AG www.mobotix.com Vertraulich / Confidental * MERGEFORMAT 2107_QI_S74 Long Cable Extender_en.docx • 01.09.21 • Seite/Page 3/ 6...

  • Page 4: Troubleshooting

    No power supplied to the LCE Check connection of the USB-C- Cable between S74-Body and S7A-LCE-Camera. Green power (5 V) supplied to the LCE from S74 Body. No transmission signal could be detected Check connection of the Optical Fiber on both boxes, it might be, that it is not plugged in correctly.

  • Page 5: Technical Specification

    MOBOTIX Long Cable Extender Green power (5 V) supplied to the LCE from S74 Body or separated DC supply. Per design, the right Optical Link indication LED can never be Off. If the right LED is off, the LED might be broken.
  • Page 6 Operation: -10 - +65°C / 14 – 149°F 15 FPS with 4k WDR on/ 30 FPS with 4k WDR off Max Cable Length LEDs © MOBOTIX AG www.mobotix.com Vertraulich / Confidental * MERGEFORMAT 2107_QI_S74 Long Cable Extender_en.docx • 01.09.21 • Seite/Page 6/ 6...
