TENTCO SNR DELUXE Quick Start Manual

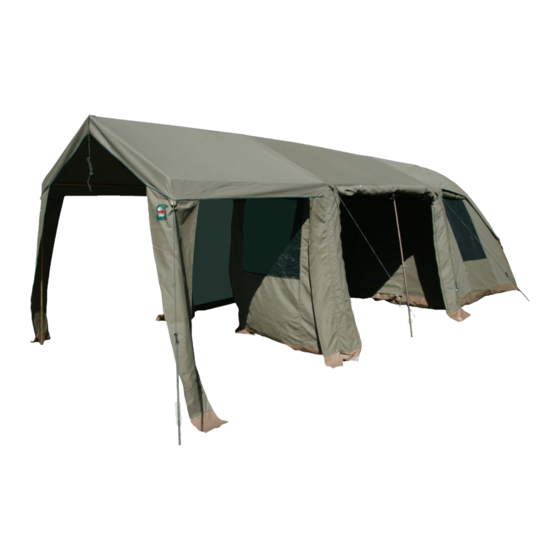

This extension tent is erected over a steel frame which is then coupled to the bow tent with
a pole from the steel frame to the top of the bow tent frame.
The bow tent flysheet is not used as the extension has it's own flysheet for the bow tent.
Go to www.tentco.co.za
Tent & Frame assembly
1. Lay out the frame on the ground, the frame is assembled by matching the coloured poles to the
matching coloured corners.
2. Start by building the roof section of the frame first inserting bottom half of upright poles only.
Do not insert the verandah section of the frame until the canvas is on.
3. Pull the canvas skin over the frame taking care when placing the cut-outs on the front wall over
the protruding corner pieces of the verandah.
4. Now add the verandah frame and pull the verandah canvas over the verandah frame.
5. Lift the frame and insert the bottom half of the poles 1 side at a time
6. Bring the bow tent and extension together and clip the link pole onto the top of the bow tent
and hook the flysheet legs onto the bow tent frame.
7. The gussets are attached to the bow tent frame with velcro to form an effective seal.
8. Attach the extension canvas to the frame with the velcro sewn into the inside seams.
9. Peg the bottom of the canvas to the ground at all the anchor points using straight pegs.
10. Secure the guy ropes with the anchor pegs, remember the rope at the crown of the bow tent.
11. The flaps at the side can be extended with extra poles (not provided) to extend the shade.
12. See overleaf for more instructions.
SNR DELUXE
SNR DELUXE
EXTENSION
EXTENSION
to view instructional videos on how to erect your tent
