- Page 1 E7470/E7471 Rigging manual 1.1 en...
- Page 2 General information E7470/E7471 Rigging manual Version: 1.1 en, 08/2014, D2709.EN .01 Copyright © 2014 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new customer.
- Page 3 Contents E7470/E7471 Y Touring carts........4 1.1. Intended use..............4 1.2. Scope of supply............4 1.3. Weights and dimensions..........5 1.4. Additional top loads............ 5 1.5. Loading the cabinets onto the cart......6 d&b E7470/E7471 Rigging manual 1.1 en...

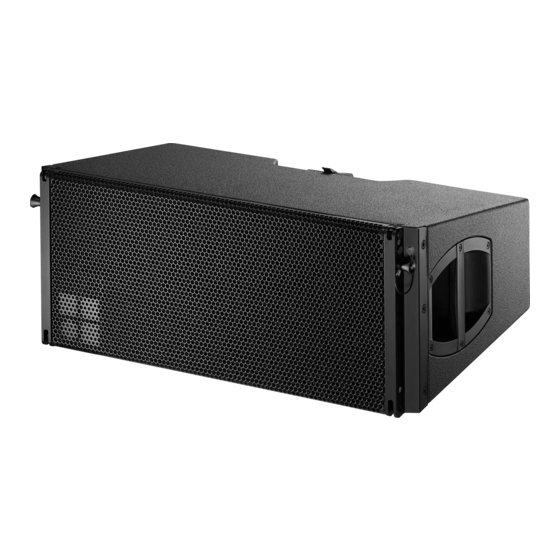

- Page 4 1. E7470/E7471 Y Touring carts 1.1. Intended use The E7470 and E7471 Y Touring carts are intended to store and transport 4 x Y8/Y12 (E7470) or 8 x Y8/Y12 (E7471) cabinets, respectively. The entire cabinet assembly stored in the cart can be directly connected to the Y Flying frame or mounted below already suspended Y8/Y12 or Y-SUB cabinets.
- Page 5 1.3. Weights and dimensions Total weight including cabinets: E7470 130 kg ( 285 lb) E7471 230 kg ( 510 lb) E7470 and E7471 dimensions in mm [inch] 1.4. Additional top loads CAUTION! Possible risk of personal injury and/or damage to material! Observe the maximum permitted top load as indicated on the corresponding instruction label of the cart: E7470 - 100 kg (220 lb)
- Page 6 1.5. Loading the cabinets onto the cart Order of assembly The bottom tray and the top lid of a cart are interconnected by four connecting poles, which are equipped with two fasteners (CamLocks) each. Note: To prevent the connecting poles from any damage when loading the cabinets on the cart, we recommend you to attach the poles only after the cart is fully loaded.
- Page 7 10. Attach the poles to the bottom tray and lock all fasteners (CamLocks). 11. Attach the top lid and lock all fasteners (CamLocks). Note: The top lids of the touring carts are equipped with additional guiding tracks to fix the cabinet assemblies in place. In conjunction with the E7470 Touring cart 4 x Y8/Y12 observe the direction of attachment as shown in the graphic below.
- Page 8 www.dbaudio.com...
