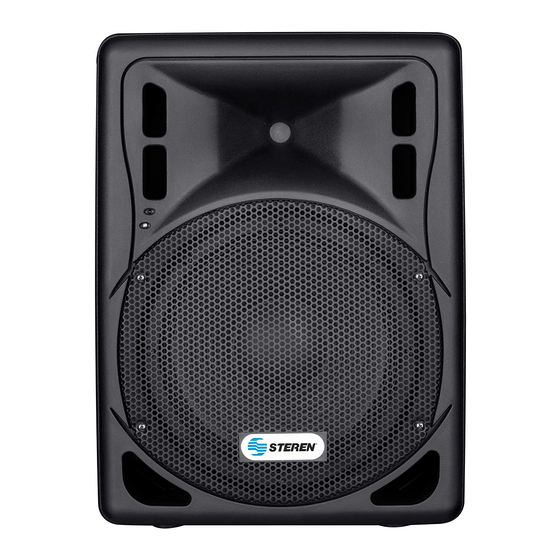

Mp3 player speaker box with amplifier
Hide thumbs Also See for BAF-1295:
Table of Contents

Advertisement

Available languages

Available languages

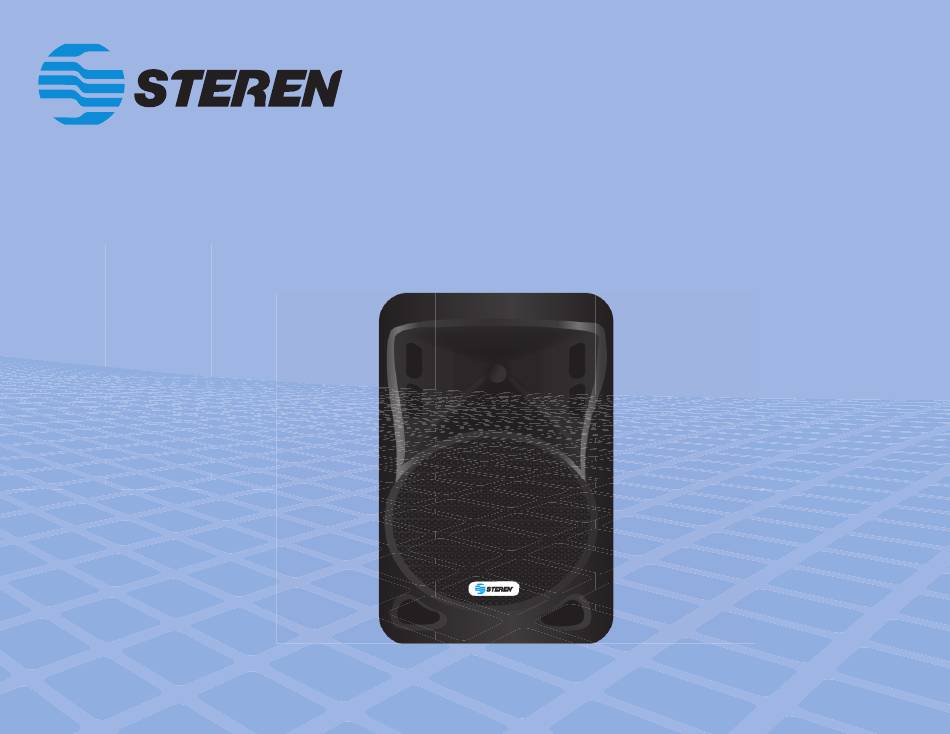

BAF-1295
Bafle profesional con amplificador
y reproductor MP3
Manual de instrucciones
V0611a
S6-B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BAF-1295 and is the answer not in the manual?

Questions and answers

Summary of Contents for Steren BAF-1295

  • Page 1 BAF-1295 Bafle profesional con amplificador y reproductor MP3 Manual de instrucciones V0611a S6-B...
  • Page 2 Bafle profesional con amplificador y reproductor MP3 Steren. Por favor revise este manual completamente para estar seguro de instalar y poder operar apropiadamente este producto. Para apoyo, compras y todo lo nuevo que tiene Steren, visite nuestro sitio Web en: www.steren.com...
  • Page 3 Escuchar equipos de audio a un nivel muy alto puede ocasionar daños irreparables, los cuales son detectados demasiado tarde. Es por eso, que Steren le recomienda no estar expuesto a sonidos muy altos por un tiempo prolongado. Esta lista de nivel de sonidos es para su protección:...
  • Page 4 Los siguientes niveles de ruido pueden ser peligrosos bajo una exposición constante: NIVEL EJEMPLO Camión de la basura, motosierra, taladro neumático Concierto de rock en frente de las bocinas Disparo de arma, despegue de avión Despegue de cohete CARACTERÍSTICAS Su nuevo Bafle profesional con amplificador y reproductor MP3 tiene una potencia de 2500Wpmpo y es ideal para aplicaciones de audio de gran potencia.
  • Page 5 CONTROLES 1. Entrada balanceada para micrófono: Conector tipo cannon para micrófono balanceado. 2. Entrada de micrófono: Permite conectar un micrófono con conector de 6,3mm. 3. Control de micrófono: Utilice este control para ajustar el nivel de volumen del micrófono (ya sea 6,3mm o cannon). 4.
  • Page 6 CONTROLES REPRODUCTOR MP3 1. Pantalla de LCD: Despliega información acerca de la canción actual. 2. Detener: Detiene la reproducción actual. 3. R e p r o d u c i r / P a u s a : C o m i e n z a l a reproducción de una canción / realiza una pausa a la reproducción actual.
  • Page 7: Control Remoto

    CONTROL REMOTO 1. Reproducir / Pausa 2. Detener 3. Silenciar 4. Repetir 5. Tecla USB/SD 6. Volumen + MUTE REPT. 7. Regresar 8. Ecualizador 9. Adelantar VOL + 10. Volumen – 11. Compartimiento de batería. Utiliza una batería tipo botón CR2025 VOL -...
  • Page 8 INSTRUCCIONES Realice todas las conexiones iniciales con todos los interruptores en la posición de apagado (OFF). Asegúrese de que el volumen de todos los dispositivos esté en el nivel más bajo, posteriormente podrá graduarlo. 1. Conecte el cable polarizado a la corriente eléctrica y a su vez el bafle. 2.
  • Page 9: Problemas Y Soluciones

    CONEXIÓN IPOD CONTACTO PROBLEMAS Y SOLUCIONES...
  • Page 10: Especificaciones

    ESPECIFICACIONES Alimentación: 127V~ 60Hz 350W Potencia: 2500Wpmpo Amplificador conectores Alimentación: 2 cannon, 1 de 6,3mm y 2 RCA Salida: 1 cannon y 1 de 6,3mm Distorsión armónica: ≤ 0,1% Relación señal/ruido: ≥ 105dB Woofer Diámetro: 30,5cm Impedancia: 4ohms Potencia: 300W Diámetro de bobina: 63mm Imán: 1 395g Respuesta de frecuencia: 50Hz a 4kHz...
  • Page 11 1.- Para hacer efectiva la garantía, presente ésta póliza y el producto, en donde fue adquirido o en Electrónica Steren S.A. de C.V. 2.- Electrónica Steren S.A de C.V. se compromete a reparar el producto en caso de estar defectuoso sin ningún cargo al consumidor. Los gastos de transportación serán cubiertos por el proveedor.
  • Page 12 BAF-1295 MP3 Player speaker box with amplifier Instruction Manual V0611a S6-B...
  • Page 13 Steren product. This manual includes all the feature operations and troubleshooting necessary to install and operate your new Steren´s MP3 player speaker box with amplifier. Please review this manual thoroughly to ensure proper installation and operation of this product.
  • Page 14 Used wisely, your new sound equipment will provide a lifetime of fun and enjoyment. Since hearing damage from loud noise is often undetectable until it is too late. Steren recommend you avoid prolonged exposure to excessive noise. This list of sound levels is included for your...
  • Page 15 The following noises can be dangerous under constant exposure: LEVEL EXAMPLE Garbage truck, chainsaw, pneumatics drill Rock band concert in front of speakers Gunshot blast, jet plane Rocket launching pad HIGHLIGHTS Your new MP3 player speaker box with amplifier has a 2500Wpmpo of maximum power output, and it’s perfect for sound aplications.
  • Page 16 CONTROLS 1. Balanced microphone input: Connector for a balanced microphone. 2. Microphone input: Allows you to connect a microphone with a 6.3mm connector. 3. Microphone control: Use this control to set the volume level of the microphone (6.3mm or balanced). 4.
  • Page 17 MP3 PLAYER CONTROLS 1. LCD screen. Displays information of the current song. 2. Stop. Stops current song. 3. Play / Pause. Press to play a song or pause while playing a song. 4. Next / Volume + Press once to jump next song / press and hold to raise the volume level.
  • Page 18: Remote Control

    REMOTE CONTROL 1. Play / Pause 2. Stop 3. Mute 4. Repeat 5. USB / SD selector 6. Volume + MUTE REPT. 7. Backward 8. EQ 9. Forward VOL + 10. Volume – 11. Battery compartment. It uses a CR2025 button type battery. VOL -...
  • Page 19: Cascade Connection

    INSTRUCTIONS Make all initial connections with the power switches OFF on all equipments. Make sure volume level are all the way down, later you can adjust it. 1. Connect the polarized cable to electric current, then plug to the speaker. 2.
  • Page 20: Troubleshooting

    CONNECTION IPOD OUTLET TROUBLESHOOTING...
  • Page 21: Specifications

    SPECIFICATIONS Input: 127V~ 60Hz 350W Power output: 2500Wpmpo Amplifier connectors Input: 2 cannon, 2 RCA and a 6.3mm Output: A cannon and a 6.3mm THD: ≤ 0.1% SNR: ≥ 105dB Woofer Diameter: 12” Impedance: 4ohms Power output: 300W Coil diameter: 2.5” Magnet: 50oz Frequency response: 50Hz to 4kHz Sensitivity: 100dBm...
  • Page 22 NOTAS / NOTES...
  • Page 23: Warranty

    Part number: BAF-1295 Brand: Steren WARRANTY This Steren product is warranted under normal usage against defects in workmanship and materials to the original purchaser for one year from the date of purchase. CONDITIONS 1.- This warranty card with all the required information, invoice, product box or package, and product, must be presented when warranty service is required.
  • Page 24 Este instructivo puede mejorar con su ayuda, llámenos: Help us to improve this instruction manual, call us: 01800 500 9000 Centro de Servicio a Clientes Customer Service Center...
