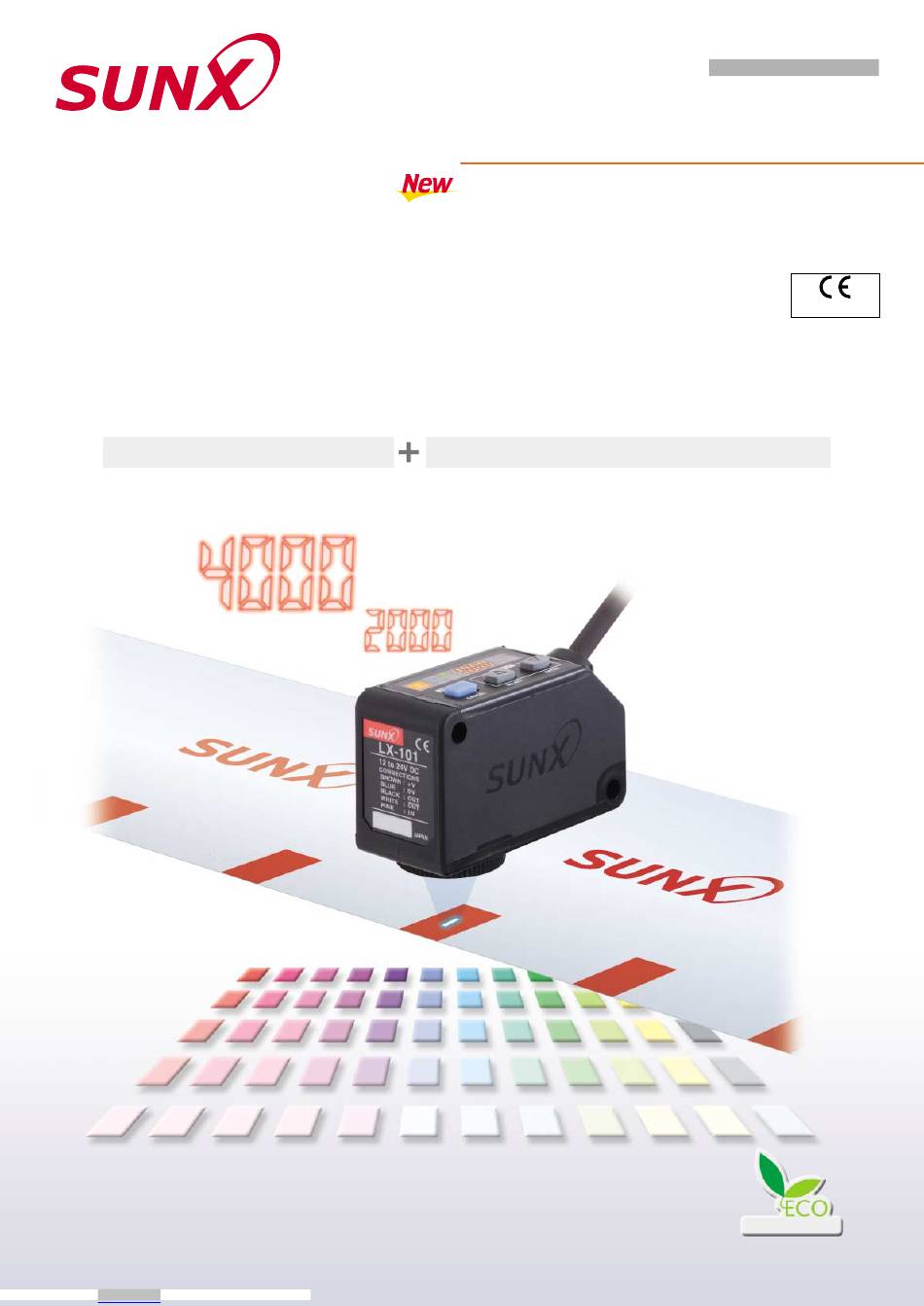

PHOTOELECTRIC SENSOR
DIGITAL MARK SENSOR
LX-100
SERIES
Conforming to
EMC Directive
Introducing the ultimate mark sensor
High resolution A/D converter
Automatic optimal LED selection function
Lead-free Solder
Arrow.com.
Downloaded from

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LX-100 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sunx LX-100 Series

Summary of Contents for Sunx LX-100 Series

  • Page 1 PHOTOELECTRIC SENSOR DIGITAL MARK SENSOR LX-100 SERIES Conforming to EMC Directive Introducing the ultimate mark sensor High resolution A/D converter Automatic optimal LED selection function Lead-free Solder Arrow.com. Downloaded from...
  • Page 2 LED light emitting elements all in one. light emitting elements all in one. High precision coaxial Total reflection mirror reflective optical system SUNX’s unique coaxial reflective optics SUNX’s unique coaxial reflective optics technology technology ensures ensures very...

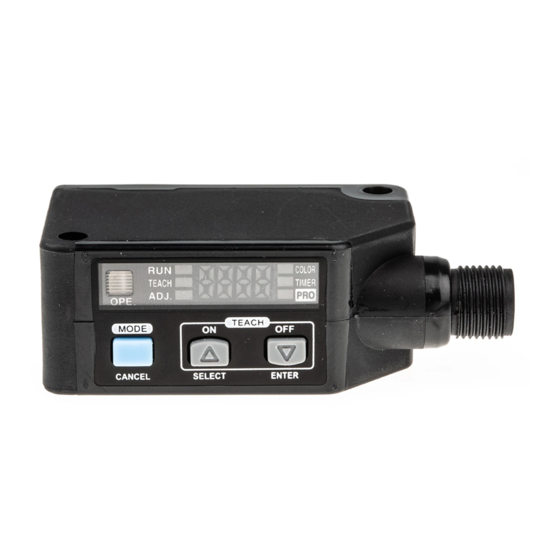

  • Page 3 4-digit digital display The 4-digit digital display enables numerical sensing control and minute settings. Operation panel 3 large buttons that click into position making operation easy. Highest in the industry 12-bit A/D converter A resolution of 1/4000 is realized to enable high precision mark sensing.

  • Page 4: Mark Mode

    Great figures are indicated for the blue LED’s light amount ratio and, for even more stable sensing, the Optimal blue LED effectuates this mark sensing. The LX-100 series sensors automatically selects the optimal LED that will ensure the most stable sensing results. Mark...

  • Page 5: Color Mode

    High precision mark color discrimination The color mode on the LX-100 series utilizes all 3 R•G •B LEDs to determine the R• G• B ratio of the mark color. The built-in 12-bit A/D converter enables high precision 1/4000-resolution judgments. The figure below is a graphic description of this process.
  • Page 6 Its digital display makes for easy settings! Numerical control of the settings possible The 4-digit digital display enables easy verification of received light from marks and base (non-mark area). Also, the threshold value can be controlled numerically enabling setting indication easily. Displaying the direct code enables settings verification.
  • Page 7 Direct codes enable settings verification at a glance Direct code display example mFor details, refer to p.7 ‘Direct code table’ The settings for the LX-100 series sensors are displayed using a 4-digit direct code. Direct codes enable easy settings verification and maintenance by phone.
  • Page 8 Other features and handy functions Compact design for significant space savings Cable type High precision sensing and multiple functions provided all in a compact W57 H38 mm W2.244 D0.945 H1.496 in body. Cable and plug-in connector types are available depending on •...

  • Page 9: Order Guide

    29 mm 1.142 in OPTIONS Type Model No. Description MS-LX-1 Mounting bracket made for Sensor mounting LX-100 series applicable for bracket various kinds of installations MS-LX-2 Sensor mounting brackets • MS-LX-1 • MS-LX-2 Two M4 (length 28 mm 1.102 in) screws with Two M4 (length 30 mm 1.181...

  • Page 10: Specifications

    LX-100 SPECIFICATIONS Type Cable type Plug-in connector type NPN output LX-101 LX-101-Z PNP output LX-101-P LX-101-P-Z Item Sensing range 3 mm 0.394 0.118 in Spot size 5 mm 0.039 0.197 in (at 10 mm 0.394 in setting distance) Supply voltage 12 to 24 V DC 10 % Ripple P-P 10 % or less Normal mode: 750 mW or less (Current consumption 30 mA or less at 24 V supply voltage)
  • Page 11 LX-100 I/O CIRCUIT AND WIRING DIAGRAMS NPN output type PNP output type I/O circuit diagrams I/O circuit diagrams Terminal No. of plug-in connector type Color code of cable type / Color code of cable type / Terminal No. of plug-in connector type mating cable for plug-in connector type mating cable for plug-in connector type (Brown)

  • Page 12: Precautions For Proper Use

    LX-100 PRECAUTIONS FOR PROPER USE Part description • This catalog is a guide to select a suitable product. Be sure to read the instruction manual attached to the product prior to its use. Operation indicator MODE indicator 4-digit digital display (Orange) (Green / Yellow) (Red)
  • Page 13 LX-100 COLOR CHART [The color notations are based on the C (cyan) / M (magenta) / Y (yellow) / BL (black) format used for printing.] M : 100 Y : 100 M : 100 Y : 50 M : 100 C : 50 M : 100 C : 100 M : 100 C : 100 M : 50...
  • Page 14 Various mark sensing applications and sensor applications to suit any job are available. We at SUNX provide every type of sensor for food or drug packaging machines such as the LX-100 series digital mark sensor made for sensing various types of marks.
  • Page 15 DIGITAL MARK SENSOR LX-100 SERIES Tube positioning Detects printed marks to align tubes. Can be used for various kinds of packing film • Paper bags • Transparent film • Aluminum evaporation film • Carrier bags D: Air pressure detection E: Packing and content detection...
  • Page 16 Introducing SUNX food or drug packaging machine sensors Digital Fiber Sensor Digital Pressure Sensor Digital Laser Sensor FX-300 DP2 / DP4 SERIES SERIES SERIES • • • Red / Green / Blue / Infrared LED Bright, easy to view dual-color 3 types of laser sensor heads amplifiers available.
