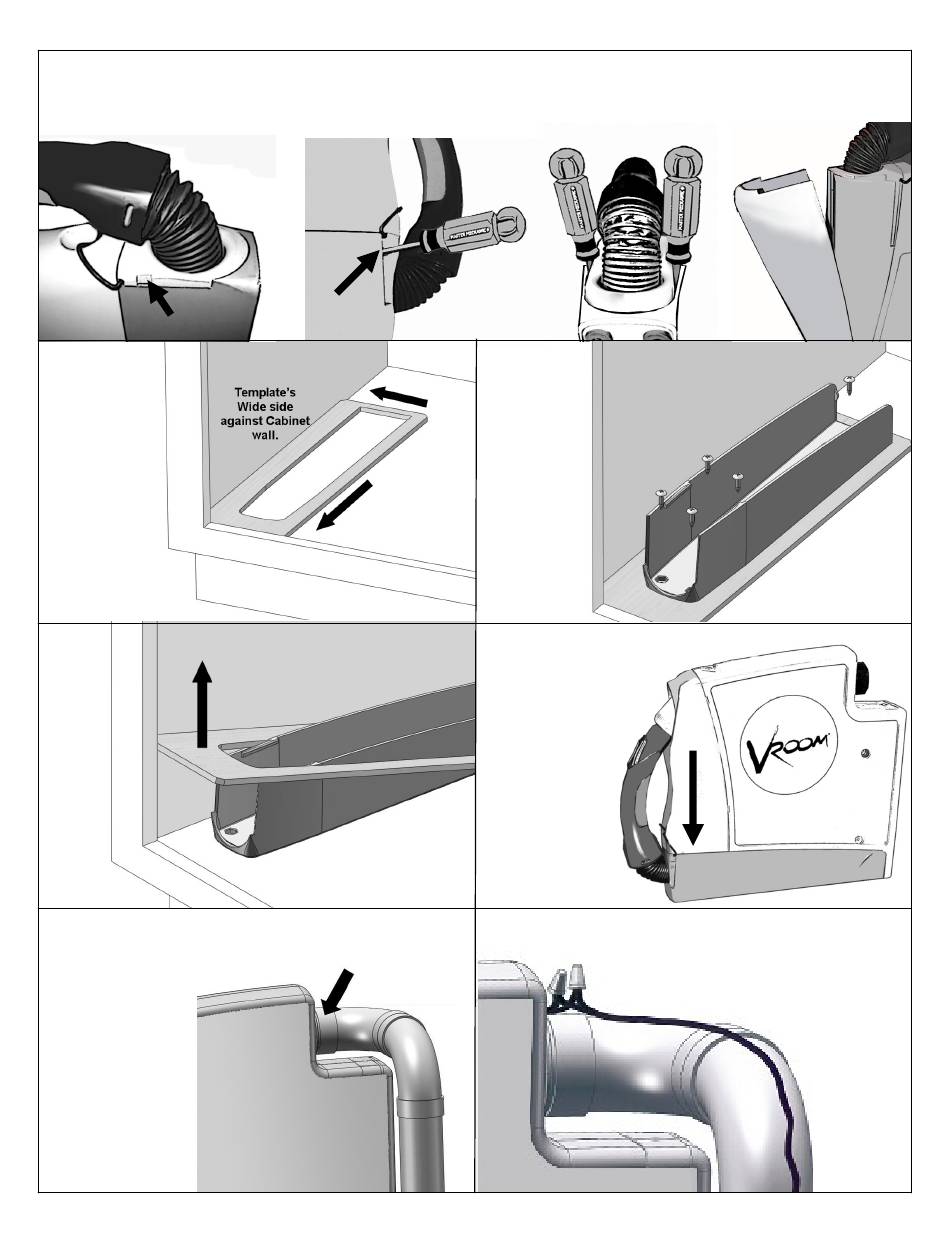

Vroom18 Cabinet Installation
1.
Before installing, remove bracket from the bottom of the Vroom by inserting a flat blade
screwdriver into the release tabs located on each side of the mounting bracket as shown.
Release
Tab
2.
Locate
cardboard
Template
inside the
cabinet.
4.
Remove
the
cardboard
template.
6.
Connect the
vacuum tubing
to the Vroom's
connector on the
back as shown.
Do NOT glue,
press fit only.
If you require additional information on installation, please visit: www.VroomYourRoom.com
Release
Tab
For service reasons,
do NOT glue this
connection.
H-P Products, Inc. 512 W. Gorgas Street, Louisville, OH 44641
3.
Place
mounting
bracket in
template.
Secure
with 5
screws
as shown.
5.
Install the Vroom
in the mounting
bracket by
pushing it into
place as shown.
It will snap in
place when
installed
correctly.
7.
Connect the low voltage wires
on the back of the unit.
04-12 P/N 9583
