FYC furniture 239-Ergo-4 Assembly Instructions

Download this manual

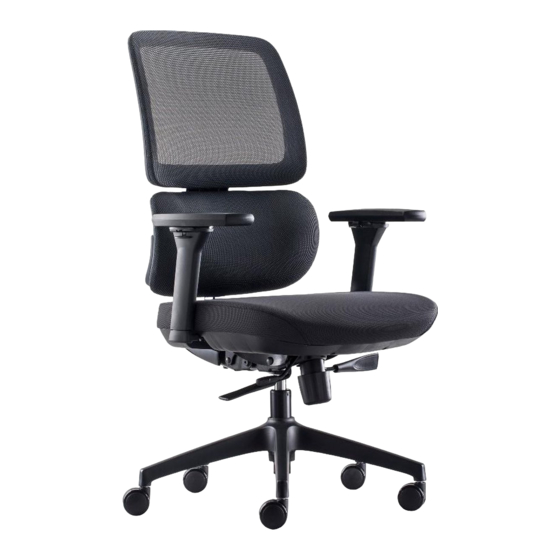

Model FYC 239-Ergo-4

Need help?

Do you have a question about the 239-Ergo-4 and is the answer not in the manual?

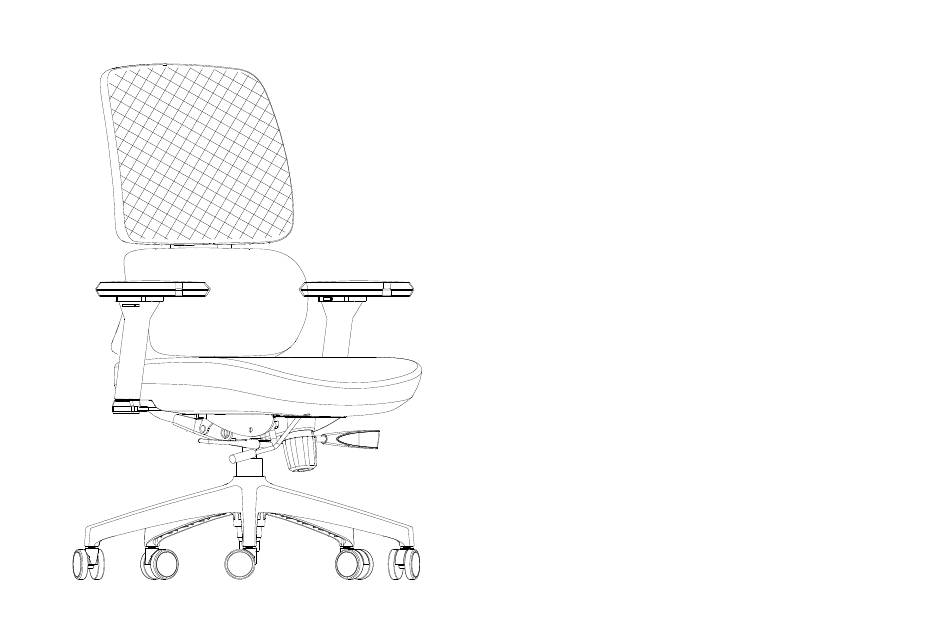

Page 1 Model FYC 239-Ergo-4...
Page 2 Eng. Take the mechanism C, and pull the slide level (1), move the top-part, so that the fixing holes underneath can be used. Beweeg de zit-diepte-verstellings-handel (1) zodat u het bovenste gedeelte kunt verschuiven. Zet hem 5PCS vast op de stand waarbij de bevestigingsgaten zichtbaar zijn.
Page 3 I 1PCS Eng. Assemble the armrest D to the seat B with the 6 bolts J and wrench I Eng. Insert the castors G (Some strength is J 6PCS needed) and the gas lift E to the base F. Monteer de armleuningen D aan de zitting B Then place the chair top parts on the gas met de 6 bouten J en de inbussleutel I lift E...
Page 4 Eng. Use handle (2) to adjust Eng. By turning the big knob (4) you can adjust the seat height the tension of the backrest when it is not locked in a fixed position. NL. Met handel (2) kunt u de NL.
Page 5 Eng. You can adjust the height of the Eng. Press the level ⑤ forward and backrest by moving it up/down backward to adjust backrest angle. U kunt de hoogte van de rugleuning Forward to lock, backward to instellen door de rug omhoog en unlock.
