INSTALLATION, OPERATING INSTRUCTIONS AND OWNER'S MANUAL
READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING THE INSTALLATION OF YOUR
PLEASE RECORD THE SERIAL NUMBER ______ OF YOUR WHIRLPOOL AND SAVE THIS MANUAL
NOTE: These instructions are to be used along with the installation instructions for
WARNING - When using electrical products, basic
precautions should always be followed, including the
following:
"
DANGER: Risk of electrical shock. Connect only to a
circuit protected by a ground fault circuit interrupter, (GFCI).
"
Grounding is required. An equipment grounding terminal is
provided in the field wiring compartment. To reduce the risk of
electric shock, this terminal must be connected to the
grounding means provided in the electric supply panel with a
conductor equivalent in size to the circuit conductors
supplying the equipment.
"
Install this unit in accordance with the Canadian electrical
code, part 1 or the appropriate code in other countries.
"
Install to permit access for servicing.
"
Provide adequate ventilation for the motor to prevent
nuisance trips of the thermal overload protection.
Caution: Do not lift a whirlpool bath by its plumbing.
Handle it by the bath shell only.
DRAIN & OVERFLOW LEAK TEST
Test the installation after completing the plumbing, but before
enclosing the bath and finishing the surroundings. Fill the bath
with water and leave it for one hour to ensure that the
adjustment of the drain-overflow assembly is correct, and that
there are no leaks.
WHIRLPOOL FITTINGS LEAK TEST
Do not run the whirlpool pump unless the bath is filled with
water to a level at least 2" (50 mm) above the whirlpool fittings.
Press the tub-mounted air switch control (A/S) to start the
pump. Run the pump and jets for 10 minutes to ensure there
are no leaks around the whirlpool fittings. Press the air switch
control (A/S) again to stop.
INSTALLATION NOTES
Important: All Mirolin acrylic whirlpools receive a thorough
water test and are carefully inspected and packed for
shipment. You should check your unit for any problems. For all
installation and product related inquiries contact Mirolin
customer care at 800.MIROLIN before installation. Do not
contact retailer.
Protect the bathtub and fittings from dirt and damage by
leaving the polyethylene protective film in place until
installation and other related construction is complete. Access
©
2018 Mirolin Industries Corp.
ACRYLIC WHIRLPOOLS
WHIRLPOOL HYDROMASSAGE BATHTUB
FOR FUTURE REFERENCE.
ACRYLIC BATHTUBS
for servicing the pump and controls of the whirlpool bath
must be provided (Refer to specification drawings for
location). DO NOT remove or relocate the pump from its
factory-installed position. This position ensures proper
priming, drainage, and performance of the whirlpool
system.
Relocating the pump will void the warranty.
NOTE: The unions for the piping at the pump are only to
be hand tightened. Check by hand that they have not
loosened during shipping.

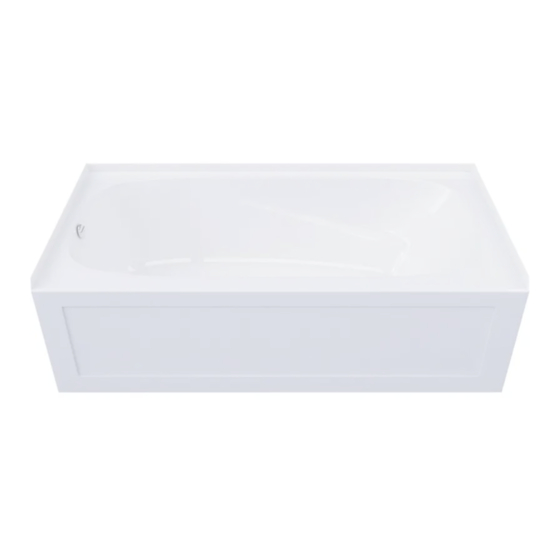

MODELS WITH INTEGRAL APRON
Whirlpools with an integral apron have a removable
panel in the apron for access to the pump and motor. The
panel is fastened to the apron by strips of interlocking
fabric (velcro) along the top plus screws.
To remove panel follow instructions below:

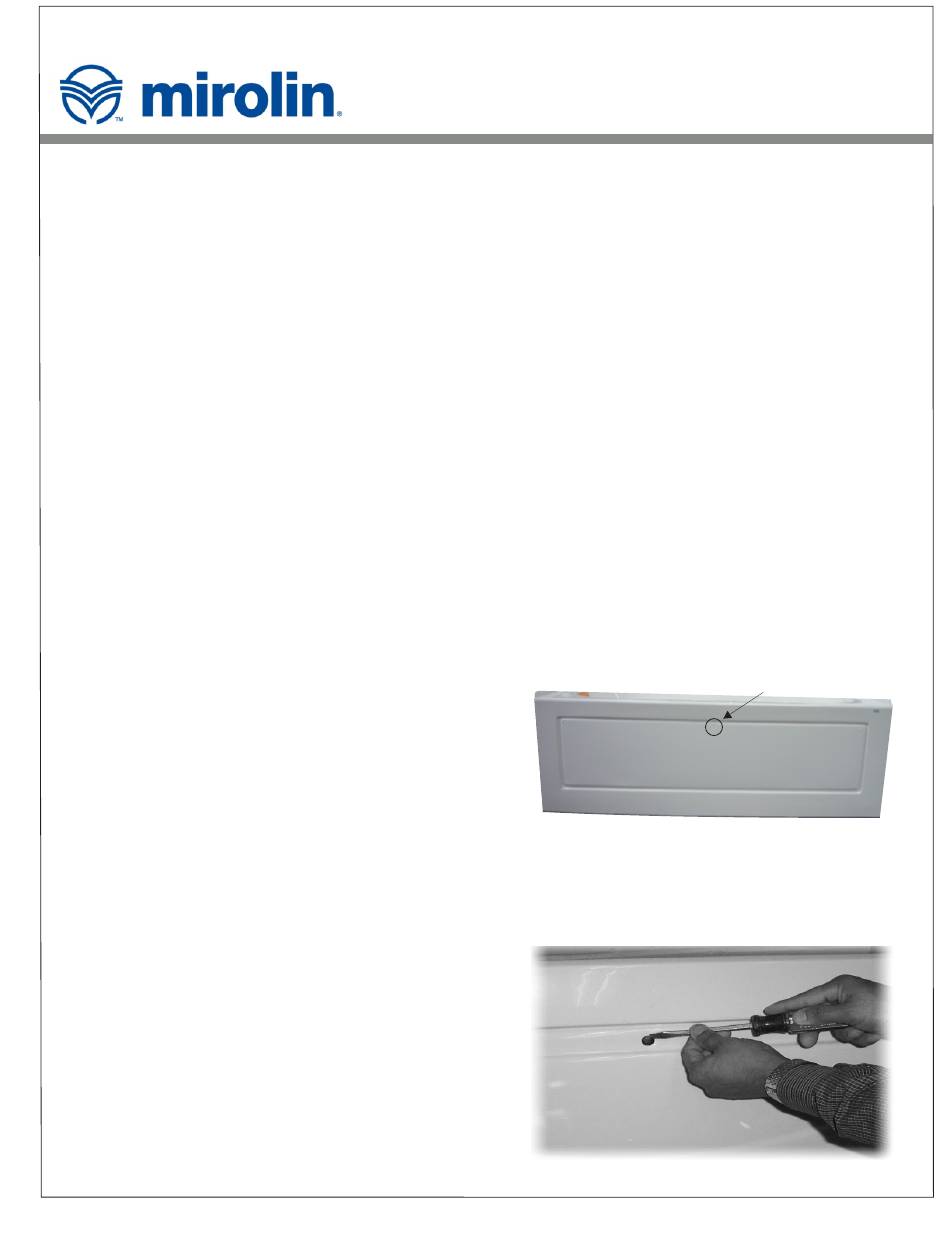

Figure 1 - Integral apron with removable panel.
To remove the panel, first expose the screws by
removing all 5 plastic caps. Use a flat screwdriver gently
to avoid scratching the acrylic bathtub, Figure 2.
