USB-PIO-OEM
Digital I/O Interface (USB)
24 Channels. Digital.
Signal Output & Monitoring.
Record and output digital signals. The
USB-PIO-OEM features three 8-bit
bidirectional ports. The port lines are led
through to the module pins.
OEM. Simply Integrate.

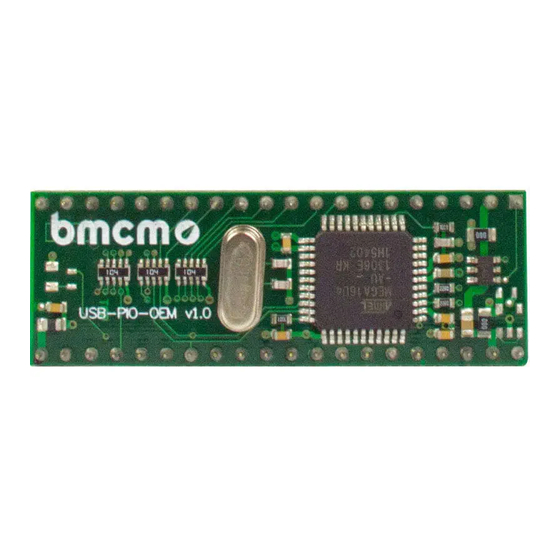

The module is an OEM version of the USB-PIO
of bmcm to equip your device with a modern
and powerful USB interface. Special emphasis
was put on the easy implementation of both
hardware and software components.
Extra Small. Extra Low-Priced.
In size and construction type, the USB-PIO-
OEM module looks like a 40-pin DIL IC and
can easily be integrated in other devices. Not
only the size is extra small but also the price.

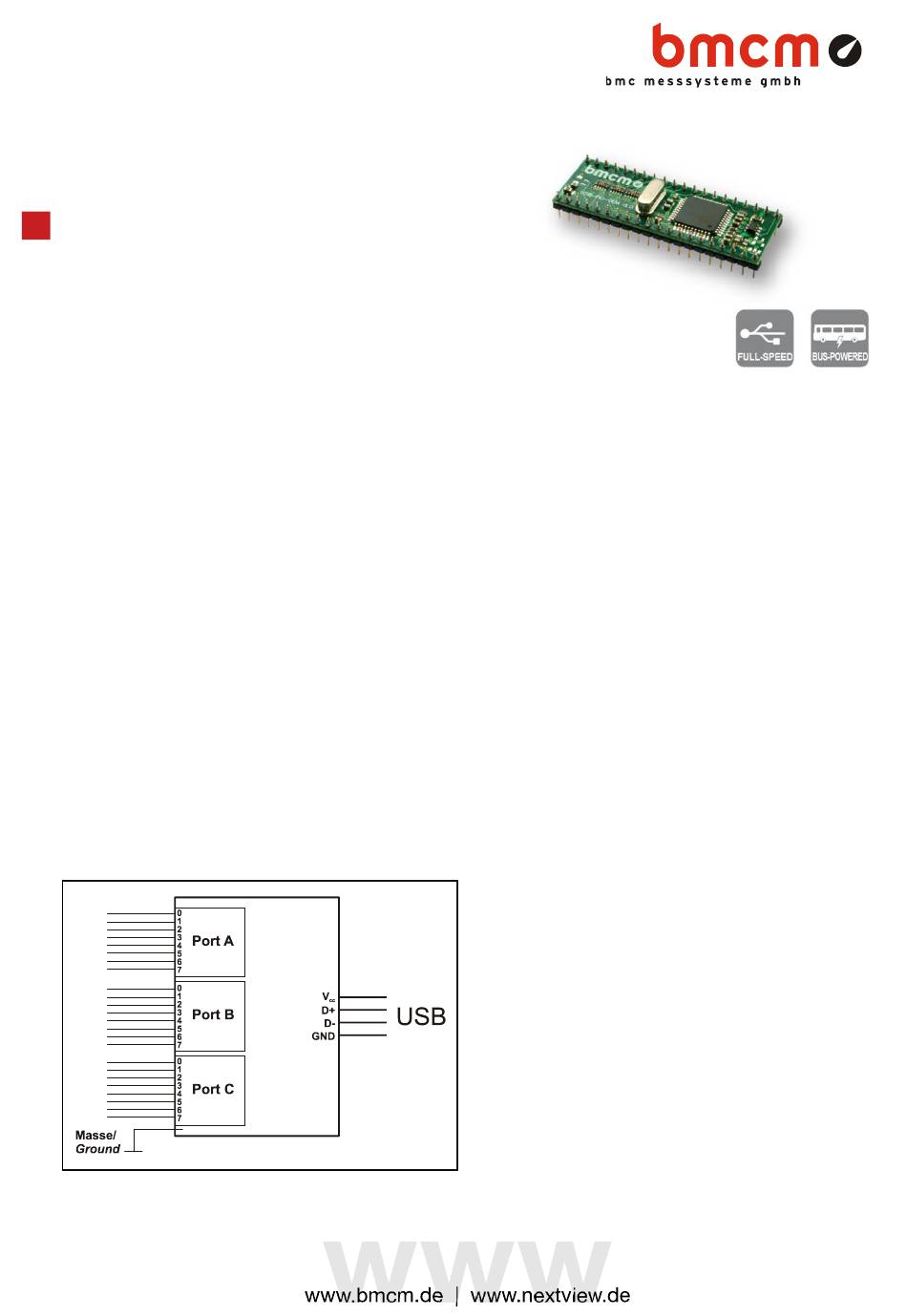

Function diagram
Plug & Play.
The connection to the PC is realized via USB.
The USB-PIO-OEM provides all typical USB
features (e.g. Plug&Play, Hot-Plug). Up to 127
devices can be connected and installed during
operation.
Powered by USB.
The device is supplied with power via the USB
interface. This reduces cabling efforts to a
minimum and makes mobile measurements a
lot easier.
Open for Everyone.
Widely supported: The USB-PIO-OEM can be
used under Windows
®
under MAC OS X, Free BSD, and Linux. The
OEM module is 100% software compatible to
the USB-PIO. The complete software for
installation and programming of the device is
included for free.
NextView
. Try for Free.
®
The module is supported by NextView
software for data acquisition and analysis. A
fully functional 14-day trial is included with
delivery to directly test the functionality of the
USB-PIO-OEM.
Accessory. Just Makes it Easier.
For testing purposes or to make your own
developments easier, the test tool USB-PIO-
OEM-TL is available. It provides standard
connectors for the digital lines and the USB
bus. In addition, 24 LEDs allow immediate
status control of the individual I/O pins.
XP/7/8/10 as well as
, the
®
