Novar 300 Operation & Maintenance Manual

Capacitor controller for power factor correction
Hide thumbs
Table of Contents

Advertisement

Quick Links

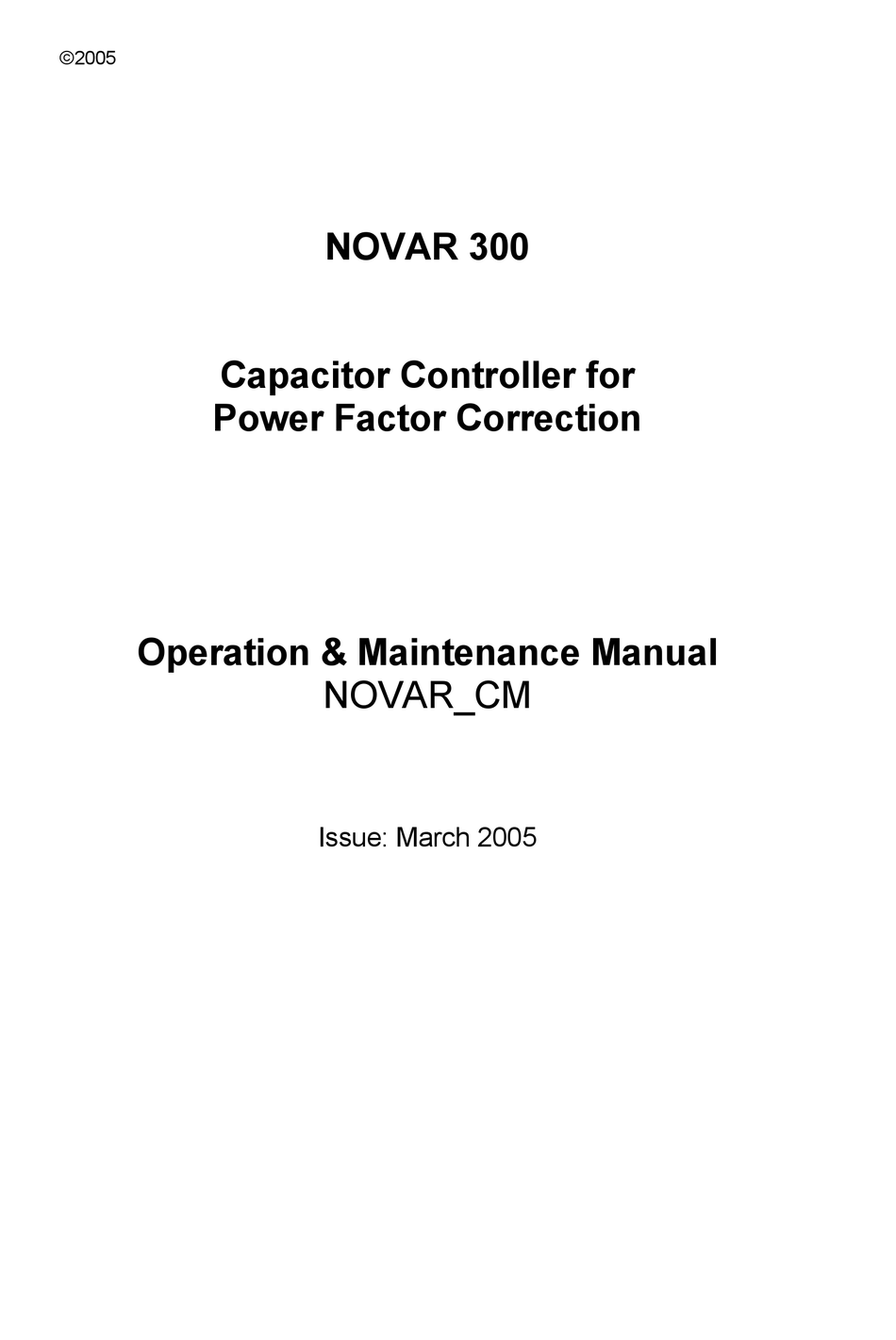

2005
NOVAR 300
Capacitor Controller for
Power Factor Correction
Operation & Maintenance Manual
NOVAR_CM
Issue: March 2005

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NOVAR 300 and is the answer not in the manual?

Questions and answers

Related Manuals for Novar NOVAR 300

Summary of Contents for Novar NOVAR 300

  • Page 1  2005 NOVAR 300 Capacitor Controller for Power Factor Correction Operation & Maintenance Manual NOVAR_CM Issue: March 2005...

  • Page 2: Table Of Contents

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 2 of 29 CONTENTS 1. INTRODUCTION..........................3 1.1 APPLICATION............................3 1.2 DESCRIPTION AND OPERATION ....................6 2. TECHNICAL SPECIFICATION ......................7 2.1 RATINGS, OPERATING RANGES & FEATURES................7 2.2 ELECTROMAGNETIC COMPATIBILITY (EMC) ................11 2.3 EUROPEAN LOW VOLTAGE DIRECTIVE (LVD)................11 3.

  • Page 3: Introduction

    NOVAR 300 uses true rms measuring techniques together with appropriate mathematical calculations in preference to mean sensing and zero crossing detection which has proved inaccurate on systems with distorted waveforms. The NOVAR 300 should be connected to the system as shown in the appropriate diagrams (Figures 1 and 2).
  • Page 4 NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 4 of 29 For contact pairs fitted see number of stages To Load Alarm (if fitted) FIGURE 1 - Wiring diagram for volt free contacts...
  • Page 5 NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 5 of 29 Common For contact pairs fitted see number of stages To Load Alarm (if fitted) FIGURE 2 - Wiring diagram for common contacts...

  • Page 6: Description And Operation

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 6 of 29 1.2 DESCRIPTION AND OPERATION Multi-stage controllers are available in standard units of 6 and 12 stages. These provide up to 12 pairs of "volt-free" contacts. The following switches are mounted on the controller front panel :...

  • Page 7: Technical Specification

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 7 of 29 2. TECHNICAL SPECIFICATION 2.1 RATINGS, OPERATING RANGES & FEATURES Voltage Rating (Vn) 110 V, 120 V, 415 V, 480 V. Others available in range 63.5 V to 500 V max.
  • Page 8 The time required to safely discharge a capacitor can be Safety lockout set to any of 8 different values. The NOVAR will not allow any capacitor to be re-energised until this time has elapsed. Providing that the safety lockout time has passed, the capacitor can be called after one fifth of the programmed time.
  • Page 9 Models without the automatic exit from manual are available. Signals failure to meet target cos ϕ Alarm output See also Self Test At reset and every ten minutes in operation, the NOVAR Self Test executes internal hardware check correct functioning.
  • Page 10 NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 10 of 29 ROTATIONAL SYSTEM RESPONSE Capacitors connected 6 6 6 6 6 6 5 5 5 5 5 5 4 4 4 4 4 4 3 3 3 3 3 3...

  • Page 11: Electromagnetic Compatibility (Emc)

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 11 of 29 2.2 ELECTROMAGNETIC COMPATIBILITY (EMC) Phenomenon Standard Limits Met and Claimed Conducted EN50081-1 EN55022:1987 Class B (Table II) Emissions 1992 Radiated EN50081-1 EN55022:1987 Class B (Table IV) Emissions 1992 Electrostatic prEN50082-2 8 kV air discharge, prEN50082-2: 9.1.2...

  • Page 12: Commissioning

    Before connection of the NOVAR into a customer's system, ensure that the safety lockout time programmed into the NOVAR is equal to or greater than that required for safe discharge of system capacitors. Unless this has been specified on ordering, the NOVAR will be set to 60 seconds.

  • Page 13: User Adjustments

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 13 of 29 3.2 USER ADJUSTMENTS The following user adjustments are available and should be set during commissioning. Refer to also to Figure 4. Parameter Fascia Key Means of Selection Sequence DIL switch *...
  • Page 14 F - Dual mode button: capacitor switching (man) and display selection (auto) G - DIL switch (sequence, time and limit setting) H - Power on indication LED J - Switching in progress, circuit is capacitive K - Switching in progress, circuit is inductive FIGURE 4 - NOVAR indication and user adjustments...

  • Page 15: Setting Of Dual-In-Line Switch

    Settings of sequence, lockout time and stage limit should be set prior to powering up the NOVAR. When a controller leaves the factory, the DIL switch will be pre-set to the following default values, regardless of model type, unless specified on the order. Refer to Figure 5.

  • Page 16: Safety Lockout Time

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 16 of 29 Table 1 - Sequence settings Max no. of steps per controller Switches Number of Stages Sequence Sequence Number 1:1:1:1:1 etc 1:1:2:2:2 etc 1:2:2:2:2 etc 1:2:3:3:3 etc 1:2:3:4:4 etc 1:2:4:4:4 etc...

  • Page 17: Stage Limit

    (an ‘L’ will appear in the fourth display digit). Note: The limit is the number of capacitors connected to the NOVAR and must be set correctly. If the limit is set higher than the number of capacitors connected then the system response will be slowed down.

  • Page 18: Setting Of C/K Value

    (i.e. NOVAR 300 will switch capacitors in circuit when the input lagging vars exceed three quarters of a capacitor step size . NOVAR 300 will switch capacitors out of circuit when the input leading vars exceed three quarters of a capacitor step size .) The value of C/K can be directly entered into the unit.

  • Page 19: Setting Of Target Cos Phi

    As above, this value can be directly entered into the unit. NB: The NOVAR 300 calculation has been formulated in such a way that it will work for any value of secondary amps and volts which can be used with the unit. However, if the nominal secondary amps used is other than 5 amps, the value represented by the scalings on the c/k potentiometer will no longer be the actual capacitor starting current in amps.

  • Page 20: Connection Errors

    For three of the others, NOVAR 300 will give indication of a connection error as follows. At system unity power factor, the NOVAR 300 error mode is looking for a phase angle of 90° between amps and volts. As a system can in theory be operating anywhere within a band of 90°...
  • Page 21 NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 21 of 29 FIGURE 7 - System vector diagrams...

  • Page 22: Fault Finding And Test Procedures

    4. FAULT FINDING AND TEST PROCEDURES 4.1 FAULT FINDING When power is first applied to a NOVAR it examines both its own circuitry and the system into which it has been connected. If it finds any faults in either situation, it will signify this as follows.

  • Page 23: Input Magnitude Errors And Transients

    IND LED briefly. NB This is not an indication of a software error in the NOVAR - it is impossible for a NOVAR to be despatched unless its software is correct. If either of these situations does occur, there will be some cause not caught by the above specific error traps (e.g.

  • Page 24: Test Procedures

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 24 of 29 4.2 TEST PROCEDURES 4.2.1 Test equipment This equipment should be capable of supplying a single phase voltage and a current which is in phase with this voltage, both of which should be adjustable. The supply should be of adequate rating to meet the voltage input and to supply up to a minimum of 50% of the full scale current rating of the controller.
  • Page 25 NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 25 of 29 4.2.2.9 Allow the controller to count up to its top limit. 4.2.2.10 Check that all of the output relays are now switched on. 4.2.2.11 Reduce the current to zero: both the IND LED and the CAP LED should now be extinguished.

  • Page 26: Servicing

    If a fault in the controller is suspected, it is recommended that the complete unit is replaced. Because of the complexity of a device such as a NOVAR and the fact that it does contain calibration variables particular to its hardware on leaving the factory, any hardware changes subsequent to this will almost certainly lead to a loss in performance.

  • Page 27: Fitting Of Lockable

    5.3.3 Remove the standard cover from the front of the NOVAR and place the lockable cover over the front of the NOVAR, with the hinge placed towards the left of the NOVAR. Press together firmly. 5.3.4 Open the lockable cover door and wipe away any excess adhesive with a clean dry cloth.

  • Page 28: Circuit Description

    NOVAR 300 Operation & Maintenance Manual NOVAR_CM Page 28 of 29 6. CIRCUIT DESCRIPTION Figure 6 shows a block diagram of the Controller. This comprises two printed circuit boards with plugs and sockets providing all the board interconnections. There are two versions of the 'Relay' PCB circuit.
  • Page 29 Voltage Power Supply Input To 5V Logic Relay Reset Circuits Relays Drivers Dropper T2 CT Scaling Current Scaling Display Input Display MICRO-CONTROLLER Driver C/k and cos ϕ pots LEDs Driver Switch Switches Select FIGURE 8 - NOVAR 300 Block diagram...
