Summary of Contents for Novar lingo

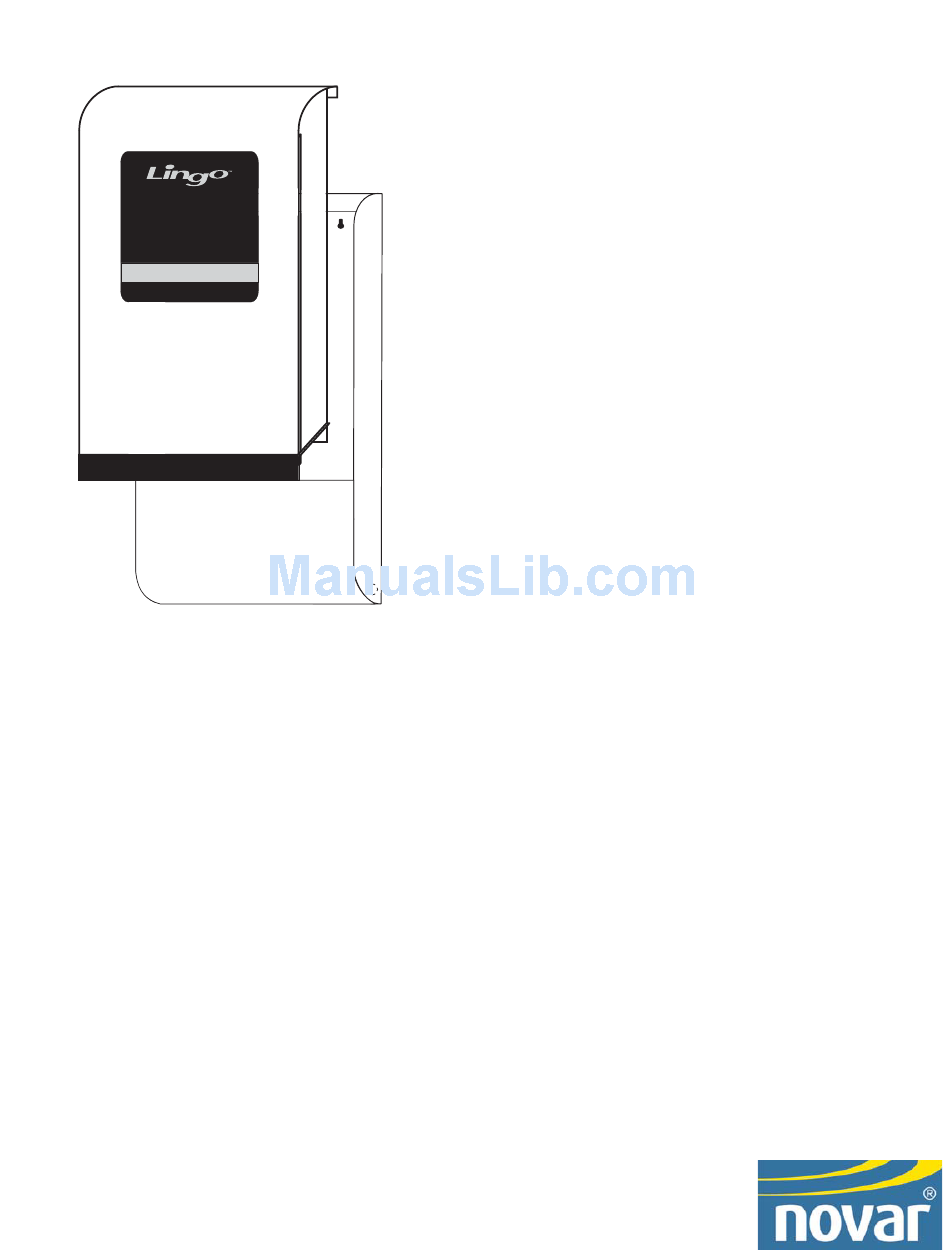

- Page 1 Lingo ® Electronic Assembly Installation Instructions DOC. #569066000—B 7/30/04 PRINTED IN U.S.A.
- Page 2 In no event shall Novar Controls Corporation be liable for technical or editorial omissions or mistakes in this manual, nor shall it be liable for any damages, direct or incidental, arising out of or related to the use of this manual.
- Page 3 Novar Controls Corporation’s Advanced Building Control System. Lingo monitors and logs the operations of the local control modules, manages network communications, and provides expandable and integrated control of the building’s equipment. Lingo’s processing power, compatibility, and multiple network capabilities provide optimum control to cut energy costs, increase comfort, and reduce equipment maintenance.
- Page 4 Lingo requires continuous power for proper operation. Setting the Module Address Every Lingo module must have a unique address for it to be properly identified on the local area network (LAN). Addresses are assigned in the software during system programming.
- Page 5 Thread appropriate telephone cable from the telephone interface jack through the knock-out on the side of the baseplate assembly and insert it into the phone line connection located at the top left side of the Lingo’s transition circuit board. Doc. #569066000—B 7/30/04...
- Page 6 ® equipped with one) or a laptop computer/PC running iScope or ESS32 software. The laptop/PC connects to Lingo via any one of the following three methods: § The RS-232 direct-connect port at the bottom right side of the Lingo electronics assembly using the RS-232 adapter cable (Novar Controls Part No.
- Page 7 Lingo Electronic Assembly Installation Instructions Model and Part Numbers Use the part numbers supplied in Table 1 to order the necessary Novar Controls parts. Table 1. Novar Controls Part Numbers PRODUCT MODEL NO. PART NO. Lingo Baseplate Lingo-BPL 750100000 Lingo Electronics Assembly (no options)
- Page 8 Lingo Electronic Assembly Installation Instructions This page intentionally left blank. Doc. #569066000—B 7/30/04...
