Geemarc Ringer595 U.L.E Quick User Manual

QUICK USER GUIDE
!!! Please refer to our website: www.geemarc.com for an up to
date user guide, as there may be important updates and
changes you need to be aware of !!!
Normal operating temperature for the product (e.g. 0
Use only the adapter listed below.
Power adapter information: output: 6V DC 0.45A,
2.7W. Vtech Telecommunications Limited. Model:
VT05EEU06045 (EU), VT05EUK06045 (UK)
IMPORTANT SAFETY INSTRUCTIONS
When using your equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and
injury, including the following:
1.Do not place this product on unstable shelves, stands, tables
or other surfaces.
2.Do not use the motion extension ringer in the following areas
that may cause deformation, malfunction, or operational
failure:
Under direct sunlight.
Areas exposed to grease or steam, such as kitchens.
Near fire or heating devices.
Areas subject to extreme temperature changes, such as next
to air conditioners.
Areas with IR-opaque or reflective objects that can block IR
energy that are needed for detection.
Areas where the temperature is affected by strong illuminating
objects (such as halogen lights).
SAVE THESE INSTRUCTIONS
WHAT'S IN THE BOX
Your product package contains the following items. Save your
sales receipt and original packaging in the event warranty
service is necessary.
o
C~40
1 2
Extension
Ringer

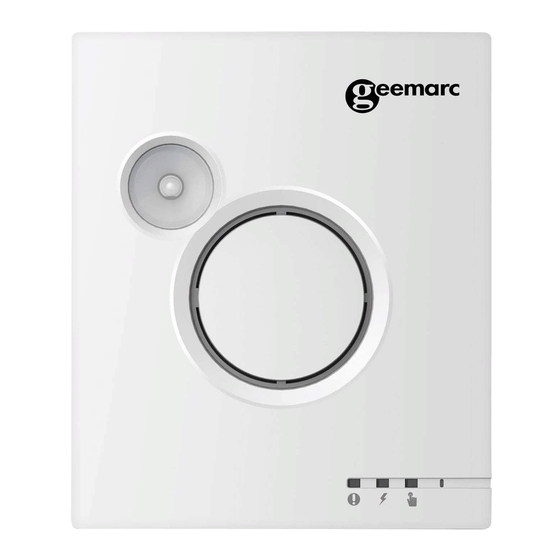

EXTENSION RINGER OVERVIEW
1. Flash LED (white)
Flashes when receiving an incoming call, or when the
registered devices are triggered.
2. Loud speaker
3. LED indicators (
Green when the extension ringer is powered on.
Red when the battery is low.
Amber while checking signal strength.
4. Side switch Keys
_ Slide to switch between the ringer volumes
(low, medium, or high).
_Slide to switch between the alert modes
(flash only (
flash & melody (
o
C).
_ Slide to switch between three doorbell melodies.
5. PAIR button (
Press and hold for 5 seconds to enter the pairing mode.
6. Power jack
BEFORE USE
Batteries installation (purchased separately)
1. Push downward to
remove the battery
compartment cover at the
back.
2. Install three AA
batteries into the
battery compartment,
matching the polarity
markings (+ and -) inside
the battery compartment.
Power on the extension ringer
Plug the small end of the
power adapter to the
power jack on the
extension ringer, and the
large end to the wall jack.
ADD AND REGISTER A EXTENSION RINGER
Add your new Ringer595 U.L.E extension ringer to your
telephone base. You only need to register if this is an
Power adaptor
)
), melody only (
), or all off (
)
),
)).
