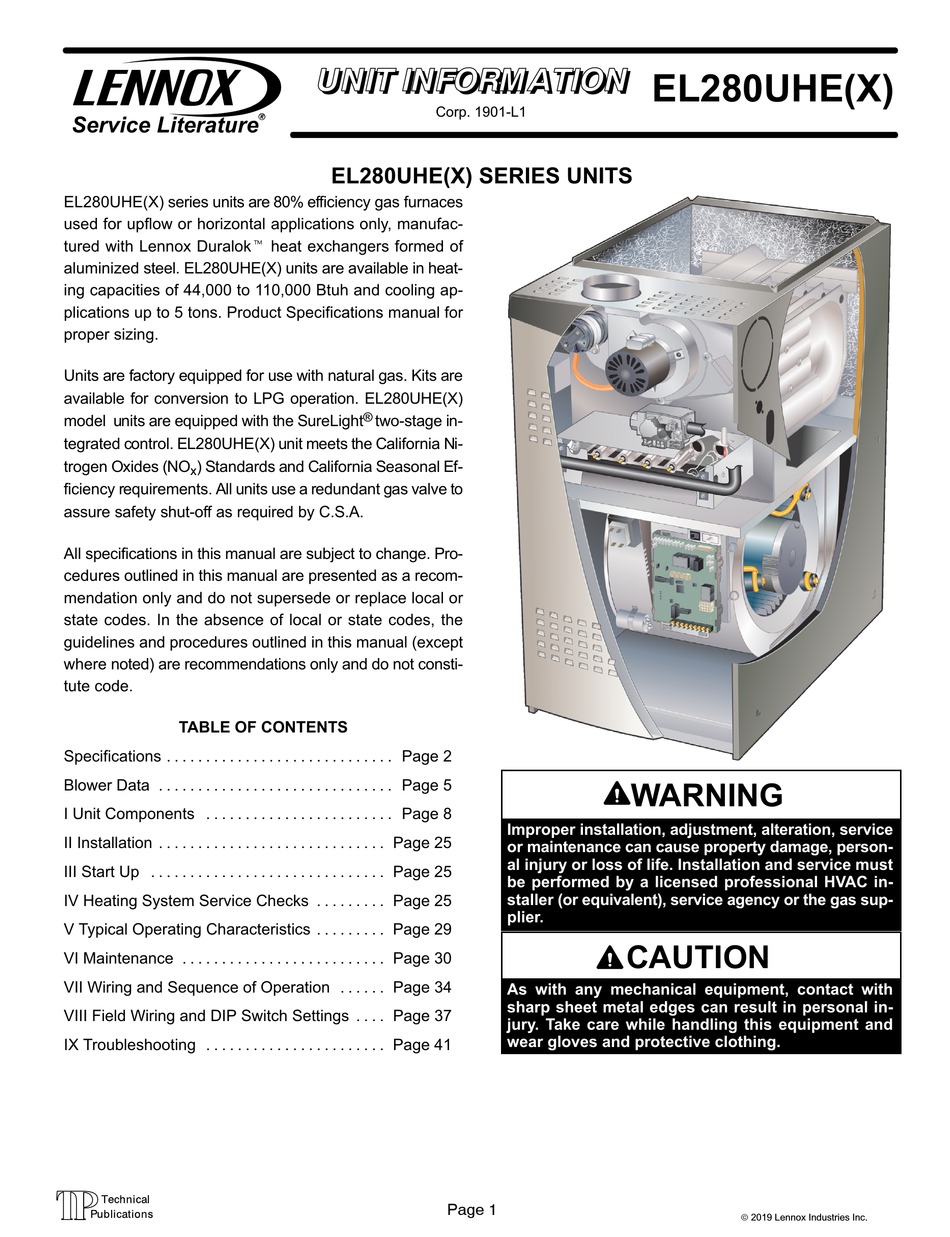

Service Literature
EL280UHE(X) series units are 80% efficiency gas furnaces
used for upflow or horizontal applications only, manufac­
tured with Lennox Duralokt heat exchangers formed of
aluminized steel. EL280UHE(X) units are available in heat­
ing capacities of 44,000 to 110,000 Btuh and cooling ap­
plications up to 5 tons. Product Specifications manual for
proper sizing.
Units are factory equipped for use with natural gas. Kits are
available for conversion to LPG operation. EL280UHE(X)
model units are equipped with the SureLight
tegrated control. EL280UHE(X) unit meets the California Ni­
trogen Oxides (NO
) Standards and California Seasonal Ef­
x
ficiency requirements. All units use a redundant gas valve to
assure safety shut-off as required by C.S.A.
All specifications in this manual are subject to change. Pro­
cedures outlined in this manual are presented as a recom­
mendation only and do not supersede or replace local or
state codes. In the absence of local or state codes, the
guidelines and procedures outlined in this manual (except
where noted) are recommendations only and do not consti­
tute code.
TABLE OF CONTENTS
Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Blower Data
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I Unit Components
. . . . . . . . . . . . . . . . . . . . . . . .
II Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
III Start Up
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
IV Heating System Service Checks
V Typical Operating Characteristics
VI Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . .
VII Wiring and Sequence of Operation
VIII Field Wiring and DIP Switch Settings
IX Troubleshooting
. . . . . . . . . . . . . . . . . . . . . . .
Corp. 1901-L1
EL280UHE(X) SERIES UNITS
®
two-stage in­
Page 2
Page 5
Page 8
Page 25
Page 25
. . . . . . . . .
Page 25
. . . . . . . . .
Page 29
Page 30
. . . . . .
Page 34
. . . .
Page 37
Page 41
Page 1
EL280UHE(X)
WARNING
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, person­
al injury or loss of life. Installation and service must
be performed by a licensed professional HVAC in­
staller (or equivalent), service agency or the gas sup­
plier.
CAUTION
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal in­
jury. Take care while handling this equipment and
wear gloves and protective clothing.
© 2019 Lennox Industries Inc.
