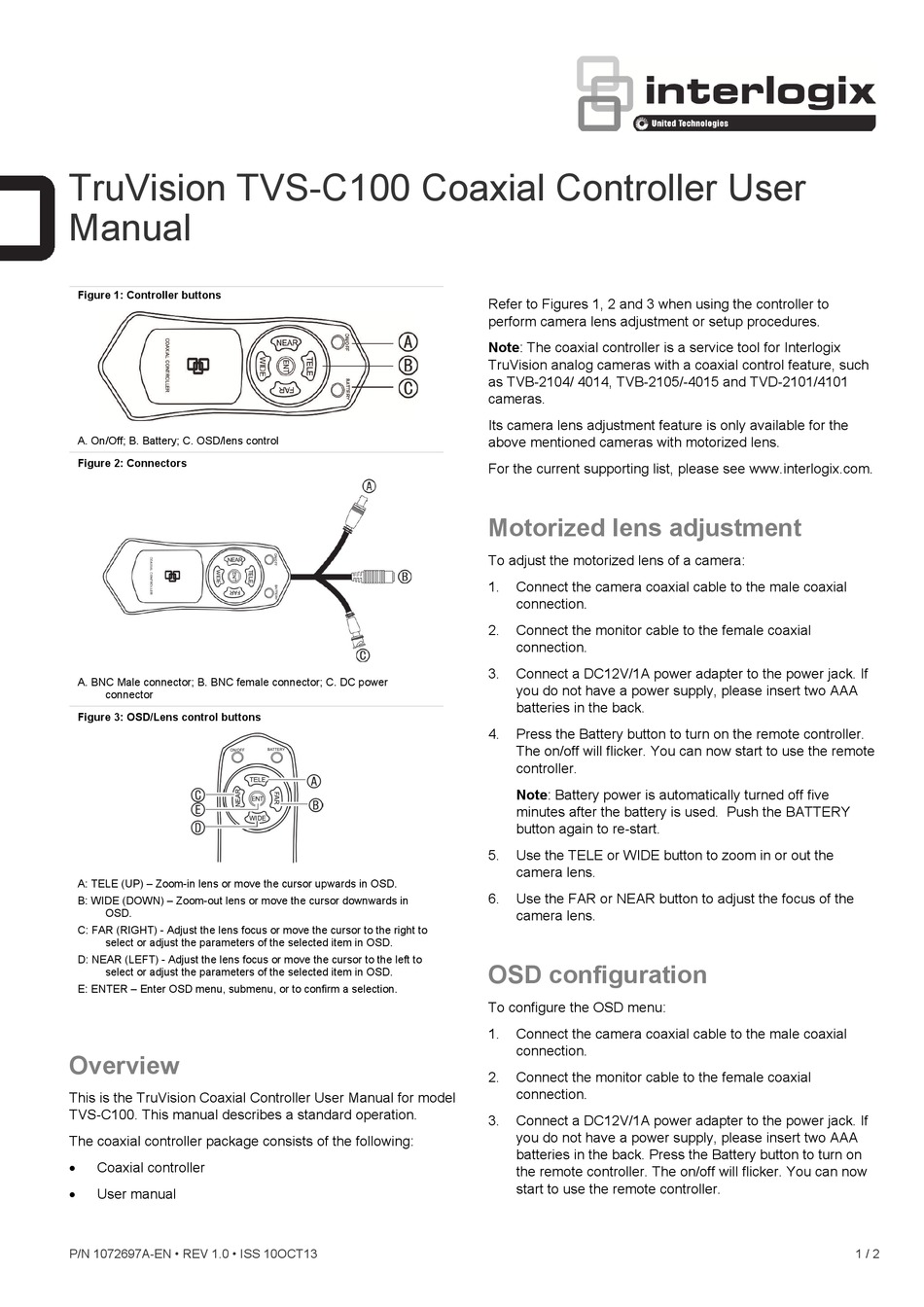

TruVision TVS-C100 Coaxial Controller User
Manual
Figure 1: Controller buttons
A. On/Off; B. Battery; C. OSD/lens control
Figure 2: Connectors
A. BNC Male connector; B. BNC female connector; C. DC power
connector
Figure 3: OSD/Lens control buttons
A: TELE (UP) – Zoom-in lens or move the cursor upwards in OSD.
B: WIDE (DOWN) – Zoom-out lens or move the cursor downwards in
OSD.
C: FAR (RIGHT) - Adjust the lens focus or move the cursor to the right to
select or adjust the parameters of the selected item in OSD.
D: NEAR (LEFT) - Adjust the lens focus or move the cursor to the left to
select or adjust the parameters of the selected item in OSD.
E: ENTER – Enter OSD menu, submenu, or to confirm a selection.
Overview

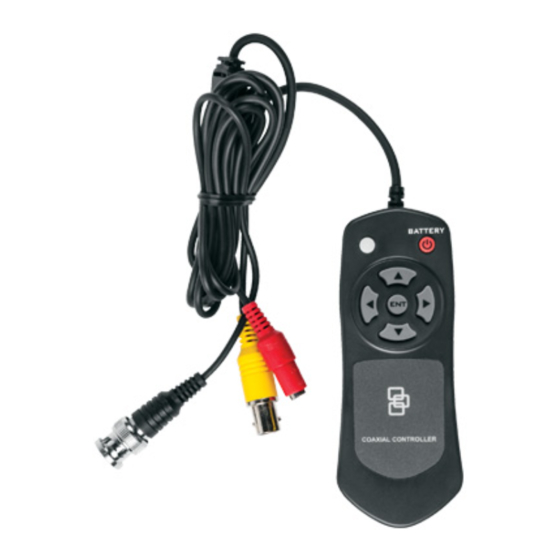

This is the TruVision Coaxial Controller User Manual for model
TVS-C100. This manual describes a standard operation.
The coaxial controller package consists of the following:

Coaxial controller

User manual
P/N 1072697A-EN • REV 1.0 • ISS 10OCT13
Refer to Figures 1, 2 and 3 when using the controller to
perform camera lens adjustment or setup procedures.
Note: The coaxial controller is a service tool for Interlogix
TruVision analog cameras with a coaxial control feature, such
as TVB-2104/ 4014, TVB-2105/-4015 and TVD-2101/4101
cameras.
Its camera lens adjustment feature is only available for the
above mentioned cameras with motorized lens.
For the current supporting list, please see www.interlogix.com.
Motorized lens adjustment
To adjust the motorized lens of a camera:
1. Connect the camera coaxial cable to the male coaxial
connection.
2. Connect the monitor cable to the female coaxial
connection.
3. Connect a DC12V/1A power adapter to the power jack. If
you do not have a power supply, please insert two AAA
batteries in the back.
4. Press the Battery button to turn on the remote controller.
The on/off will flicker. You can now start to use the remote
controller.
Note: Battery power is automatically turned off five
minutes after the battery is used. Push the BATTERY
button again to re-start.
5. Use the TELE or WIDE button to zoom in or out the
camera lens.
6. Use the FAR or NEAR button to adjust the focus of the
camera lens.
OSD configuration
To configure the OSD menu:
1. Connect the camera coaxial cable to the male coaxial
connection.
2. Connect the monitor cable to the female coaxial
connection.
3. Connect a DC12V/1A power adapter to the power jack. If
you do not have a power supply, please insert two AAA
batteries in the back. Press the Battery button to turn on
the remote controller. The on/off will flicker. You can now
start to use the remote controller.
