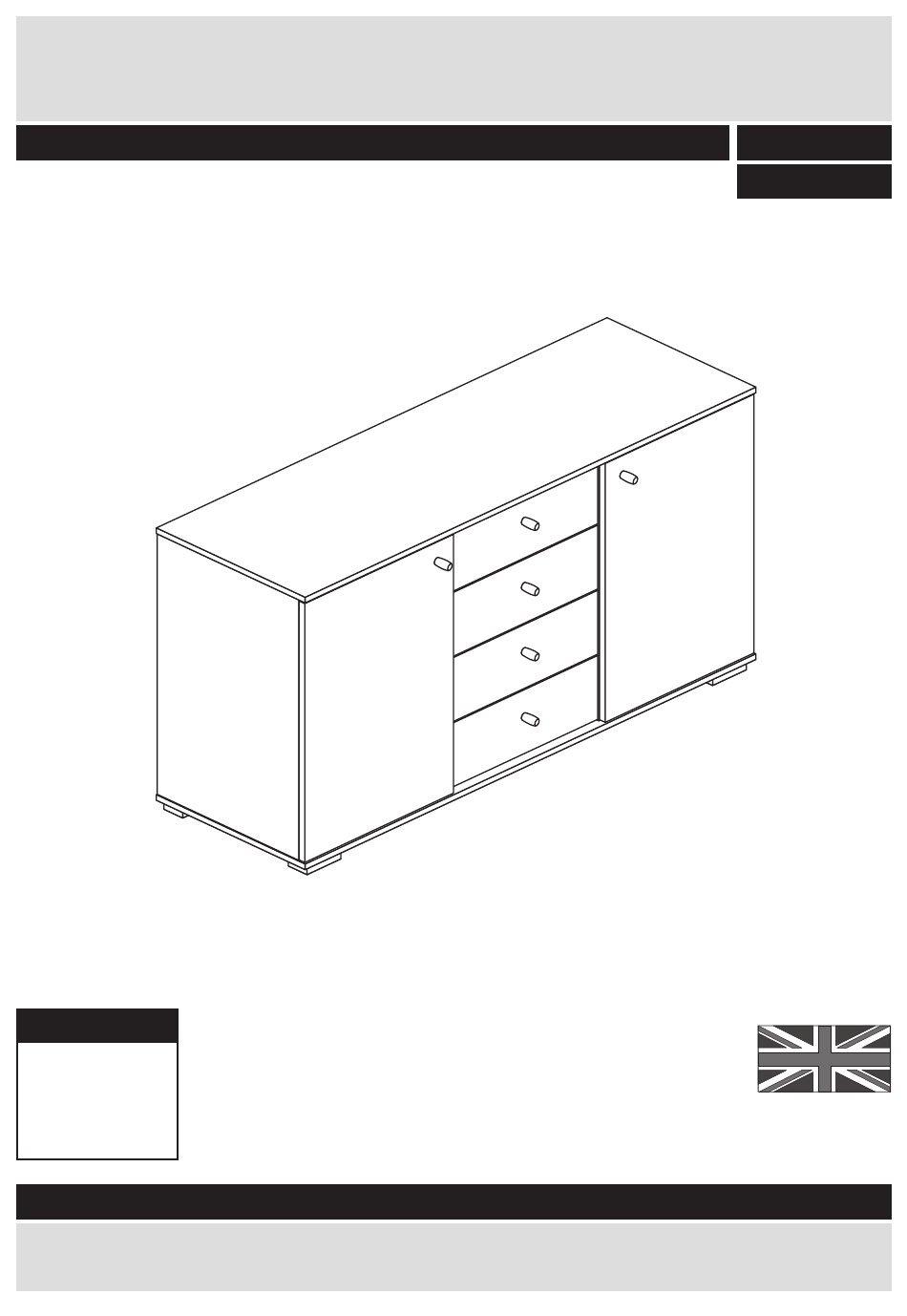

Montana - 4 Drawer 2 Door Sideboard
Assembly Instructions -
Dimensions
Width - 120cm
Depth - 40cm
Height - 75cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
404/3221
402/8019
MADE IN
BRITAIN
Issue 2 - 06/05/15
Advertisement
Related Manuals for Montana 404/3221
Summary of Contents for Montana 404/3221
- Page 1 Montana - 4 Drawer 2 Door Sideboard Assembly Instructions - 404/3221 Please keep for future reference 402/8019 Dimensions Width - 120cm Depth - 40cm MADE IN Height - 75cm BRITAIN Important - Please read these instructions fully before starting assembly...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 42kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left End Right End Left Divider Right Divider (DF3491) (DF3492) (DF3495) (DF3496) (695 x 378mm)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the 4 drawer fronts Screw 2 metal dowels into each of the drawer fronts Note: Tighten the metal dowels up fully against the panels.
-
Page 6: Table Of Contents
Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base... -
Page 7: Step 8
Assembly Instructions Step 8 Prepare the left end Insert 2 large locking nuts into the left end Finished front edge Fit 2 hinge plates onto the left end , making sure that the slot is facing towards the front edge. Step 9 Prepare the right end Insert 2 large locking... - Page 8 Assembly Instructions Step 11 Fit the sides to the top Push the left side and right side onto the top Polystyrene block Use a screwdriver to tighten the 4 large Finished Finished Polystyrene locking nuts fitted to front edge front edge block the left side and right...
-
Page 9: And
Assembly Instructions Step 13 Prepare the right divider Place 4 runners the right divider shown. Slide back the top of runner and use the 2nd hole from the front to fit the 1st screw Finished Slide the runner front edge back the other way and fit the 2nd screw into... - Page 10 Assembly Instructions Step 15 Fit the base Fit the base onto the assembly using 8 screws Finished front edge Step 16 Fit the feet Fit the feet to the base using screws...
-
Page 11: Back
Assembly Instructions Step 17 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that measurement x to x equals y to y. - Page 12 Assembly Instructions Step 19 Fit the drawers Starting with the bottom drawer, slide both the runners forward and locate the drawer sides between them, lining up the holes in the drawer wrap with the 2nd 'threaded' holes in the runners Working from the inside of the drawer, insert 2 screws...
-
Page 13: Using Screws H
Assembly Instructions Step 21 Fit doors and handles Note: The easiest way to attach each door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate. - Page 14 Assembly Instructions Step 22 Adjust the doors if needed Before adjusting the doors, use a spirit level to check the base (or top) of the unit is level, front-to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any adjustment to the hinges,...
- Page 15 Assembly Instructions Step 23 Example Attach the Attach the Fit the overbalance Screw strap to the wall strap to the unit protector kit Washer Wall fixing Strap To prevent possible Strap (not supplied) overbalancing we Washer recommend that this unit is secured to a suitable Screw wall by fitting of the...
- Page 16 ALR3148...
