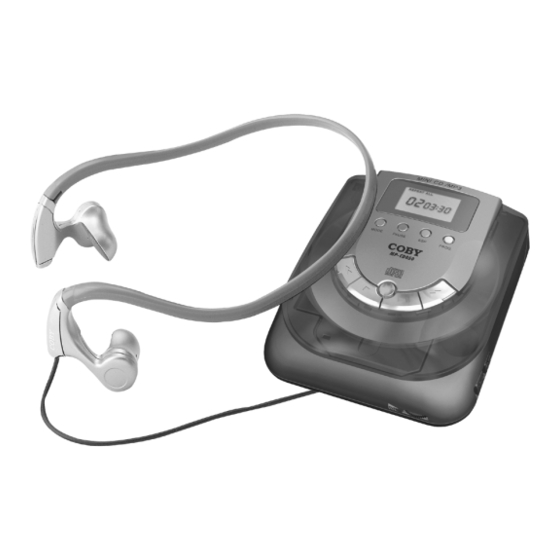

Coby MP-CD850 Instruction Manual

PERSONAL MINI 3" MP3/CD PLAYER with
1
120-SECOND ANTI-SKIP PROTECTION
MP-CD850
DC IN jack
PHONE jack
SELECT MODE button
CHARGE switch
ENTER/MUTE button
BACKWARD/
DEL. button
OPEN switch
DOWN/STOP button
Instruction Manual
NAME OF PARTS
INTRODUCTION
Please read and follow the instruction manual
carefully before operating in order to avoid any
A
damages to the unit. Any adjustment or repair
should be done by a qualified service center only
to receive warranty.
BATTERY OPERATION
Your unit operates on two(2) AA size alkaline batteries.
Open the CD cover and insert the batteries in the battery
compartment following the polarity diagram located
inside.
RE-CHARGEABLE BATTERY OPERATION
(RE-CHARGEABLE BATTERIES NOT INCLUDED)
You can operate this unit with two "AA" rechargeable
PROG button batteries. For new or exhausted rechargeable batteries,
FILE SEARCH/ we recommend to refer to battery manufacturer's
ANTI-SKIP button
guide.
FORWARD button
When operating the unit with AC adapter and
HOLD switch
non-rechargeable batteries in the compartment,
DBBS switch
please make sure to set the "Charge" switch
to "Off" position to avoid damaging the unit.
PLAY/UP button
1. Open the CD cover and insert the batteries (2*"AA") in
Volume control
the battery compartment following the polarity diagram
located inside.
BOTH BATTERIES MUST BE RECHARGEABLE NiCd
Volume to low listening level and press DBBS switch in
TYPES OTHER BATTERIES MAY EXPLODE OR LEAK.
the direction of the arrow to turn this function ON.
Note: Some CD's with DBBS may exceed the bass
2. Plug in AC adapter and slide the "CHARGE SWITCH"
to "ON" position to start charging. response capacity and can cause distortion. Do not play
DBBS in high volume. Playing DBBS in high volume may
3. Unplug the AC adapter after charging.
cause damage to the headphone and more importantly to
DO NOT CHARGE THE BATTERIES MORE THAN 24
(BATTERIES NOT INCLUDED)
your hearing.
HOURS OR MORE THAN RECOMMENDED TIME.
HOLD FUNCTION
OVERCHARGING MAY DETERIORATE THE PERFORM-
A N C E O F T H E R E C H A R G E A B L E B AT T E R I E S . This HOLD function prevents any unwanted function
changes during PLAY or STOP mode. Slide HOLD switch
4. If the operating time decrease drastically after the
to the arrow direction (or opposite) to turn the function
batteries have been recharged properly, purchase new
ON (OFF). No other function buttons operate on HOLD
rechargeable NiCd batteries.
Do not attempt to recharge alkaline batteries. This may mode, except DBBS function.
CAUTION
cause leakage and damage to the unit.
Do not mix alkaline batteries with rechargeable batteries.
Hearing experts advise against the constant use of
personal stereos played at high volume. Constant high
MONEY SAVING TIPS.
Due to the nature of CD technology, the unit uses power volume use can lead to hearing loss. If you experience
even when the unit is off. To extend the batteries' life, use ringing in the ears or hearing loss, discontinue use and
the adapter for indoor operation or where power is seek medical advice.
supplied. Use the battery operation only when the unit is in
mobile.
DBBS FUNCTION
To remove the disc from its storage case, press down on
the center of the case and lift the disc out. Hold it carefully
The Dynamic Bass Boost System(DBBS) enhances the
by the edges as shown below.
low frequency(Bass) response of the output. Set the
Insert the disc into the unit with the label of the disc
IMPORTANT
facing up.
Gently wipe the disc using a soft cloth from the center The CD mechanism and the sensitive circuitry may
to the outer direction to remove dust, fingerprints or any cause interference to a radio tuner nearby. Do not
operate this unit while operating other radio devices.
other particles on the disc surface. Never use
chemicals, such as record sprays, anti-static sprays, Danger This product utilizes invisible laser
benzene or thinners to clean the CD. These chemicals radiation. Avoid direct exposure
c a n d a m a g e t h e d i s c s u r f a c e p e r m a n e n t l y. to the beam.
Caution Use of controls, adjustments or procedures
To avoid serious scratches on CD, keep them in the
cases after each use. Scratches can cause the laser
not listed in this manual may result in
pick-up skip in the future play.
.
hazardous radiation exposure
Do not place stickers or write anything on the disc.
CONCERNING COMPACT DISCS
Only compact discs identified with this
mark can be used with this player.
CD MODE
Read the instruction manual before operating this unit.
Do not expose the unit to high temperature or humidity.
Use dampened soft cloth to clean the unit. Do not use
strong detergent or solvent to clean the unit.
POWER ON AUTO PLAY
Ensure that all electrical connections(including the main
(1) Press PLAY/PAUSE ( )button to turn the power on.
plug, extension leads and interconnections between
FIRST LCD screen will display
pieces of equipment) are properly made and in
"HELLO wellcome" .
accordance with the manufacture's instructions.
THEN LCD screen will display
Consult your dealer if you are ever in doubt about the
"wellcome to CDMP3" .
installation, operation or safety of your equipment.
(2)
LCD screen will display "NO DISC", if CD is not in the
unit.
(3)
LCD screen will display " NO CDMP3 " if the unit
cannot read CD track data.
(4)
When CD track data has been read, Unit will start play from No.1
automatically. LCD SCREEN will display the play time.
STOP
(1) Press STOP ( )button to stop play , LCD screen will
display the last track number and total play time.
press STOP button again, LCD screen display
"Good bye".
PAUSE
(1)
Press PLAY/PAUSE button to pause on/off alternately,
and the time will flash.
LISTEN TO DESIRED TRACK
(1) Press FF (or REW ) button to set the desired
track#, press PLAY/PAUSE ( )button to play. Press
FF (or REW ) button to change the track# during
the play mode.
Press FF button
