Climatix™
HMI-LED POL831.25/STD
Basic Documentation
CB1P3946en
2013-08-19
Building Technologies

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Climatix HMI-LED POL831.25/STD and is the answer not in the manual?

Questions and answers

Summary of Contents for Siemens Climatix HMI-LED POL831.25/STD

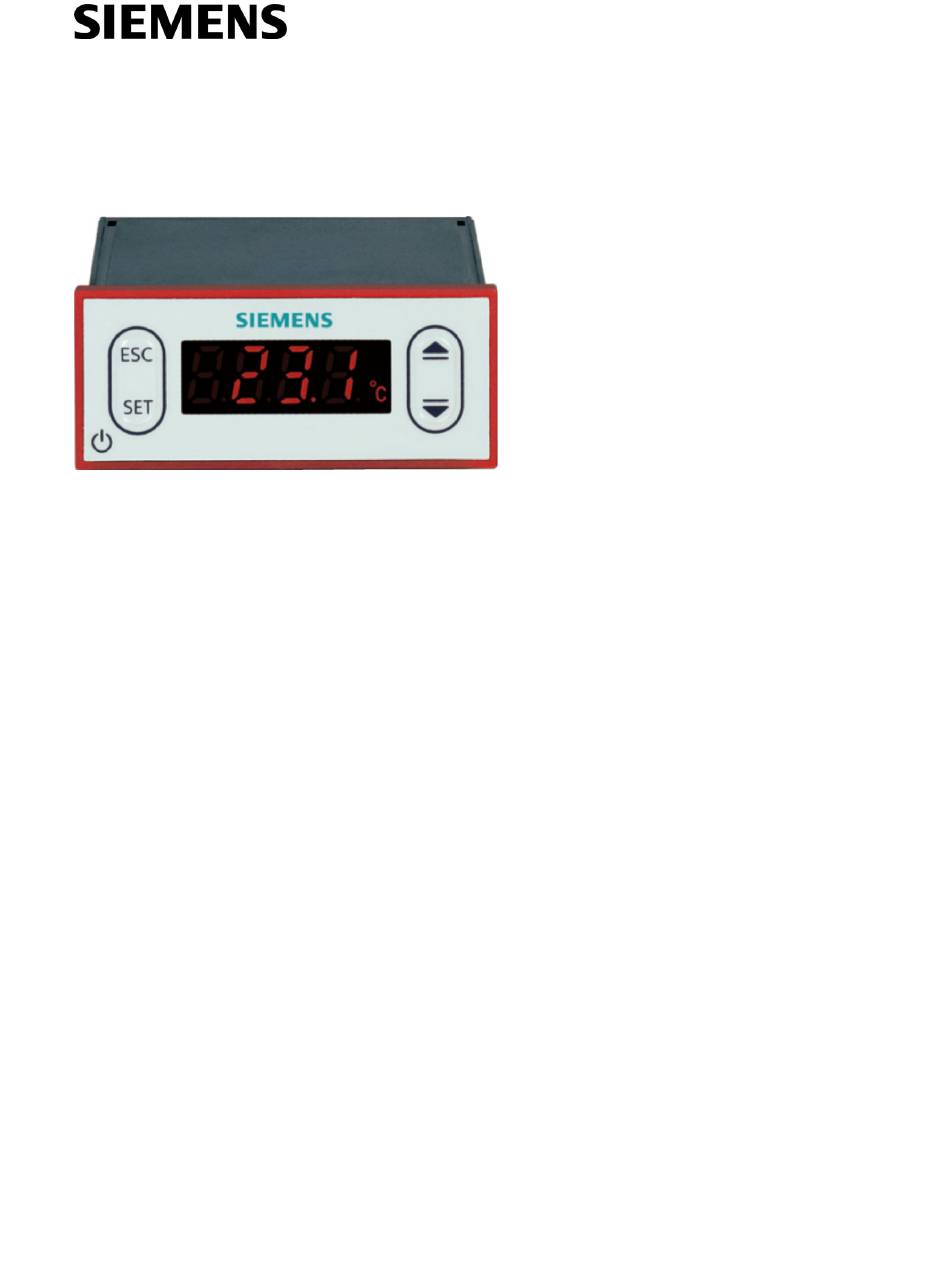

  • Page 1 Climatix™ HMI-LED POL831.25/STD Basic Documentation CB1P3946en Building Technologies 2013-08-19...
  • Page 2 Siemens Switzerland Ltd. Building Technologies Group International Headquarters Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 Fax +41 41-724 35 22 © 2012 (-2013) Siemens Switzerland Ltd. www.siemens.com/sbt Subject to change 2 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 3: Table Of Contents

    Display value configuration ..............16 4.3.1 Temperature display...............16 4.3.2 Humidity display..............17 4.3.3 Input register................17 4.3.4 Input register quantity.............17 Parameter configuration..............18 Alarm management................18 Password management ..............20 Appendix - Modbus register list..............21 3 / 26 Siemens HMI-LED CB1P3946en Building Technologies Table of contents 2013-08-19...
  • Page 4: Introduction

    Operation The Climatix HMI-LED product can only be operated by personnel who have been instructed by Siemens Building Technologies or their delegates and whose attention has been drawn to potential risks. Wiring When wiring the system, high voltage section must be strictly segregated from the...
  • Page 5: Typographical Conventions

    This document provides information regarding the Climatix HMI-LED device, including the functions and operations. The target readers of this document are technical personnel of Siemens OEM customers, who may use the information provided in this document to write user manual for dedicated application.
  • Page 6: Hmi-Led Overview

    To indicate the current value is neither Others No indication temperature nor humidity * All the pressing and holding operations in this document should last for more than 2 seconds (the same below). 6 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED overview 2013-08-19...
  • Page 7: Display Examples

    Local connection The local connection is a peer-to-peer connection between the HMI-LED and one controller (Climatix POL 400/600 controller). The HMI-LED provides a female RJ45 plug for standard net cable. 7 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED overview...
  • Page 8: Communication Protocol And Interface

    Baud rate 9600 Parity Data bits Stop bits Communication Define the Climatix controller T-HI port as Modbus slave in SCOPE, and configure settings the “target” member “ModbusOverservice” as “Active”. 8 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED overview 2013-08-19...
  • Page 9: Hmi-Led

    The alarm list page only shows the latest alarm with alarm code. Default pages The HMI-LED provides the following three default pages, which could be displayed automatically under certain circumstances. Offline (OFFL) page Present value list page Alarm page 9 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED page introduction 2013-08-19...
  • Page 10: Offline (Offl) Page

    HMI-LED screen for up to 5 minutes unless users press key ESC. Press and hold key UP/DOWN on the default page to switch the screen display among the predefined value list pages (VL01…VL50). 10 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED page introduction...
  • Page 11: Parameter List Page Or Alarm History Page Transition

    On the default page, press and hold key UP/DOWN to switch to the value list page value (VL01 …VL50). Press key UP/DOWN to switch among the value list pages. Press key SET to display the selected value. 11 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED page introduction...
  • Page 12: Parameter List Page

    Only the latest alarm could be displayed on this page. When a new alarm occurs, the new alarm code will replace the old one which will be moved the alarm history page. 12 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 13: Alarm History Page

    History alarms clean Press and hold key SET+ESC on the alarm history page to clear the records of dismissed history alarms. 13 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED page introduction 2013-08-19...
  • Page 14: Hmi-Led Programming

    SAPRO, such as aoAnaloginput etc, and the objects where the engineering unit and factional digital are stored. Then the objects need to be mapped in SCOPE. Here is an example about how to program with mapping method in SAPRO. 14 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 15: Hot Key Configuration

    Alarm Acknowledgement When an alarm occurs, press key SET+DOWN to acknowledge the alarm. After the alarm is dismissed, the corresponding alarm code will be moved to alarm history list. 15 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED Programming 2013-08-19...
  • Page 16: Alarm History Records Clean Up

    The temperature variable is sent to the Input register 2, and the “VL_Unit” needs to be defined as “1”. If the temperature variable is with one factional digital, the “VL_Factional” should also be defined as “1”. 16 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 17: Humidity Display

    The Input register quantity should be defined as “50” in the Input register 135. Max. 5 values can be displayed alternately on the default page, which can be defined by users as below. 17 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 18: Parameter Configuration

    For dismissed or acknowledged alarms, press key SET+DOWN to acknowledge the alarms. Max. 32 alarms can be recorded in history list by FIFO. The handling procedures of current alarm and history alarms need to be done in SAPRO. 18 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED Programming...
  • Page 19 Current alarms are saved to the Input register 101. History alarms History alarms are saved to the Input register 102…133. Note: This part is programmed in the application example. 19 / 26 Siemens HMI-LED CB1P3946en Building Technologies HMI-LED Programming 2013-08-19...
  • Page 20: Password Management

    The data type of password is “string”, so its function block is different from the normal parameter reading via “AccessDB”. The Holding register 100 is displayed as “PLA0” on the HMI-LED screen. 20 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
  • Page 21: Appendix - Modbus Register List

    VL42 30042 VL43 VL43 30043 VL44 VL44 30044 VL45 VL45 30045 VL46 VL46 30046 VL47 VL47 30047 VL48 VL48 30048 VL49 VL49 30049 VL50 VL50 30050 21 / 26 Siemens HMI-LED CB1P3946en Building Technologies Appendix - Modbus register list 2013-08-19...
  • Page 22 CFG-VL38 30088 CFG-VL39 30089 CFG-VL40 30090 CFG-VL41 30091 CFG-VL42 30092 CFG-VL43 30093 CFG-VL44 30094 CFG-VL45 30095 CFG-VL46 30096 CFG-VL47 30097 CFG-VL48 30098 CFG-VL49 30099 CFG-VL50 30100 22 / 26 Siemens HMI-LED CB1P3946en Building Technologies Appendix - Modbus register list 2013-08-19...
  • Page 23 -999~9999 Read/Write PL43 40043 PL44 40044 PL45 40045 PL46 40046 PL47 40047 PL48 40048 PL49 40049 PL50 40050 PL51 40051 PL52 40052 PL53 40053 PL54 40054 23 / 26 Siemens HMI-LED CB1P3946en Building Technologies Appendix - Modbus register list 2013-08-19...
  • Page 24 PL88 40088 PL89 40089 PL90 40090 PL91 40091 PL92 40092 PL93 40093 PL94 40094 PL95 40095 PL96 40096 PL97 40097 PL98 40098 PL99 40099 PL100 40100 24 / 26 Siemens HMI-LED CB1P3946en Building Technologies Appendix - Modbus register list 2013-08-19...
  • Page 25 HL20 30121 HL21 30122 HL22 30123 HL23 30124 HL24 30125 HL25 30126 HL26 30127 HL27 30128 HL28 30129 HL29 30130 HL30 30131 HL31 30132 HL32 30133 25 / 26 Siemens HMI-LED CB1P3946en Building Technologies Appendix - Modbus register list 2013-08-19...
  • Page 26 Siemens Switzerland Ltd. Building Technologies Group International Headquarters Gubelstrasse 22 CH-6301 Zug Tel. +41 41-724 24 24 Fax +41 41-724 35 22 © 2012 (-2013) Siemens Switzerland Ltd. www.siemens.com/sbt Subject to change 26 / 26 Siemens HMI-LED CB1P3946en Building Technologies...
