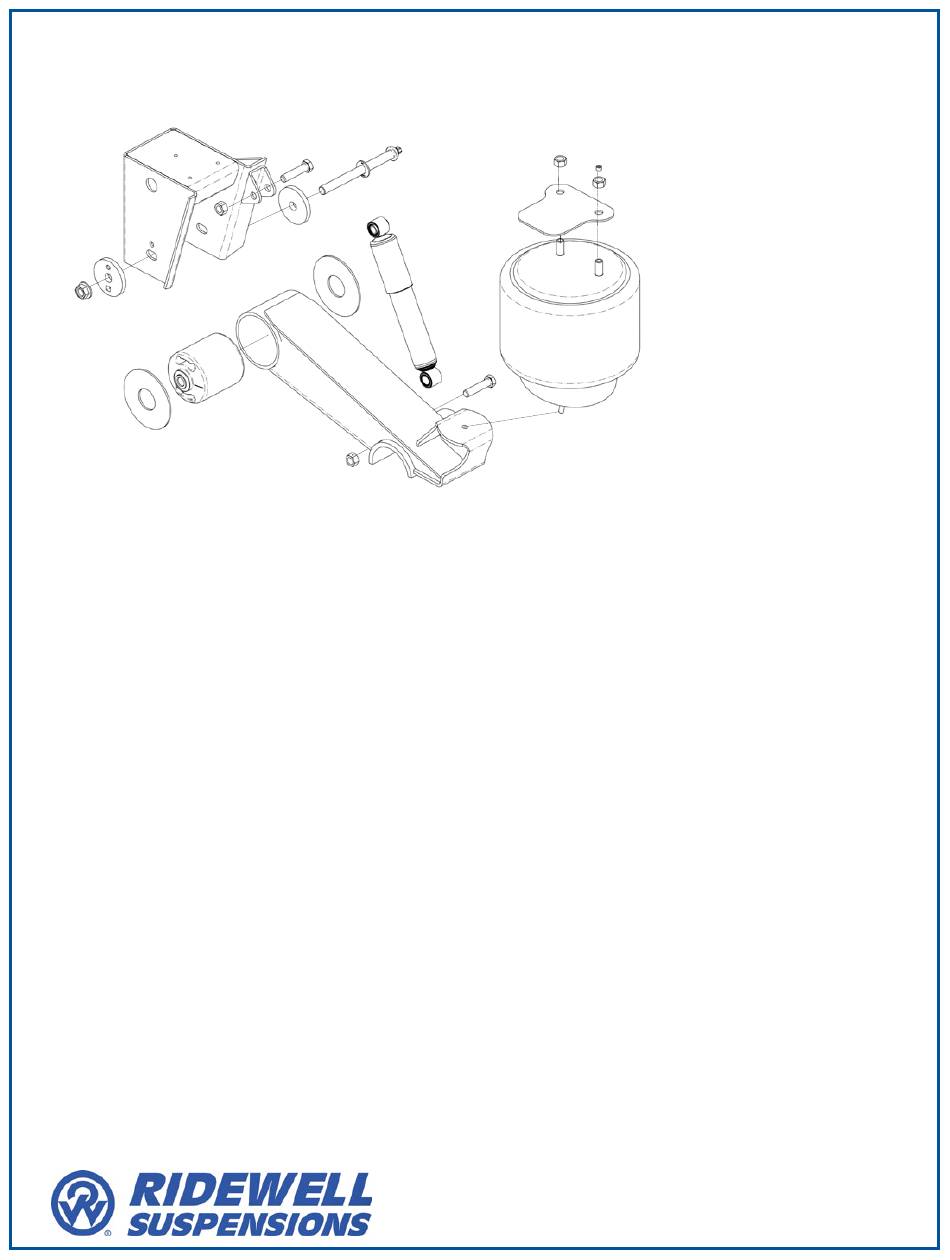

RAR-260

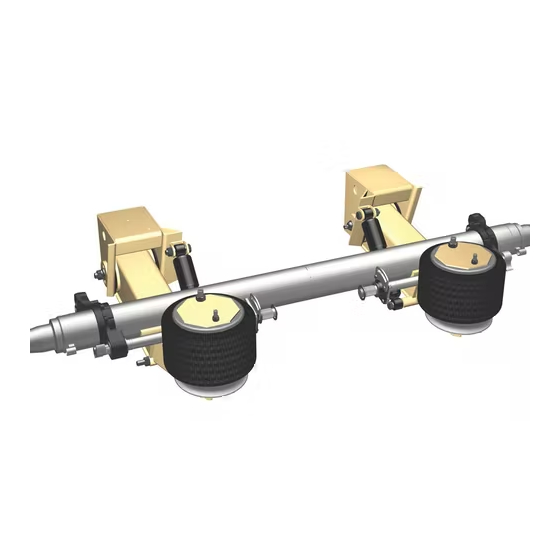

Trailer Air-Ride Suspension
Installation and Service Manual
Suspension Identification ---------------------------------------2
Prior to Installation ----------------------------------------------------------------- 3
Axle Integration --------------------------------------------------------------------- 4
Suspension Mounting --------------------------------------------------------------- 6
Recommended Service Intervals -----------------------------------------------------8
Parts Illustrations
RAR-260-30K Overslung -------------------------------------------------------- 9
RAR-260-25/30K Underslung -------------------------------------------------10
RAR-260-25K Yoke Mount -----------------------------------------------------11
Axle Alignment ----------------------------------------------------------------------- 15
Warranty ------------------------------------------------------------ 16
Part No.: 9710104
Doc:
260-Trailer-ISM-RevK-03-11-21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAR-260 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ridewell Suspensions RAR-260

  • Page 1: Table Of Contents

    Height Control Valve Installation – Troubleshooting ---------------------------- 7 Maintenance Recommended Service Intervals -----------------------------------------------------8 Parts Illustrations RAR-260-25K Overslung RAR-260-30K Overslung -------------------------------------------------------- 9 RAR-260-15K Underslung RAR-260-25/30K Underslung -------------------------------------------------10 RAR-260-25K Yoke Mount -----------------------------------------------------11 Overslung/Underslung – Bushing Replacement/Torque Specifications ------ 12 Yoke Mount – Bushing Replacement/Torque Specifications ------------------- 14...
  • Page 2: Suspension Identification

    SUSPENSION IDENTIFICATION Introduction The Ridewell Air Ride (RAR) 260 Trailer Suspen- sion is available in an overslung, underslung or yoke mount configuration. The suspension can be pur- chased with or without an integrated axle. PART NO: Refer to the engineering drawing for detailed infor- SUSP.
  • Page 3: Installation

    • If vehicle chassis modifications are required, con- sult with the vehicle manufacturer to ensure that such changes are permitted. • Welding or altering suspension components is not permitted without the express written permission of Ridewell Suspensions. 260-Trailer-ISM-RevK-03-11-21 Page 3 Back To TOC ...
  • Page 4: Axle Integration

    Axle Integration Suspension systems are available with and without a factory integrated axle. Customer-supplied axle assemblies must be positioned and oriented (rotated) properly before welding the axle to the axle seats. Use the top-center mark on the axle, if available, to identify the center of the axle and orient the axle as- sembly on the suspension.
  • Page 5 ROOT 1/2" SECOND PASS 3/8" PASS THIRD 1/8" MAX PASS AXLE AXLE AXLE AXLE 1/2" BEAM AXLE SEAT BEAM AXLE SEAT BEAM AXLE SEAT BEAM AXLE SEAT THIRD PASS WELD JOINT PREPARATION FIRST PASS SECOND PASS ARC START ARC START ARC STOP ARC STOP THIRD PASS...
  • Page 6: Suspension Mounting

    Suspension Mounting Final Assembly and Inspection Refer to the engineering drawing for available ride • Verify the welds of the hanger and air spring heights; the recommended locations of any customer- mounting plates. furnished filler plates and supporting crossmembers; the torque values; and the spacing and clearance •...
  • Page 7: Height Control Valve Installation - Troubleshooting

    The Ridewell Extreme Air Height Control Kit (HCK) automatically adds and exhausts air from the air sus- ® pension to maintain the vehicle ride height. The (HCK) assembly consists of a lever connected to the height control valve (HCV) and a vertical rod arm (vertical linkage) connected to the suspension/axle (Figure 5). Refer to the Extreme Air installation guide for installation procedures.
  • Page 8: Maintenance

    MAINTENANCE Recommended Service Intervals Ridewell Suspensions recommends the following minimum service intervals for standard duty, on-highway usage applications. More frequent intervals are recommended for heavier duty applications. Daily/Pre-Trip Inspections Every 12,000 miles of use Inspect air springs for damage/excessive wear.
  • Page 9: Rar-260-25K Overslung

    Figure 6. RAR-260- Hanger 25K Overslung (Left-Hand shown) Alignment Washer Bolt Pipe Plug (Shock Absorber) Refer to suspension (Hex Socket) Pivot Bolt model engineering (Shear-Type) drawing for the com- Mounting Plate (Air Spring) ponent part number. Flat Washer Adjuster Locknut...
  • Page 10: Rar-260-15K Underslung

    Figure 8. RAR-260- 15K Underslung Flat Washer Pivot Bolt Refer to suspension Alignment (Shear-Type) Washer model engineering Locknut Hanger Mounting Plate drawing for the com- (Left-Hand shown) (Air Spring) ponent part number. Adjuster Plate Upper Bolt/Locknut (Shock Absorber) Pivot Nut...
  • Page 11: Rar-260-25K Yoke Mount

    Figure 10. Trailer Frame Crossmember on trailer frame RAR-260- (Left-Hand shown) Shock absorber mounting bracket 25K Yoke Mount Refer to suspension model engineering Outer Bushing Sleeve Upper Bolt/Locknut drawing for the com- (welded into trailer frame) (Shock Absorber) ponent part number.
  • Page 12: Overslung/Underslung - Bushing Replacement/Torque Specifications

    rar 260 o – b Verslung nderslung uspension usHing eplaCement orque peCifiCations Part Number Torque Values (Component) Item Description Size foot-pound Newton-meter Do not lubricate bolt/nut threads. 6040098-Bushing Kit Pivot Bolt/Nut-(Shear-Type Bolt/Locknut) 7/8”-9NC Use 1”-drive impact wrench to 6100051-Wide Tool Requires E-20 Torx socket (RW #6100054) ®...
  • Page 13 Replacement Procedure with Bushing Tool #6100051 (continued) Tool Assembly-Installation Center the bushing tool cone on the beam eye. Use a 1 1/4” socket and 3/4-drive impact wrench Place flat washer, the bearing collar, and the end-cap (1”-drive impact wrench recommended) to rotate assembly on the hex-head bolt.
  • Page 14: Yoke Mount - Bushing Replacement/Torque Specifications

    rar 260 Y – b ount uspension usHing eplaCement orque peCifiCations Torque Values Part Number (Component) Item Description Size foot-pound Newton-meter Do not lubricate bolt/nut threads. Pivot Bolt/Nut - (Shear-Type Bolt/Locknut) 7/8”-9NC 6040099-Bushing Kit Use 1”-drive impact wrench to Requires E-20 Torx socket (RW #6100054) ®...
  • Page 15: Axle Alignment

    Axle Alignment Alignment should be performed on a level surface with the suspension at the desired ride height. Align the suspension per TMC- or SAE-recommended standards. On a multiple-axle vehicle, the forward axle is moved into proper alignment, then the remaining axles are positioned so that they are parallel to the forward axle.
  • Page 16: Warranty

    Terms and coverage in this warranty apply only to the United States and Canada. Ridewell Suspensions warrants the suspension systems manufactured by it to be free of defects in mate- rial and workmanship. Warranty coverage applies only to suspensions that have been properly installed, maintained and operated within the rated capacity and recommended application of the suspension.
