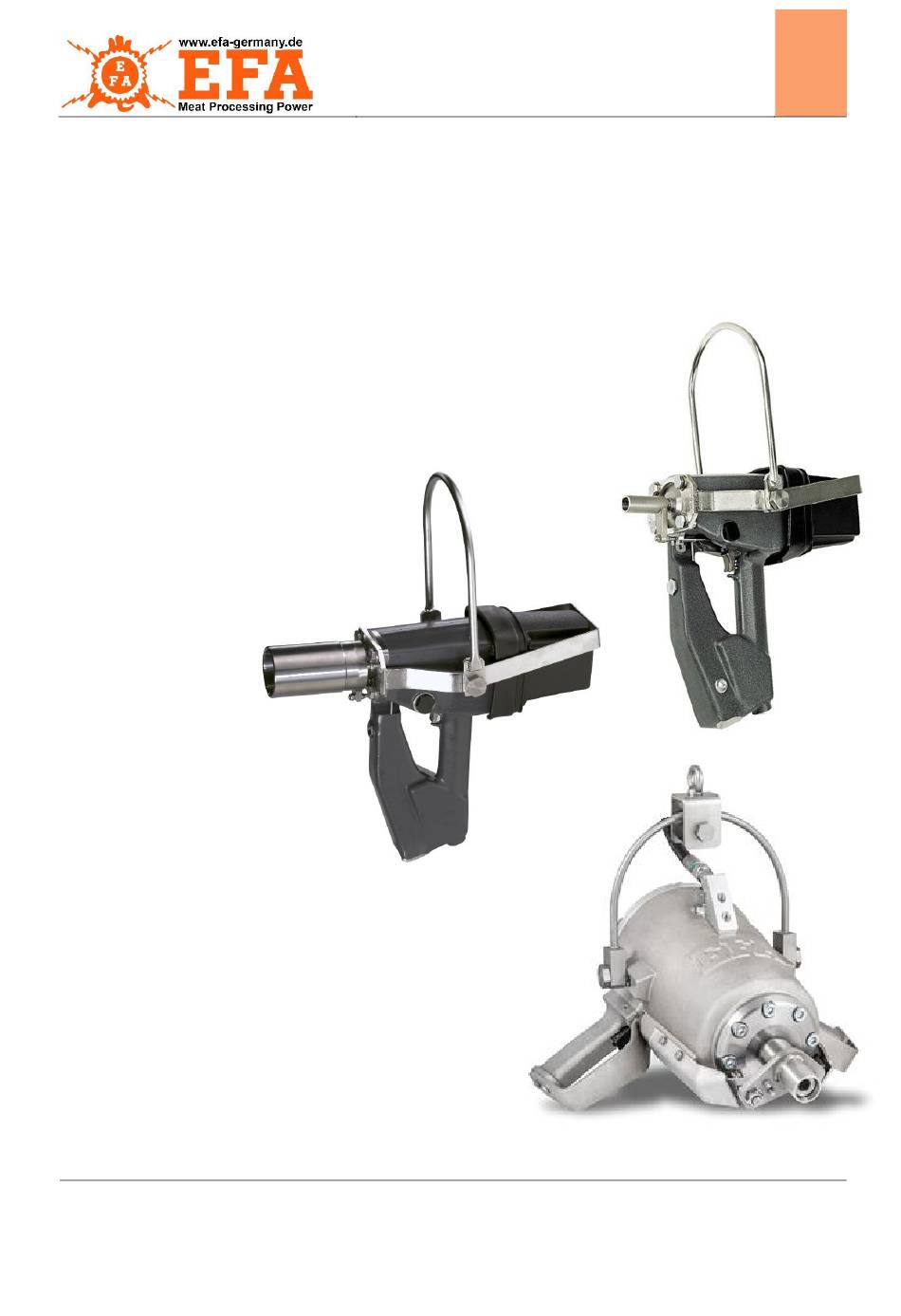

- Page 1 EFA stunning device Original operating instructions EFA stunning device EFA VB 215 EFA VB 225 EFA VB 316 Rev. 00 – 07.2020 Schmid & Wezel GmbH www.efa-germany.com...
- Page 2 EFA stunning device Original operating instructions Original operating instructions Schmid & Wezel GmbH. All rights reserved. Printed in Germany. These original operating instructions must not be reproduced in whole or in part, used for competitive purposes without our authorisation, or made available to third parties without our consent.
-
Page 3: Table Of Contents
EFA stunning device Original operating instructions Table of contents 1 Introduction and general information ______________________________________________________ 2 1.1 Information on the operating instructions ______________________________________________________ 2 1.2 User group _____________________________________________________________________________ 2 1.3 Scope of supply __________________________________________________________________________ 3 1.4 Intended use ____________________________________________________________________________ 3 1.4.1 Residual hazards ___________________________________________________________________ 4 1.5 Claims for defects, liability, warranty __________________________________________________________ 4... -
Page 4: Introduction And General Information
EFA stunning device Original operating instructions Introduction and general information Important! Operating instructions cannot prevent misuse in every case! Information on the operating instructions These operating instructions are part of the technical documentation of the machine and comply with the Machinery Directive. -
Page 5: Scope Of Supply
The stunning device is operated with compressed air. Areas of application EFA VB 215 Stunning device for the stunning of heifers, cows and bulls with an impact depth of 101 mm. EFA VB 225 Stunning device for the stunning of heifers, cows and bulls without penetration hole (concussion shot). -
Page 6: Residual Hazards
EFA stunning device Original operating instructions 1.4.1 Residual hazards As the stunning device is intended for industrial use on carcasses, there is a possibility of injury or, in case of gross misuse, of fatal injury. Therefore, in case of misuse, the possibility of immediate death or death by blood loss must be expected. -
Page 7: Safety
EFA stunning device Original operating instructions Safety Everyone who is involved in the installation, start-up, operation, set-up, equipping and maintenance of the stunning device in the operating company must have read and understood the operating instructions, in particular the "Safety" chapter. Safe operation of the machine is only guaranteed if: ... -
Page 8: Other Safety Signs
EFA stunning device Original operating instructions 2.1.1 Other safety signs Symbol Meaning Mark of conformity! The machine complies with the applicable regulations of the EC Machinery Directive. Recyclable materials! Ensure that the materials are recycled properly! 2.1.2 Warning sign Warnings and symbols used in the operating instructions and documentation are intended to help you to recognise and assess the dangers more easily. -
Page 9: Prohibition Sign
EFA stunning device Original operating instructions 2.1.4 Prohibition sign Symbol Meaning General prohibition sign! The red signal border/prohibition stripe indicates an immediate danger and is overlaid diagonally over the self-explanatory symbol. The general prohibition sign must always be used in conjunction with another sign. -
Page 10: Technical Description
EFA stunning device Original operating instructions Technical description Tab. 3.1 Technical data Description EFA stunning device VB 215 VB 225 VB 316 130109610 130109621 130109671 Operating pressure Air consumption per shot Compressed air connection Inch R 3/8" Firing pin (effective length) Ø... -
Page 11: Dimensions
EFA stunning device Original operating instructions Dimensions The following figures give you an overview of the dimensions of the stunning device. EFA VB 215 (part no. 130109610) EFA VB 225 (part no. 130109621) Rev.01 – 01.2021 9 of 28... -
Page 12: Nameplate
EFA stunning device Original operating instructions EFA VB 316 (part no. 130109671) Nameplate The nameplate is attached to the machine and contains information on the machine performance. The following figure shows an example of the nameplate for EFA machines. Year of production Machine designation Part number Serial number... -
Page 13: Transport And Storage
EFA stunning device Original operating instructions Transport and storage The machine has been tested and carefully checked in our factory before shipment. The test ensures that the machine is working properly. Despite all care taken, there is a possibility that the machine could be damaged during transport. Therefore, check the machine for possible transport damage when unpacking it. -
Page 14: Connection And Start-Up
EFA stunning device Original operating instructions Connection and start-up Initial start-up Caution! Ensure that the stunning device is switched off prior to connecting it to the plant network. 5.1.1 Spring balancer VB 316 The stunning device must always be operated in combination with a weight relief device (spring Spring balancer balancer), see Fig. -
Page 15: Compressor
EFA stunning device Original operating instructions 5.1.2 Compressor A compressor unit is provided for the operation of the stunning device (see separate operating manual and Appendix -A2-). 5.1.3 Oil mist lubricator VB 316 See the separate operating manual. 5.1.4 Connection of the stunning device Plug-type fitting Caution! Installation work is only allowed to be... -
Page 16: Uncoupling The Stunning Device
EFA stunning device Original operating instructions Important! The device is not protected against exceeding the max. operating pressure of: 12 bar – VB 215 12 bar – VB 225 14 bar – VB 316 5.1.5 Uncoupling the stunning device Pull back the knurled sleeve of the safety rapid action coupling (A), see Fig. -
Page 17: Handling
EFA stunning device Original operating instructions Handling Working with the stunning device Important! The stunning device must not be used before the operator has read these operating instructions and the device has been connected correctly! Caution! Never reach into the area of the bolt when the device is connected! Caution! Never point the device at people! -
Page 18: Working
EFA stunning device Original operating instructions 6.2.2 Working Caution! Place the device on the head of the animal for stunning ( ), as shown in Fig. 6.2 – Stunning points. Caution! The operator's head must be positioned to the side of the device in order to avoid injury in case of possible kick back of the stunning device! - Page 19 EFA stunning device Original operating instructions Not completely inserted bolt Caution! If the bolt is not fully retracted prior to the stunning, the stunning device will kick back when firing. An unfavourable positioning or movement of the animal's head in relation to the stunner can jam the bolt while withdrawing.
-
Page 20: Operational Safety
EFA stunning device Original operating instructions 6.2.4 Operational safety Hold the machine securely. The device must be guided by the handle and the hoop (VB 215 and VB 225) or by both handles (VB 316). Be especially careful when switched on. ... -
Page 21: Cleaning
EFA stunning device Original operating instructions Cleaning Danger! Only carry out cleaning work when the stunning device is disconnected from the compressed air network. Danger! Observe the safety and hygiene requirements! Note! Clean the device in hot water with a cloth or sponge. -
Page 22: Maintenance And Repair
EFA stunning device Original operating instructions Maintenance and repair Maintenance Note! Observe all safety instructions. Danger! Maintenance work is only allowed to be carried out by qualified and instructed personnel. Danger! Disconnect the stunning device from the VB 215 and VB 225 compressed air network before maintenance work. -
Page 23: Wear
EFA stunning device Original operating instructions 8.1.3 Wear Check the cushion(s) after about 50,000 (VB 215 and VB 225) or 15,000 (VB 316) operations (shots) and replace if damaged! VB 316 The valve slide should be replaced if the axially sealing O-ring repeatedly falls out after a few shots. If wear marks are visible on the flat surface of the guide pipe, replace it. -
Page 24: Return
EFA stunning device Original operating instructions Danger! Only use genuine spare parts. The EFA Service department of Schmid & Wezel GmbH is at your disposal for repairs. In the event of faults that cannot be clearly localised, the machine should always be returned to Schmid & Wezel GmbH for repair. -
Page 25: Waste Disposal - Recycling
EFA stunning device Original operating instructions Waste disposal – recycling The machine must be disposed of in accordance with the valid legal regulations of the respective countries. Disassembly and disposal Old and used machines contain reusable materials that can be recycled. During disposal, it is essential to observe regional and local environmental protection regulations. - Page 26 EFA stunning device Original operating instructions Appendix -A1- Stunning device VB 215 and VB 225 VB 316 Safety rapid action coupling Safety rapid action coupling Hoop Venting slots Handle Hoop Handle with Handle with release lever release lever Release lever Draw pin Bolt Bolt...
- Page 27 EFA stunning device Original operating instructions Appendix -B1- Installation diagram for EFA VB 215 and VB 225 Alternatively Compressor unit central pneumatic system Place the spring The electrical connection balancer over the must be made with a front third of the socket and main switch slaughter bay.
- Page 28 EFA stunning device Original operating instructions Schmid & Wezel GmbH Maschinenfabrik Maybachstrasse 2 75433 Maulbronn/Germany +49 7043 1020 +49 7043 10278 ＠ efa-verkauf@efa-germany.de Internet: http://www.efa-germany.de...
