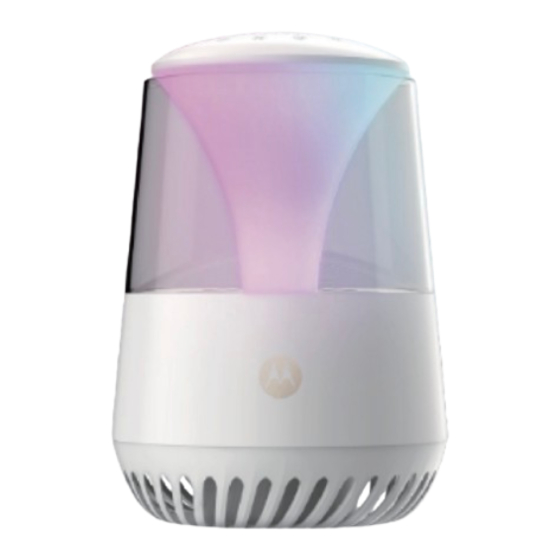

- Page 1 USER’S GUIDE 3-in-1 light & sound nursery air purifier Hubble Pure The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please keep your original dated sales receipt for your records. For warranty ser- vice of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status.
- Page 3 Overview of the Air Purifier 1. Air Outlet 4. Bottom cover (HEPA filter 2. Night Light Cover compartment access) 3. Micro-USB power socket 5. Touch Control Panel Functions Descriptions Toggle to power on (Blue key backlit) and power On/Off key off (Red key backlit).
-
Page 4: Table Of Contents
Table of contents 1. Safety Instructions ................5 2. Getting Started ..................7 2.1 Install HEPA filter for your Air Purifier ..........7 2.2 Connect Air Purifier to Power Supply ..........7 3. Recommendations for Use and Care ..........8 4. Operations ....................9 4.1 Power on/off .................. -
Page 5: Safety Instructions
1. Safety Instructions READ AND SAVE THESE INSTRUCTIONS. WARNING This product is compliant with all relevant electromagnetic field standards and is, when handled as described in the User’s Guide, safe to use. Therefore, always read the instructions in this User’s Guide carefully before using the device and save it for later use. - Page 6 • DO NOT attempt to repair or adjust any electrical or mechanical functions on this unit. Doing so will void your warranty. The inside of the unit contains no user serviceable parts. All servicing should be performed by the manufacturer or its service agent. •...
-
Page 7: Getting Started
2. Getting Started 2.1 Install HEPA filter for your Air Purifier • Take the HEPA filter out from polybag. • Follow the UNLOCK mark to to loose the bottom cover (Fig. 1). • Put back the HEPA filter into the compartment (Fig. 2). •... -
Page 8: Recommendations For Use And Care
3. Recommendations for Use and Care • The appliance is only intended for household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons. • During operation, NEVER block the air openings, grills/ outlets of the unit or place the unit on a soft surface such as a bed or sofa, as this could cause the unit to tip over, blocking the air inlet or outlet openings. -
Page 9: Operations
(backlit turns red). When first power up, the unit operates automatically at middle fan speed and ionizer operates simultaneously. When first power up, the Bluetooth audio streaming function enters pairing mode, use Bluetooth-enabled mobile phone to scan for (device “ Hubble Pure”) and complete the pairing. 4.2 Fan speed selection... -
Page 10: Night Light Setting
4.4 Night Light Setting The device gives 7-night light colors for selection. Key press Action Button backlit indication First power up Auto cyclic mode Bright blue (or color selection mode) Stop to select the Dim blue Tap 1st time the desired night light at button auto cyclic. -
Page 11: Dismantle And Cleaning Of Night Light Cover
5. Dismantle and cleaning of Night Light Cover The dust will likely stay on the inside surface of the clear Night Light Cover after period of use. It is detachable for cleaning. Disconnect the power from the electrical outlet then follow the steps below. Hold the Night Light Cover on opposite sides. - Page 12 After cleaning is done, move the cover back to the original position. Make sure the cover sits properly on the main body. Follow the “close” mark to turn clockwise the cover until the catches lock. Importance: • Wipe the dusts and dirt with detergent slightly moistened cloth or use water to clean once a month •...
-
Page 13: Checking And Maintaining The Filter
6. Checking and Maintaining the Filter • Maintain the Activated Carbon Composite HEPA Filter by checking it frequently. • When the filter turns from white to gray or black, it should be replaced. • Depending on the air quality conditions, you may need to replace it more frequently. - Page 14 Take the Filter (square in shape) out from the compartment with the assistance of ribbons. Replace with new filter in the correct orientation and position. Activated Carbon Composite HEPA Filter Put the bottom cover back to the unit and turn in a clockwise direction to the position marked with a LOCK mark.
-
Page 15: Troubleshooting
7. Troubleshooting Issues Solution The unit not operate. Please check and make sure that the unit is properly plugged in and the power outlet is energized. Please make sure that the unit has been turned ON. Please check and make sure that the filter is properly installed and the rear grill is seated correctly. -
Page 16: Disposal Of The Device (Environment)
8. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 17: General Information
• Damage caused by or resulting from contact with foreign substances, including, but not limited, to liquid, water, rain, humidity, perspiration, sand, dirt, and/or food; • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment;... - Page 18 IS LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST BINATONE AND Hubble Smart Nursery. IN NO EVENT SHALL BINATONE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND BINATONE AND Hubble Smart Nursery’s TOTAL LIABILITY FOR DAMAGES ARISING FROM THIS...
- Page 19 WARRANTIES STILL APPLY EVEN IF THE LIMITED REMEDY OF REPAIR AND REPLACEMENT FAILS OF ITS ESSENTIAL PURPOSE. Some jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights that vary from one jurisdiction to another.
- Page 20 FCC and IC regulations (FCC Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 21 FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons. This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence- exempt RSS(s). Operation is subject to the following two conditions: This device may not cause interference.
-
Page 22: Technical Specifications
10. Technical Specifications Connectivity Bluetooth 5.0 Standby power less than 0.5W consumption Operating Temperature 41 to 104 F (5 C to 40 Power Adaptor Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 2A WARNING Use only with provided power supply. Power Hi-speed 2.6W±0.3W Med-speed 2.0W±0.3W... - Page 23 Manufactured, distributed or sold by Binatone Electronics International LTD., official licensee for this product. Hubble connected and the Logo, are trademarks or registered trademarks of Hubble connected Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
