Frequency Devices 90PF User Manual

Dual channel programmable filter/amplifier card
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

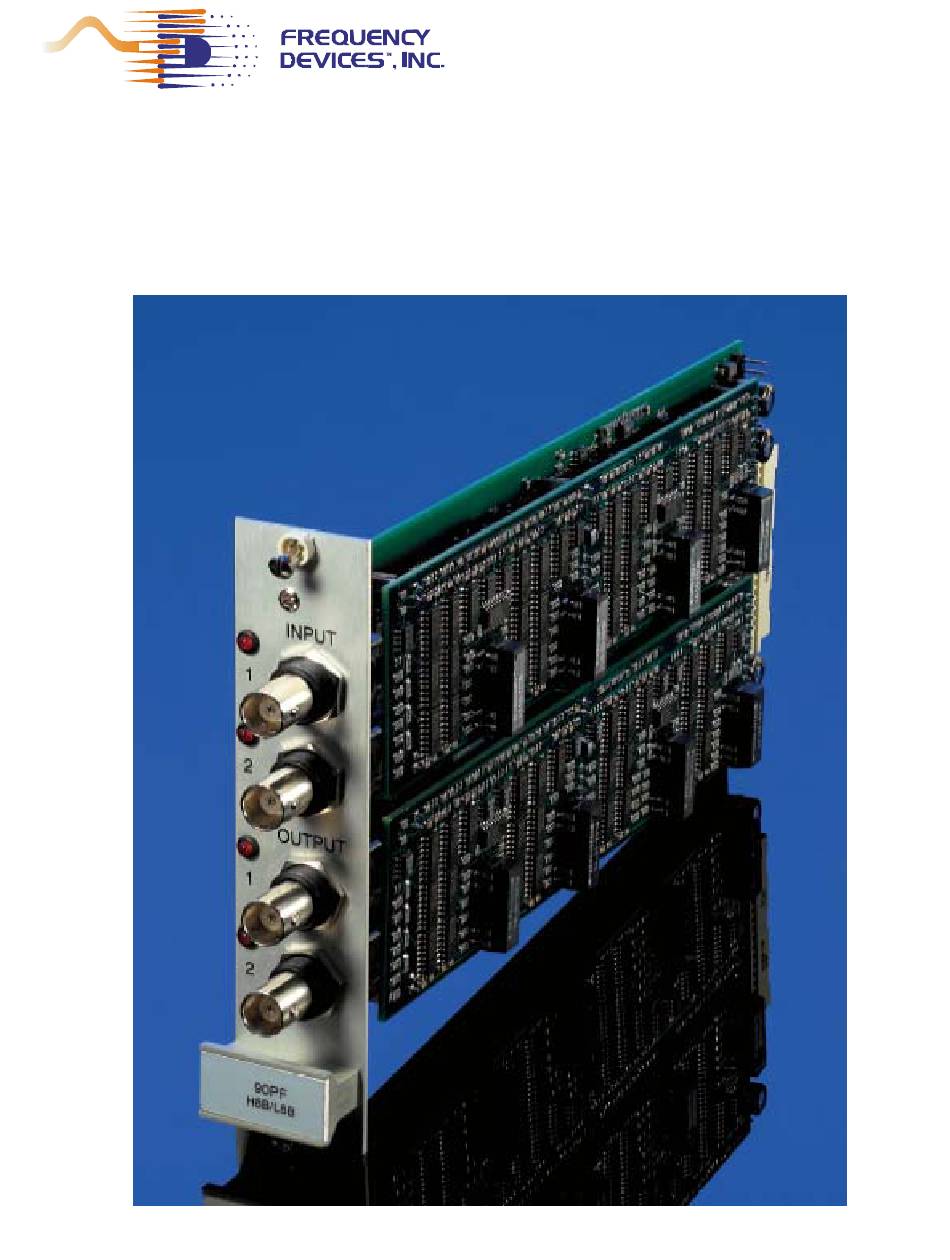

90PF
Dual Channel Programmable
Filter/Amplifier Card
USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 90PF and is the answer not in the manual?

Questions and answers

Related Manuals for Frequency Devices 90PF

Summary of Contents for Frequency Devices 90PF

  • Page 1 90PF Dual Channel Programmable Filter/Amplifier Card USER’S MANUAL...

  • Page 2: Table Of Contents

    Uninstall 90PF Command Set 9-11 Section 3 – Remote Operation Instructions 90PF Slot Card Command Reference Main Soft Front Panel Functional Groups APPENDIX A 1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176 e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com...

  • Page 3: Start-Up

    1.1 - Start Up All 90PF slot cards should be inserted into the 90IP chassis and controller while the power switch (rear panel) is in the OFF position (O). Once slot cards have been inserted, the power switch can be moved to the ON position (I). Upon power-up, a micro-controller on each 90PF slot card sends its configuration to the 90IP controller which displays the 90PF configuration.

  • Page 4: Front Panel Command Structure

    Filter/Amplifier Card 90PF slot cards can be addressed from either the 90IP hard front panel or by using a computer controlled soft front panel via the GPIB or RS232 communication port on the rear of the 90IP chassis. See page 5 for Remote Operation instructions.
  • Page 5 (2) output BNC. 12. CONFIG – Up to 9 configurations can be saved on each 90PF slot card. Slot card configuration, in use at time of power-OFF, will be saved to the next power ON cycle.

  • Page 6: Cdfc-01 Installation Disk

    This directory will install the code and files needed to develop custom applications for each slot card. 2.1.2 Set-Up Directory for Slot Card Interface (Used for Custom GUI Development) 90PF User Interface Directory - This directory installs the code and files used in developing a custom 90PF slot card GUI.

  • Page 7: Remote Software Installation

    ASRL<COM>::INSTR in the “Instruments” display window. CLICK on the items as they appear in the windows until the 90PF GUI appears. Verify that remote control of the PF card is functional (One can actually 1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176...

  • Page 8: Uninstall

    Initiate the 90IP Instrument Control from the desktop icon: Select GPIB then CLICK on the Scan button: GPIB0::1::INSTR should appear in the “Instruments” display window. CLICK on items as they appear in the windows until the 90PF GUI appears. Verify that control of the PF card is functional. Use the Quit button to exit application.

  • Page 9: Section 3 - Remote Operation

    90PF Section 3 Dual Channel Programmable Remote Operation Filter/Amplifier Card up of each channel configuration on the slot card. At 3.1 - Instructions: power down, the GUI will show the last used settings of the slot card. 1. Insert the CDFC-01, CD into the PC, CDROM.

  • Page 10: 90Pf Slot Card Command Reference

    Document. This document includes the commands, syntax, parameters, expected return values, and error codes to consider when developing a software system using the instrument driver to configure the 90PF card or any other valid function card. CDFC-01 also contains Frequency Devices 90IP/PF Card Online Help.
  • Page 11 90PF Section 3 Dual Channel Programmable Remote Operation Filter/Amplifier Card Returns a string representing the active “2 CHAN FILTER\n” for a 2 channel filter type CARD? card type. card. Returns a string representing the active Channel type: “L8D\n”, “L8E\n”, “L8B\n”, CHAN? channel type.
  • Page 12 CFG=n configurations. This set will configure the from 1 to 9. active card/channel. Table 2 – 90PF Command Set 1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176 e-mail: sales@freqdev.com • Web Address: http://www.freqdev.com...

  • Page 13: Main Soft Front Panel

    Group allows the user to initiate certain process/system commands. The Function Group presents the filter type contained on each channel. Finally, the Configuration Group contains the controls necessary to set different configuration parameters into the 90PF. 1784 Chessie Lane, Ottawa, IL 61350 • Tel: 800/252-7074, 815/434-7800 • FAX: 815/434-8176...
  • Page 14 90PF Section 3 Dual Channel Programmable Remote Operation Filter/Amplifier Card 3.4.1 Command Group 1 - Quit Command Button: Use this command button whenever you want to exit/close the software. It will then no longer allow configuration changes; close the function card panel and turn-off the SCC without affecting any other active slot card process.
  • Page 15 90PF Dual Channel Programmable APPENDIX A Filter/Amplifier Card Windows NT, Windows 2000, Windows XP Post Install Issues Condition: Certain users are not allowed to run the FD90IP Application Software because the software reports the inability of a specific set of libraries and files to load and be used in remote operation.
  • Page 16 Filter/Amplifier Card 13. Right CLICK on the 90PF folder and select Properties from the popup menu. CLICK the Security tab on the 90PF window. Select the Users group and allow full control by checking on the Full Control box. CLICK 14.
