  • Page 1: Table Of Contents

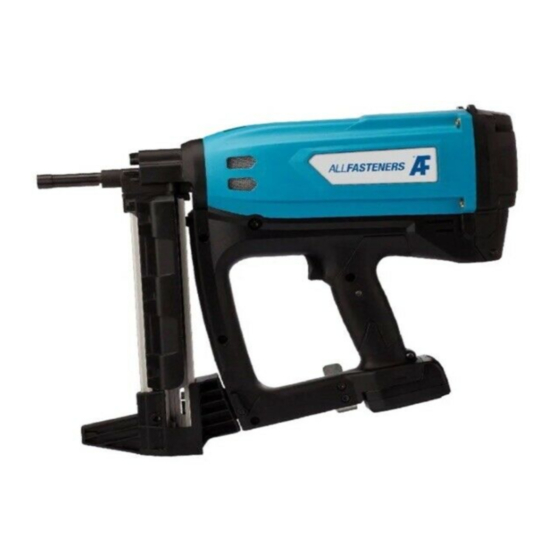

    AFGN50 ProTrax Nailer PART# 1GN50 SAFETY OPERATION MANUAL TABLE OF CONTENTS 1. IMPORTANT INFORMATION 2. SAFETY WARNINGS 3. DANGER WARNINGS 4. GENERAL WARNINGS 5. SAFETY INSTRUCTIONS - FUEL CELL 6. SAFETY INSTRUCTIONS - BATTERY CHARGER 7. USE OF - BATTERY AND BATTERY CHARGER 8.

  • Page 2: Important Information

    EXPLOSION AND FIRE HAZARD. The fuel cell is an aerosol dispenser with flammable contents. Pressured container and propellant will remain in the fuel cell. Failure to follow instructions may result in explosion or fire. Explosion and fire hazard continued on page 5. ALLFASTENERS.COM...

  • Page 3: General Warnings

    Never place your face, hands or feet closer than 8 inches (20mm) from the firing head. A serious injury can occur if the fasteners are deflected by the work surface, or are driven away from the point of entry. ALLFASTENERS.COM...
  • Page 4 Keep the nailer clean and lubricated for more efficient and safe performance. 25. USE ONLY PARTS, ACCESSORIES OR FASTENERS SUPPLIED OR RECOMMENDED BY ALLFASTENERS. Unauthorized parts, accessories or fasteners may void your warranty and can lead to malfunction or result in injury. If tool requires service or repair, contact Allfasteners, LLC at 1-800-577-3171 for further instructions.

  • Page 5: Safety Instructions - Fuel Cell

    „ To reduce risk of injury, only use rechargeable battery included with the AFGN50 ProTrax Nailer. Other types or brands of batteries may burst, causing personal injury and damage. If replacement part is needed, contact Allfasteners, LLC at 1-800-577-3171 for further instructions.

  • Page 6: Use Of - Battery And Battery Charger

    YOU MUST CHARGE THE BATTERY BEFORE YOU USE THE NAILER. BEFORE USE OF BATTERY AND BATTERY CHARGER, BE SURE TO READ ALL INSTRUCTIONS AND CAUTIONARY STATEMENTS IN THE MANUAL. Remember: Use only battery that is included with the AFGN50 ProTrax Nailer. Other types or brands of battery may burst and cause injury. WARNING Improper use of the battery or battery charger can lead to serious injury.

  • Page 7: Disposal Of The Exhausted Battery

    Ensure that tool needing repair is not used at any time for work or job site purposes. 9. SPECIFICATIONS TABLE 2 - GAS CONCRETE NAILER Type AFGN50 ProTrax Nailer Type of Power Piston Reciprocating Applicable Nails See Table 3 Below. “Available Nails”...
  • Page 8 WARNING Be sure to use only Allfasteners branded pins/nails as mentioned in the sizes above. The use of any other nails can result in tool malfunction or nail breakdown and could cause serious injury. Only nails shown in the table above can be driven with the AFGN50 ProTrax Nailer.

  • Page 9: General Operation

    10. GENERAL OPERATION NOTE: The information contained in this manual is designed to assist you in the safe operation of the AFGN50 ProTrax Nailer. Some illustrations in this manual may show details or attachments that differ than those on your own tool.

  • Page 10: Applications

    Push Direction How to remove the battery: Press the 2 buttons on side of battery and withdraw Latch battery from tool handle. Battery Pack ALLFASTENERS.COM...
  • Page 11 When the green pilot light does not come on, even after three hours has passed after the start of charging, contact Allfasteners, LLC. at 1-800-577-3171 for further instruction. Disconnect battery charger from power source once fully charged.

  • Page 12: Before Operation

    “overdose”. DO NOT use the nailer in the rain, snow or where excessive moisture is present. „ The AFGN50 ProTrax Nailer is not recommended for use at altitudes above 5,000 feet (1,500m) or in temperatures below 23°F (-5°C). „ ALLFASTENERS.COM...

  • Page 13: Preparing & Inserting The Fuel Cell

    If gas is not dispersed, fuel cell is empty and replace it. 5. Observe safety regulations. The fuel cell is not ready to insert into the nailer. INSTALLING THE FUEL CELL ALLFASTENERS.COM...

  • Page 14: Preparing The Battery

    Before actually beginning the nailing work, test the nailer by using the checklist located on page 14. Conduct the tests in the following order. If abnormal operation occurs, stop using the tool and contact Allfasteners, LLC. at 1-800-577-3171 for further instructions.
  • Page 15 Depress the nailer mouth against the work surface in a downward position and pull the trigger. Stem Adapter Fuel Cell Stem Pull the Trigger „ Close the cell cover. „ THE NAILER SHOULD OPERATE. Cell Cover „ Lock up the latch. ALLFASTENERS.COM...

  • Page 16: Loading Nails

    „ Use nail strip of more than 4 nails. The nailer is now ready to operate. Hand slide the nails forward in the magazine. Magazine ALLFASTENERS.COM...

  • Page 17: Removing The Nails

    „ Never drive fasteners from both sides of a wall at the same time. By doing so, the fasteners could be driven into and through the wall and cause injury to operator or others on opposite side of wall. „ Never use nailer which is defective or operating abnormally. ALLFASTENERS.COM...

  • Page 18: Nail Jam Removal

    See drawing 21.B Take off the guard and magazine assembly. Plastic Remove the jammed nails. See drawing 21.C. Strip Nails Plastic strip nails 21.C Lock magazine assembly by turning the lock knob. „ See photos on page 19. Magazine Assembly ALLFASTENERS.COM...

  • Page 19: Adjusting The Nailing Depth

    3. Insert the screws and tighten. The screws must be tightened to avoid the hook from falling off and causing damage to the nailer or injury to user. If the tool falls, there is a risk of malfunctions or damaged parts can occur. It is recommended that you also use fall preventing wires, clasps, lanyards, etc. ALLFASTENERS.COM...

  • Page 20: Maintenance & Inspection

    2 Weeks NOTE: After completion of each cleaning, user must drip lubricant oil on nailer in places indicated in the AFGN50 ProTrax Nailer Tool Cleaning & Maintenance Guide. If you have further questions pertaining to the cleaning, operating procedures and methods of the AFGN50 ProTrax Nailer, contact Allfasteners, LLC.
  • Page 21 Specifications are subject to change without any obligation on the part of Allfasteners, LLC. CONTACT/MANUFACTURER If your AFGN50 ProTrax Nailer is malfunctioning, needs repair or replacement parts, please contact Allfasteners, LLC. by calling 1-800-577-3171 for more information. Allfasteners will be available to recommend course of action for replacement, repairs and authorized dealers/technicians.

  • Page 22: Troubleshooting

    Utility voltage not within voltage Select and use correct utility voltage to charge. See Section 9, Table 6. requirements shown on adapter If battery still won’t charge, contact Allfasteners, LLC. See Section 12. nameplate. for replacement information. The battery pack is loose after being Contact Allfasteners, LLC.

  • Page 23: Ordering Information

    Allfasteners recommends that the operator ALWAYS wear proper safety attire, including but not limited to eye and ear protection. Allfasteners does not assume liability for user injury or injury of others. Read full safety operation manual for the AFGN50 ProTrax Nailer, part # 1GN50 before operating.
