GAS DETECTOR WITH
REMOTE SENSOR

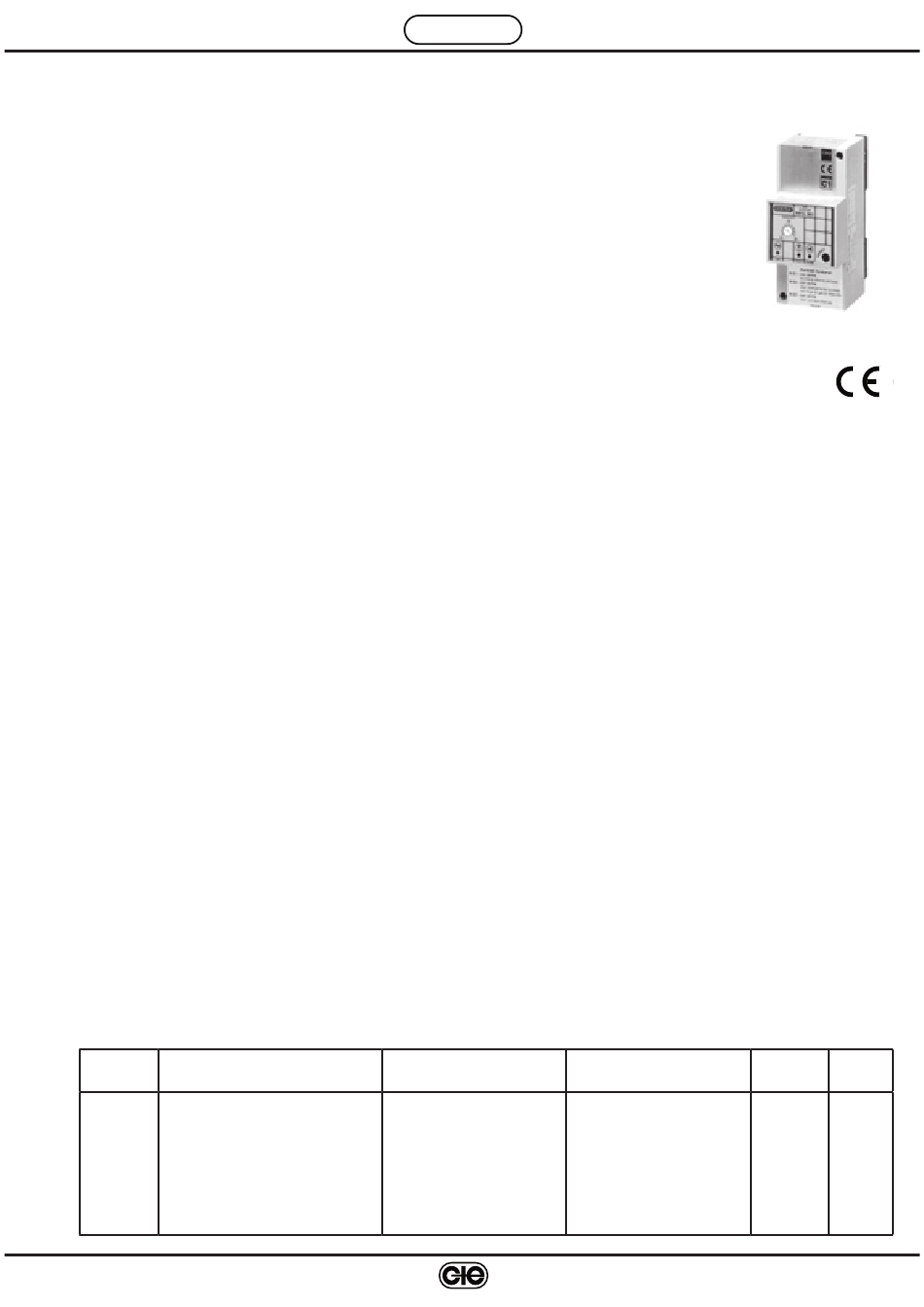

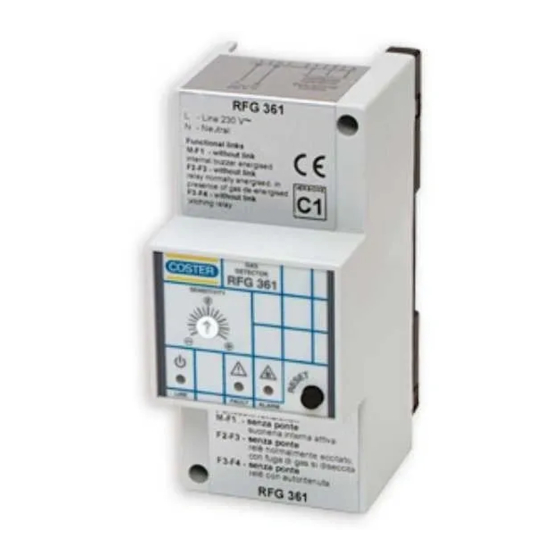

RFG 361
C1 Eng.
• Remote sensor for detecting methane, propane-LPG, carbon monoxide (CO)
• Sensors with sensing element specific for each type of gas
• 1 SPDT voltage-free output relay
• Adjustable alarm threshold (for methane and propane-LPG)
• Self-diagnosis sensor fault
• Construction and operation according to
CEI EN 50194 and CEI EN 50244 for Methane and Propane LPG
CEI EN 50291 and CEI EN 50292 for CO - carbone monoxide
• Installation on DIN rail; Protection IP 40
• Power supply 230 V ~
1. APPLICATION
RFG 361 is designed for the detection of gas in spaces such as: boiler rooms, laboratories, workshops, garages.
parking silos.
According to the type of sensor connected, monitors the concentration in air of the following gases: methane,
propane-LPG, carbon monoxide.
The sensors used are selective, and so are not influenced by gases other than that for which they are dedicated.
They have the following characteristics:
– methane and propane-LPG: sensors with semiconductors rendered selective by means of special filters,
– carbon monoxide (CO): the sensor is an electrochemical cell with two electrodes specific for CO.
The detector provides as outputs a pre-alarm signal and an alarm signal
• exceeding the pre-alarm threshold is indicated visibly by a flashing light.,
• exceeding the alarm threshold is indicated by visible and acoustic warnings and, by means of an output relay,
permits making an operational intervention such as, for example:
– closing a N.C. shut-off valve,
– closing a N.O. shut-off valve,
– switching on an aeration fan,
–sending an alarm signal to a remote site.
2. GAS DETECTING SENSORS
Code
Description
SRD 150
Sensor in domestic enclosure
SRD 250
Sensor in domestic enclosure
SRD 350
Sensor in domestic enclosure
SRS 150
Sensor in industrial enclosure
SRS 250
Sensor in industrial enclosure
SRS 350
Sensor in industrial enclosure
We reserve the right to make changes without notice
COSTER
G 521 - RFG 361
Gas
methane
propane-LPG
carbon monoxide
Sixth-Sense ECO-Sure/2e
methane
propane-LPG
carbon monoxide
Sixth-Sense ECO-Sure/2e
C1 Eng. 25.11.08 MZ
Sensing element
Protection
"SELECTIVE"
Figaro TGS 2611-E00
Figaro TGS 2610-D00
Figaro TGS 2611-E00
Figaro TGS 2610-D00
Rev. 02
G 521
25.11.08 MZ
Rev. 02
Data
sheet
IP 30
–
IP 30
–
IP 30
–
IP 44
–
IP 44
–
IP 44
–
1
Advertisement
Table of Contents
Related Manuals for Coster RFG 361
Summary of Contents for Coster RFG 361
- Page 1 • Power supply 230 V ~ 1. APPLICATION RFG 361 is designed for the detection of gas in spaces such as: boiler rooms, laboratories, workshops, garages. parking silos. According to the type of sensor connected, monitors the concentration in air of the following gases: methane, propane-LPG, carbon monoxide.
-
Page 2: Overall Dimensions
COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ 3. OVERALL DIMENSIONS 4. FACIA 50.5 1 – Sensitivity control knob 1 – Protective cover for electronic components 2 – Power LED 2 – Base with transformer, relay and terminal blocks 3 –... -
Page 3: Electric Wiring
COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ 6. SITING OF DEVICE Detector This must be sited in a dry space which meets the relevant ambiental requirements given in section 5. If installed in a location classified as “Hazardous” it must be installed in a cabinet for electrical equipment con- structed according to the regulations in force for the class of danger concerned. -
Page 4: Wiring Diagrams
COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ 8. WIRING DIAGRAMS General diagram Functions of jumpers 230 V ~ M-F1 – without jumper = internal and external alarms ena- bled Operational with jumper = internal and external alarms disabled control F2-F3 –... -
Page 5: Operation
COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ Diagram of connection with N.C. valve with manual Diagram of connection for control of aeration fan reset (230 V~) (230 V~) B – Gas detection sensor B – Gas detection sensor M –... - Page 6 COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ The pre-alarm and alarm levels of the sensor are determined by the processing of a microprocessor which keeps account of the concentration of the gas in the air and of the exposure time. For this reason the “Sen- sitivity”...
- Page 7 COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ 10. TESTING • Power the device: LINE LED (4. ) lights and FAULT LED (4.3) and ALARM LED (4. ) flash.. • After 1.5…2 minutes the detector is ready to acquire alarms and the LEDs FAULT (4.
-
Page 8: Informazioni Tecniche
COSTER G 521 - RFG 361 Rev. 02 C1 Eng. 25.11.08 MZ Amendment to data sheet Date Revision No. Page Section Amendment description 12.03.07 MZ various various Replaced SGG – SGS sensors by SRD - SRS selective sensors Developed wiring diagrams.
