Stellar Pump Australia
`
Installation, Operation & Maintenance

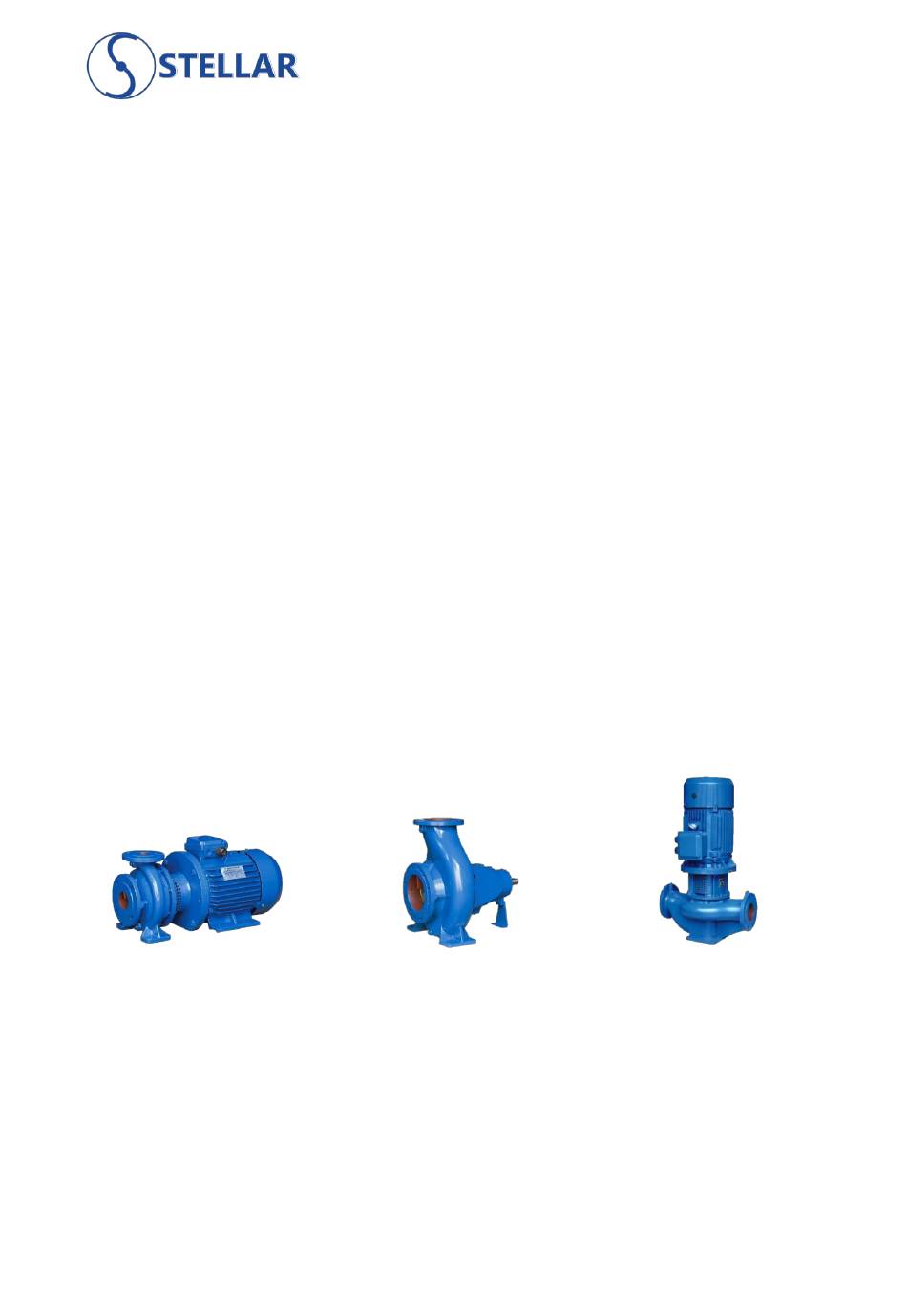

HESC Series – Horizontal End Suction Close-Coupled Pump
HESB Series - Horizontal End Suction Bare Shaft Pump
VISC Series – Vertical In-Line Singe Stage Pump
HESC Pump
Series
Installation, Operation and Maintenance (IOM) Manual
Manual
HESB Pump
Series
VISC Pump
Series
IOM Manual HESC, HESB, VISC Pump Series V2
1
Advertisement
Table of Contents
Related Manuals for stellar labs HESC Series
Summary of Contents for stellar labs HESC Series
- Page 1 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia Installation, Operation & Maintenance Manual HESC Series – Horizontal End Suction Close-Coupled Pump HESB Series - Horizontal End Suction Bare Shaft Pump VISC Series – Vertical In-Line Singe Stage Pump HESC Pump...
- Page 2 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia EXCLUSIVE SECURITY STICKERS All pumps & motors have exclusive designed hologram security sticker with unique serial number certifying that the said products are original and genuine produced by Stellar Pump Australia. To validate if product purchased is original &...
-
Page 3: Table Of Contents
----------------------------------------------------------------------------- Page 14 SECTION I: INTRODUCTION STELLAR PUMP HESC series horizontal end suction close-coupled pump, HESB series horizontal end suction bare shaft pump and VISC series Vertical in-line single stage pump are manufactured with same performance where impeller is interchangeable to other series. Thus, this Installation, Maintenance and Operation (IOM) manual is applicable to HESB series, HESC series and VISC Series. -
Page 4: Section Ii: General Practice
Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia SECTION II. GENERAL PRACTICE 1. Do not operate the pump without proper procedure of priming (pump volute flooded with water). 2. Do not operate the pump if water has sand or any solid particles that could clog the impeller. 3. -
Page 5: Section V: Installation
Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia Figure 1: HESC Series Figure 2: HESC Series Figure 3: VISC Series (Up to 20kw only) SECTION V. INSTALLATION 1. Pump Room or Storage Pump room or storage should be clean, free from any construction activities, materials &... - Page 6 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia Procedure of installation of suction and discharge pipe connections shall be in accordance to related plumbing and/or water system codes & local regulations. b. Standard practice that suction diameter of the pipe should be larger than the suction diameter of the pump.
-
Page 7: Section Vii: Maintenance Procedure
Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia h. Pump shaft must be rotated freely by hand. Adjust the impeller clearance if necessary. Pump should be clean, free from any dust particles that might affect the smooth performance of pump & motor bearings. 2. - Page 8 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia b. Floor of pump room or storage should be dry, free from any stagnant water for avoid certain accidents. No moisture or humidity exists inside the pump room or storage. Necessary ventilation system is required.
-
Page 9: Section Viii: Spare Parts
Check body temperature of electric motor. Standard body temperature of electric motor ranges from 40 C to 60 SECTION VIII. SPARE PARTS 1. Recommended Spare Parts for HESC Series Horizontal End Suction Close-Coupled Pump Intermittent duty *Item Description 5, 5.1... - Page 10 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia Continuous operation *Item Description 3, 3.1 Front and back wear ring Shaft spacer **7, 8.1 Set of Mechanical Seal ***15, 16, Set of Packing Gland Casing Gasket Impeller Bearing Bearing Cover Rubber slinger Shaft 23, 24...
-
Page 11: Section Ix: Exploded View
Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia SECTION IX. EXPLODED VIEW 1. HESC Series Horizontal End Suction Close-Coupled Pump Item Description Item Description Screw Bolt Pump Casing 11.1 Screw Nut Plug Screw Bolt Plug Spacer 12.1 Screw Nut... - Page 12 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia 2. HESB Series Horizontal End Suction Bare Shaft Pump Item Description Item Description Item Description Support Casing 22.2 Screw Nut 14.1 Flat Washer Impeller Nut 23, 24 14.2 Elastic Washer Spring Lock Washer Screw Bolt 14.3 Screw Bolt...
- Page 13 Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia 3. VISC Series Vertical In-line Single Stage Pump Item Description Pump Casing Impeller Nut Flat Washer Spring Washer Front Wear Ring Impeller Seal Seat Mechanical Seal Casing Gasket Casing Cover 1/4 Plug Adapter Guard Screw...
-
Page 14: Section X: Trouble Shooting
Installation, Operation and Maintenance (IOM) Manual Stellar Pump Australia SECTION X. TROUBLE SHOOTING Problems Causes Recommended Solutions No discharge flow 1. Trap air or leak at suction 1. Remove trap air or repair pipe leak. Prime properly the suction pipe 2.
