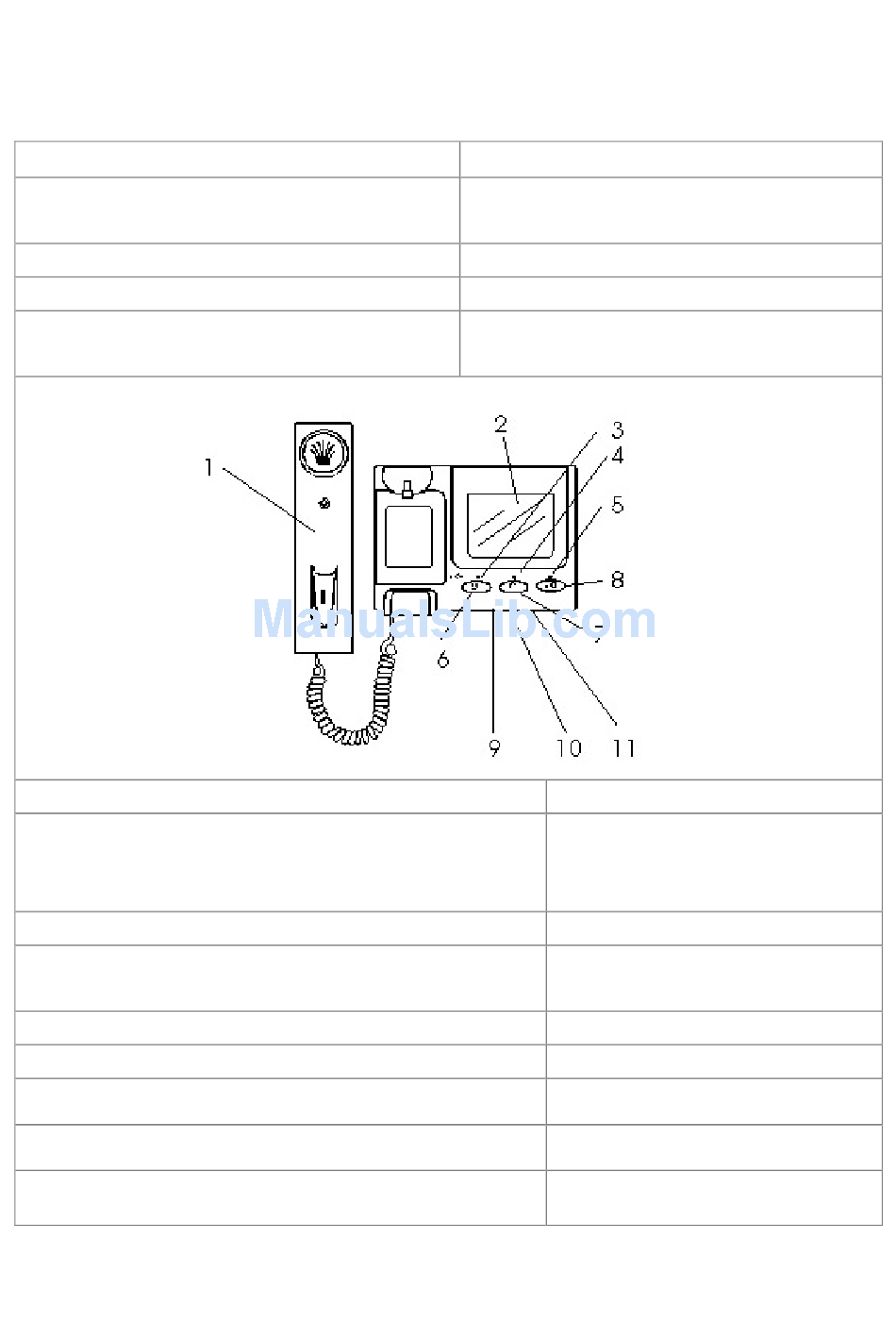

INDOOR MONITOR
1. Handset
Lift to communicate with your visitors.
2. Monitor Screen
4" color LCD-TFT
3. Power Lamp (Red)
Indicate if the system is on or off
4. Operate Lamp (Red)
Light on indicates operating
5. Unlock Lamp (Red)
Light on indicates unlocking E-lock
6. Monitor Button
Press this button to view the picture from
the camera
7. Call Button (intercom function)
Press this button to communicate with
monitor 2 or monitor 3
8. Door Release Button
Release the door to let your
visitors come in after viewing
them
9. Volume
Adjustment of the call sound
volume
10. Brightness
Adjustment for image brightness
11. Contrast
Adjustment for image contrast

Advertisement

loading
Need help?

Need help?

Do you have a question about the VDP1500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clover VDP1500

  • Page 1 INDOOR MONITOR 1. Handset Lift to communicate with your visitors. 2. Monitor Screen 4” color LCD-TFT 3. Power Lamp (Red) Indicate if the system is on or off 4. Operate Lamp (Red) Light on indicates operating 5. Unlock Lamp (Red) Light on indicates unlocking E-lock 6.
  • Page 2 OUTDOOR CAMERA Rear View...
  • Page 3: How To Install

    Connector pin configuration Video output Ground Audio signal DC 13V – 14V 1. Super infrared LEDs Let you see clearly even at night 3. Microphone Picks up the voice of the visitors 5. Camera Picks up the image of the visitors clearly HOW TO INSTALL 1.
  • Page 4: Installation Of Camera

    1. Attach the bracket to the wall to install the monitor. Secure the bracket with the supplied screws. 2. Connect the cable connectors with 4 wires in polarity to the wafer on the rear of the monitor. 3. Fasten the monitor onto the bracket 4.
