SYSTEM INSTALLATION
MONITOR

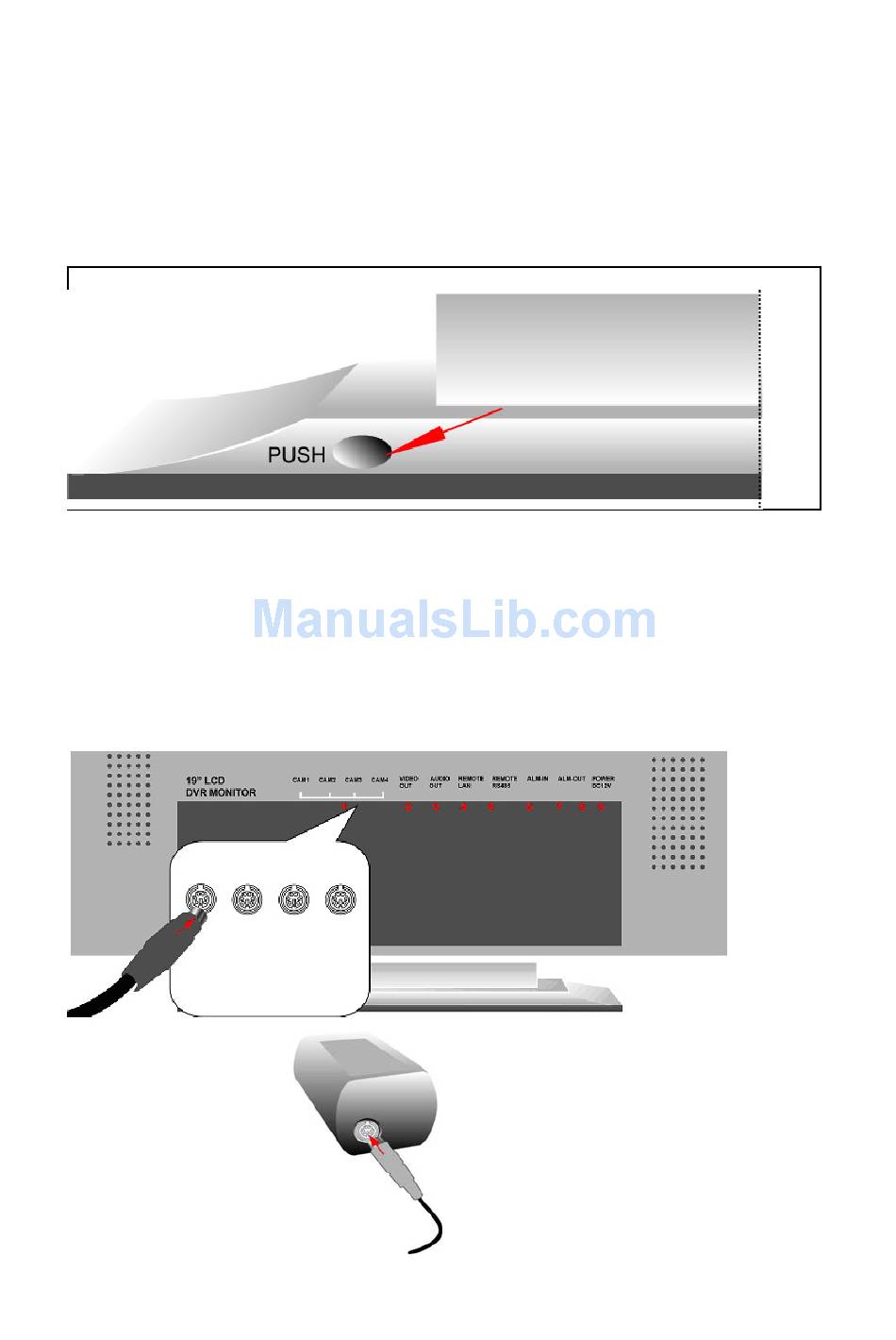

Press and hold the "PUSH" button on the monitor base until getting the proper angle of
panel (screen) for viewing.
GETTING CONNECTED
1.
Video Input (CAM1, CAM2, CAM3 and CAM4)
Connect the cameras to the video inputs on the rear of the TFT monitor as
follows.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Clover TFT1904DVR
Summary of Contents for Clover TFT1904DVR
-
Page 1: System Installation
SYSTEM INSTALLATION MONITOR Press and hold the “PUSH” button on the monitor base until getting the proper angle of panel (screen) for viewing. GETTING CONNECTED Video Input (CAM1, CAM2, CAM3 and CAM4) Connect the cameras to the video inputs on the rear of the TFT monitor as... - Page 2 Connect a BNC cable (not included) to other device such as slave monitor or other equipments, if need arises. Audio In (RCA) Plug a microphone into the RCA jack. 3. LAN Connect the provided RJ-45 cable for internet networking. RS-485 Terminal for P/T/Z control.
- Page 3 CAMERA This product can be installed up to 4 cameras. Connect the provided cameras (6 Pin Din) to the CAM1~4 on the back panel of the product. AUDIO The system includes two indoor cameras built-in Audio and two outdoor camera (without Audio) built-in IR LEDs (Infrared) to view objects in the darkness.
