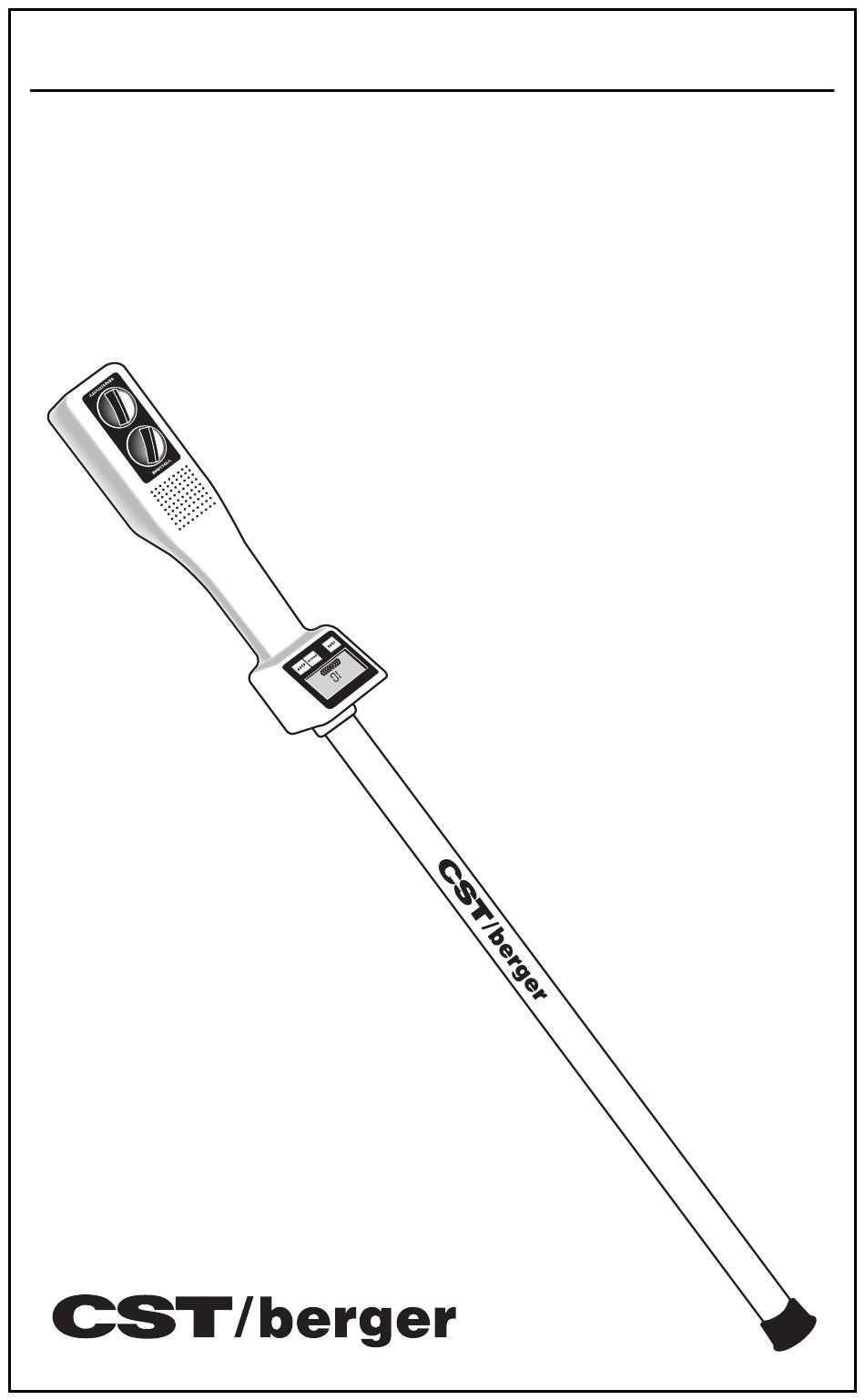

- Page 1 INSTRUCTION MANUAL ® Magna-Trak 102 Magnetic Locator...
-
Page 2: Table Of Contents
Specifi cations, Warranty & Service .........15 Introduction The Magna-Trak 102 magnetic locator is a fl ux-gate type of mag- netometer which incorporates a unique patented technology that enables the factory to balance the magnetic sensing coils to a fi nite condition. This patented method of magnetic balancing is more advanced in the state-of- the-art technology. -
Page 3: Theory Of Operation
Theory of Operation The Magna-Trak 102 locator fi nds ferromagnetic objects by sensing the magnetic fi eld radiated by the object. The locator contains two sen- sor coil assemblies that are precisely spaced and electronically balanced to achieve a near magnetic balanced operating condition. In a uniform magnetic fi... -
Page 4: Features
Features 1. Instrument Control Panel a) LCD Visual Display b) Water-repellant push button switch operation 2. LCD Visual Display a) Two digit numeric signal indicator b) Expanding analog bar graph signal indicator c) “Low Battery” alert fl ashing indicator d) Displays “ferrous” model operation e) “Caution: Power Line”... -
Page 6: Basic Operation And Description
Basic Operation and Descriptions Power On Button: Press once to activate the locator circuitry. Simultaneously, the circuitry is automatically set to the proper audio tone. Power Off Button: Press once to turn the battery power off. Volume Control: Rotate the knob to the desired audio sound level. Full volume is achieved when the knob is turned full clockwise. - Page 7 “diamond” as the signal increases due to magnetic metals. Low Battery Indicator–Although not visible under normal conditions the LCD will display a fl ashing “Low Battery” warning when the bat- teries fall below a predetermined voltage. This alerts you to replace the batteries soon.
- Page 8 However, the locator’s sensitivity to the buried object is also minimized and usually undetectable. The new Magna-Trak 102 and its “Erase” feature solves this problem by providing an Erase button; simply press this button when the interference is annoying and the metal structure is electronically erased. The audio tone returns to the “no metal”...
- Page 9 batteries at the junction or contact point of each set of two batteries. This is the point where the two batteries contact each other. You may prefer other methods of your choosing. Dispose of the weak batteries properly. Insert the new batteries observing the polarity markings located inside the battery wells.
-
Page 10: Field Operation
Field Operation The recommended search position is a 45 degree angle from the earth’s surface. Scan the locator pole from side-to-side in a slow sweeping motion while walking in a uniform direction. Once the object being searched is lo- cated, pinpointing the objects location can be accomplished by holding the locator vertical and sweeping it in an “X”... -
Page 11: Signal Responses
Signal Response Below is an example of audio and LCD visual signal responses to (1) no ob- ject, (2) one small deeper metal target and (3) a second larger and shallower metal object. The LCD display indicates both the numeric digital and analog bar-graph response as the locator passes over the ground. - Page 12 Typical Signal Responses The metal handles on the septic tank cover will provide a usable signal to determine the location of the actual cover. Signal Response The metal handles on a septic tank cover Large metal objects may cause double signals as indicated. The center of the cover is found by sweeping the locator back and forth to cre- ate a ring pattern response.
- Page 13 Typical Signal Responses Water Locations: The locator can be submerged into water with the pole section to just under the plastic case. Hold the locator in a vertical position while searching to produce the best results. The joints, elbows and ends will create the strongest signals. Cast iron pipe, joints, elbows, etc.
-
Page 14: Locating Near A Steel Fence
Locating Near a Steel Fence Approach the fence and stop at the distance at which you wish to begin your search. While holding the locator in a vertical position, press and release the “erase” button on the membrane panel. Begin sweeping the locator side to side parallel to the fence. -
Page 15: Specifi Cations, Warranty & Service
Before returning the instrument to CST/berger, please call (815) 432-9200 for a Return Authorization Number from our Customer Service Department. CST/berger’s liability under this warranty is limited to repair or replacement of the unit. Any attempt to repair the product by other thanfactory authorized personnel will void this warranty. - Page 16 www.cstberger.com Insert Barcode © Robert Bosch Tool Corporation, 1800 W. Central Road Mt. Prospect, IL 60056-2230 Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056-2230, E.U.A. Importado en México por: Robert Bosch, S.A. de C.V., Calle Robert Bosch No. 405, Zona Industrial, Toluca, Edo.
