  • Page 1 UHF RFID SLED for PM30 RF300 User Manual Copyright © 2006 – 2021 Google, Android, Google Play and other marks are Point Mobile Co., Ltd. All rights reserved trademarks of Google LLC.
  • Page 2: Instruction

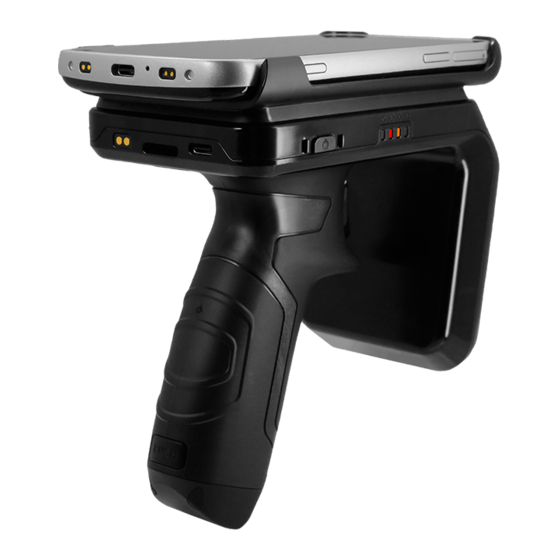

    UHF RFID SLED RF300 User Manual Instruction RF300 is a UHF RFID sled for PM30. This manual provides information about basic features and using the RF300. Please read this manual carefully before using your UHF RFID reader to ensure safe and proper use.
  • Page 3: Table Of Contents

    Connect mode ........................13 Change connect mode......................13 Wired Communication ......................14 Disconnect .......................... 15 Auto reconnect ........................15 Bluetooth Communication ...................... 16 Connect methods ....................... 16 Disconnect .......................... 21 Reconnect .......................... 21 © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 4 Manual Update ........................30 READ RFID TAG ..................... 31 RFID Demo ..........................31 Read the RFID Tag ........................ 32 SCAN A BARCODE ....................34 SAFETY INFORMATION ..................35 Battery Safety Information ..................... 35 © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 5: Getting Started

    Connector for communication with PM30 Connector for cradle charging Connector for cradle charging USB Type C connector USB 2.0 Type C. Plug USB cable to charge the RF300 Battery release button Press to open battery cover and replace the battery Power button...
  • Page 6: Product Standard Accessories

    The following items are in the product box. Accessory Name Battery pack (Battery may be assembled in the RF300) 5V / 2A power adapter AC plug (EU / KR plug) USB type C cable Hand Strap © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 7: Charge The Device

    4. Provide power by plugging the power adapter to the power outlet. Figure 2 Charge RF300 Note: If the adapter is connected to RF300 with PM30 mounted, RF300 is charged first and PM30 starts charging after RF300 is fully charged. When PM30 starts charging, the charging LED of RF300 will light on yellow.
  • Page 8: Charging With Cradle

    Charge the RF300 with PM30 mounted through the cradle (Optional accessory: PM30-SSC0, PM30-SSC0-5). Place the device onto the cradle as shown in Figure 3. Note: If you use the cradle to charge, PM30 and RF300 will charge at the same time. © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 9: Turn On/Off The Device

    UHF RFID SLED RF300 User Manual Getting Started Turn on/off the Device To turn on or off the RF300, press and hold the power button for 2 seconds (Until the RF300’s LED indicator lights on/off). Figure 4 RF300 Power button...
  • Page 10: Replace The Battery

    1. Press Battery release button on the back of the handle to open the battery cover. Figure 5 Battery release button 2. Remove the battery and replace it. Figure 6 Replace battery 3. Close the battery cover firmly until it clicks. © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 11: Led Indicator

    Battery fault Alternately blinking green & red Low battery Blinking red / Charging temperature is too high or low Note: When RF300 enters sleep mode, all LED indicators will turn off. © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 12: Install Pm30

    UHF RFID SLED RF300 User Manual Getting Started Install PM30 1. Insert the PM30 into the retention fixture of RF300 from the top side first. Figure 8 Installing PM30_1 2. Push the bottom of PM30 down. Figure 9 Installing PM30_2 3.
  • Page 13: Connecting Pm30

    Connecting PM30 Install the RFID Control App Connect your PM30 and RF300, set up the configuration, and update the firmware of the RF300 using RFID Control application. The app can be downloaded from Point Mobile Service Portal website. This guide only describes a few basic features of RFID Control, so please find more detail information RFID Control User Guide.
  • Page 14: Connect Mode

    Bluetooth communication mode Figure 13 RFID Control - Open options Note: Disconnect current connection before changing connect mode. Connect mode change button does not work when RF300 is already connected to any PM30. © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 15: Wired Communication

    Connecting PM30 Wired Communication Wired communication is a default connect mode for RF300 and PM30. Because the devices communicate through pogo pin connectors, you must install PM30 on RF300 first for wired communication. 1. Install PM30 on RF300 referring to Install PM30.
  • Page 16: Disconnect

     RF300 and PM30 are turned on  RF300 and PM30 connected through wired communication at least one time  Open option of RFID Control and connect mode of RF300 is set as Wired  Previous connection is disconnected by removing PM30 from RF300 (If you disconnected it by toggle switch in RFID Control, Auto-reconnect does not perform.)
  • Page 17: Bluetooth Communication

    UHF RFID SLED RF300 User Manual Connecting PM30 Bluetooth Communication To connect RF300 and PM30 with Bluetooth, change the connect mode on the RF300 and RFID Control, first (Refer to Connect mode - Change connect mode). When the Open option changes to Bluetooth while Bluetooth is turned off on PM30, the app tries to turn on the Bluetooth automatically.
  • Page 18 UHF RFID SLED RF300 User Manual Connecting PM30 Tap-to-Pair Tap-to-Pair method uses NFC feature, and connect RF300 and PM30 just by getting them close. An NFC tag is on RF300 UHF RFID antenna to support Tap-to-Pair. 1. Change connect mode to Bluetooth on RF300 and Open option of RFID Control to Bluetooth.
  • Page 19 UHF RFID SLED RF300 User Manual Connecting PM30 3. Referring to NFC antenna area of PM30, bring the PM30 close to the NFC logo of RF300 as the picture on the screen. And then, allow the connection in the dialogs.
  • Page 20 2. Tap Search RFID Reader on RFID Control Figure 25 Search RFID Reader 3. When desired RF300 name appears, stop searching by tapping STOP and select the name Figure 26 Searching RFID reader © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 21 4. Allow the connection in the dialogs Figure 27 Bluetooth pairing dialog 5. Check below items to confirm that RF300 is connected properly (Refer to Figure 23, Figure 24)  Enabled Connect to RFID Reader toggle switch and connected RF300’s name is displayed ...
  • Page 22: Disconnect

     Turn off the RF300 or PM30 Reconnect To reconnect to the last connected RFID reader, tap Connect to RFID Reader toggle switch and wait until the devices are connected. Figure 28 Reconnect toggle switch © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 23: Configuration Settings

    UHF RFID SLED RF300 User Manual Configuration Settings Configuration Detail RF300 configuration contains below settings. Find the details of each setting from RFID Control User Guide. Settings Range or Options Default Value Mute High Beep Volume High On / Off...
  • Page 24 Auto read interval 1 ~ 99 1 (sec) Save Log On / Off 30 seconds 1 minute 5 minutes Sleep 10 minutes 10 minutes 30 minutes 1 hour 2 hours Reset RFID Settings © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 25: Apply Configuration

    After connecting the devices, tap to open the side menu bar and select Configuration. And then, adjust each configuration manually using RFID Control interface. Figure 29 Side menu bar - Configuration Figure 30 Configuration © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 26: Apply Via Json File

    RFID Control Configuration Tool User Guide.) And then, launch RFID Control without any connection with RF300 to save the auto update setting on the app. When you set up Auto update,  Auto Update will be performed every time RF300 is connected while RFID Control is running ...
  • Page 27 3. Tap IMPORT and wait until the process is done (There is no need to select JSON file because app will automatically find and use the Configuration.json file in the RFIDControl/RFIDJsons folder) Figure 31 RFID Control - Import Configuration © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 28: Wedge Settings

    Options Default Value Callback (User Message) Keyboard Event Clipboard (KEYCODE_PASTE) Result Type Clipboard (KEYCODE_PASTE) Clipboard (Ctrl+V) Intent Broadcast Custom Intent None Space Terminator None Tab & LF Prefix (Blank) Suffix (Blank) © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 29: Apply Wedge

    Apply via JSON file in Configuration Settings. If the JSON file contains wedge setting values, Wedge settings are applied at the same time when you apply the configuration settings via the JSON file. © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 30: Firmware Update

    Configuration Tool User Guide) and copy the JSON file into RFIDControl/RFIDJsons folder of host device. And then, launch RFID Control without any connection with RF300 to save the auto update setting on the app. When you set up Auto Update, ...
  • Page 31: Manual Update

    Manual Update Manual update can be performed regardless the auto update is enabled or disabled. To update the firmware of RF300 manually, 1. Execute RFID Control and connect RF300 to host device 2. Tap and select Update RFID F/W 3. Tap to browse the RFU file you prepared (The file must be in RFIDControl/RFIDRFUs folder.)
  • Page 32: Read Rfid Tag

    There are two ways to launch RFID Demo,  Tap RFID Demo from App drawer or EmKit  Open the side menu bar on the RFID Control and tap Launch RFID Demo App drawer EmKit RFID Control © 2021 Point Mobile Co., Ltd. All rights reserved...
  • Page 33: Read The Rfid Tag

    Figure 36 Trigger-Mode LED (UHF RFID mode) Read RFID tags after connecting the RF300 to your PM30. To read RFID tags, aim the tag and then press the trigger button of RF300 or tap the Read RFID Tag button on the screen.
  • Page 34 UHF RFID SLED RF300 User Manual Read RFID Tag Note: Make sure the RF300 is in UHF RFID mode. If you try to read RFID tags using RFID Demo app while RF300 is in barcode scan mode, it does not work and a toast message pops up on the screen.
  • Page 35: Scan A Barcode

    UHF RFID SLED RF300 User Manual Scan a Barcode If you want to scan a barcode instead of RFID tag, change the trigger mode of RF300. Trigger button will activate the barcode scan action. 1. Press and hold the trigger mode change button until the Trigger-Mode LED turn on red.
  • Page 36: Safety Information

    Notice: The battery is consumable goods. Point Mobile provides warranty for battery in 6 months after purchase. If you suspect the battery swelling, change the battery and contact Point Mobile to use safely. © 2021 Point Mobile Co., Ltd. All rights reserved...
