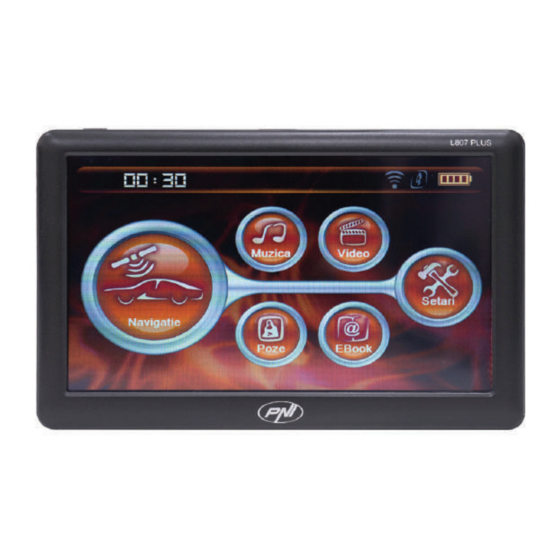

PNI L807 PLUS
GPS navigation system / Sistem de navigatie GPS
EN
User manual .............................................
RO
Manual de utilizare ...................................
2
17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L807 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PNI L807 PLUS

Summary of Contents for PNI L807 PLUS

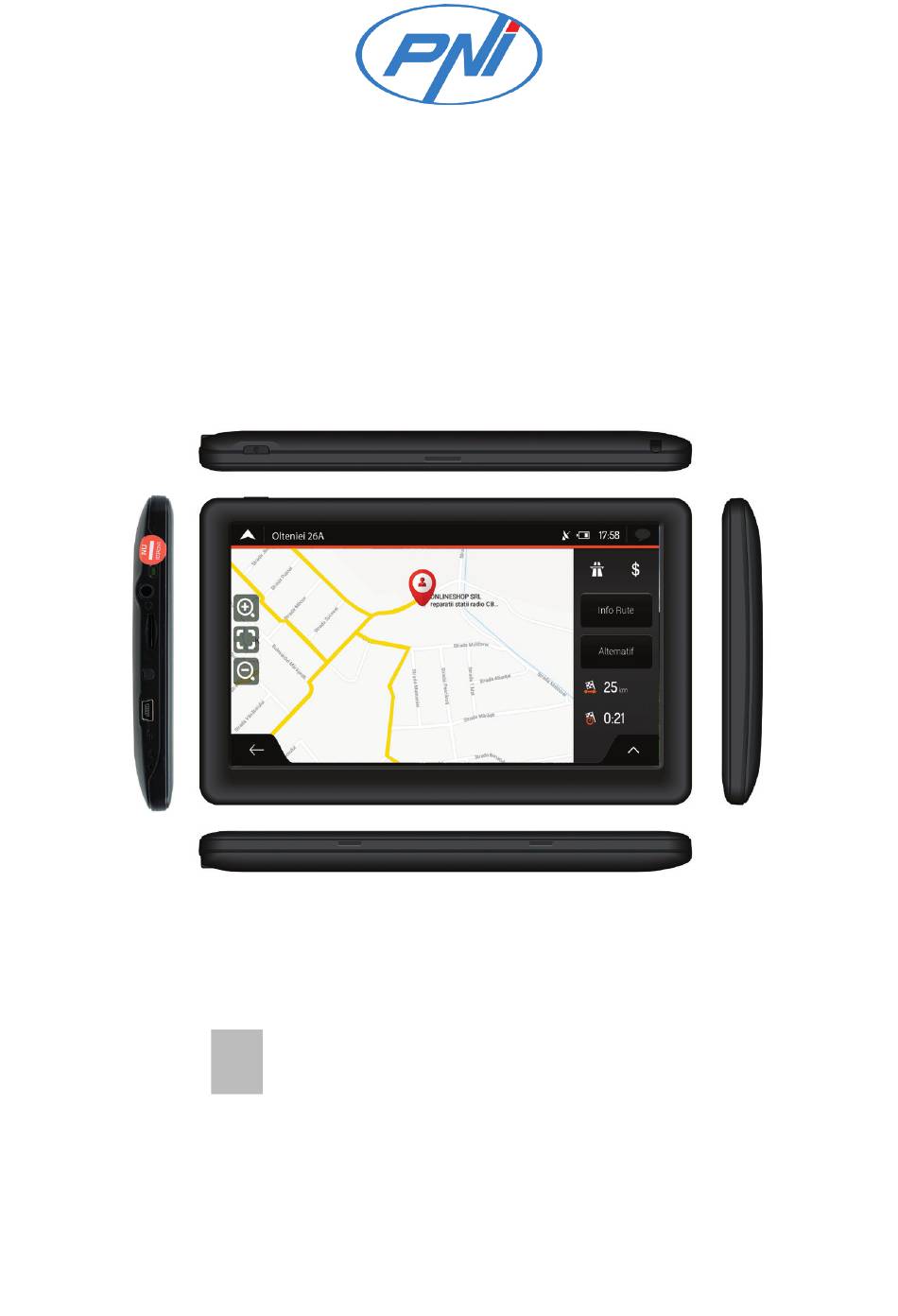

  • Page 1 PNI L807 PLUS GPS navigation system / Sistem de navigatie GPS User manual ..........Manual de utilizare ........
  • Page 2 Warnings Our company is not responsible for data loss due to the lack of a backup. » Please read carefully the instructions in this user manual and use only the » original accessories to avoid unexpected damage. Installing other software on this device, without being in accordance with its »...

  • Page 3: Main Features

    Do not use the volume to the maximum, it can affect your hearing. » Introduction PNI L807 Plus is mainly used for GPS navigation. In addition, it can play audio, video and photo files. Main features Friendly interface for easy use »...
  • Page 4 Ports, keys and functions 1. On / off button 2. Status LED indicator 3. Headphone jack 4. Micro SD card slot (card is not included) 5. Mini USB port Usage instructions Power the device The device can be powered in three ways: •...

  • Page 5: Turn The Device On/Off

    Note: This device uses an integrated Li-Polymer battery that cannot be removed. If the screen backlight is low and the battery is fully charged, then the device can operate for up to 3 hours. Some functions such as file playback or intense backlight consume more energy, which will obviously reduce battery life.
  • Page 6 ATTENTION: Do not remove the card from the device when the system plays a media file. » Do not press hard and do not bend the SD card. » Do not store the card in areas with high temperature and humidity or in direct »...
  • Page 7 Music If there are audio files on the micro SD card inserted in the device, accessing the Music menu you will see the SDMMC folder. Click on the icon displayed to view the list of songs. 1. Back to the file list 2.
  • Page 8 5. Stop playing the file, go to the previous file or to the next file 6. Volume control 7. Time elapsed Video If there are video files on the micro SD card inserted in the device, accessing the Video menu you will see the SDMMC folder. Click on the icon displayed to view the list of files.
  • Page 9 1. File name 2. Volume control 3. Adjust brightness 4. Back to the file list 5. Play / Pause 6. Previous song 7. Next song 8. Time elapsed Photo If there are photo files on the micro SD card inserted in the device, accessing the Photo menu you will see the SDMMC folder.
  • Page 10 Ebook If there are text files on the micro SD card inserted in the device, accessing the Ebook menu you will see the SDMMC folder. Click on the icon displayed to view the list of files. 1. Back to the file list 2.
  • Page 11 Backlight Adjust the intensity of the screen backlight: User manual...
  • Page 12 Volume Adjust the volume intensity or turn off the sound: Language Select the display language of the menu: Available options: English, French, German, Italian, Portuguese, Russian, Spanish, Hungarian, Polish, Romanian, Latvian. User manual...
  • Page 13 Info GPS GPS information: how many satellites were found, their signal strength, latitude, longitude, altitude, speed, date / time. Date/Time Set the date, time and time zone. User manual...

  • Page 14: Restore Set

    Calibration Follow the instructions on the screen to calculate the accuracy of the touch screen depending on the person. Navipath Set the path to the navigation software. Power View the battery charge level. Restore set Return to factory settings. All settings will be reset, including screen calibration. System info It displays system information such as: software version, RAM, ROM, UID.

  • Page 15: Technical Specifications

    FM Transmitter (FM) The FM transmitter function is used to play the instructions given by the navigator through the car speaker. If this function is activated, the GPS speaker will be deactivated. NOTE: The broadcast frequency in the navigator must be the same as the frequency set on the car radio.

  • Page 16: Troubleshooting

    Wait for 3 minutes to receive signals or change your position. EU Simplified Declaration of Conformity SC ONLINESHOP SRL declares that GPS navigation system PNI L807 PLUS complies with the Directive RED 2014/53/UE. The full text of the EU declaration of conformity is available at the following Internet address: https://www.mypni.eu/products/6198/download/certifications...

  • Page 17: Masuri De Precautie

    Atentionari Compania noastra nu isi responsabilitatea pentru pierderea datelor cauzata de » lipsa unei copii de siguranta. Va rugam sa cititi cu atentie instructiunile din acest manual de utilizare si sa » folositi numai accesoriile originale, pentru a evita daune neasteptate. Instalarea altor programe pe acest dispozitiv, fara a fi in conformitate cu »...

  • Page 18: Caracteristici Principale

    Nu folositi volumul la maxim, va poate afecta auzul. » Prezentare PNI L807 Plus este folosit in principal pentru functia de navigare prin GPS. In plus, poate reda fisiere audio, video si foto. Caracteristici principale Interfata prietenoasa pentru utilizare simpla »...
  • Page 19 Descriere porturi, butoane si functii 1. Buton aprindere / oprire dispozitiv 2. Indicator LED stare de functionare 3. Jack conectare casti 4. Slot card micro SD (cardul nu este inclus) 5. Port mini USB Instructiuni de utilizare Alimentarea dispozitivului Dispozitivul poate fi alimentat in trei moduri: •...

  • Page 20: Pornirea / Oprirea Dispozitivului

    Nota: Acest navigator utilizeaza un acumulator Li-Polimer integrat ce nu poate fi scos. Daca lumina de fundal a ecranului este redusa, iar bateria este incarcata complet, atunci dispozitivul poate functiona pana la 3 ore. Unele functii precum redare fisiere sau lumina de fundal intensa consuma mai multa energie, ceea ce va reduce in mod evident durata de functionare pe baterie.

  • Page 21: Conectarea La Un Calculator

    ATENTIE: Nu scoateti cardul din dispozitiv atunci cand sistemul reda un fisier media. » Nu apasati tare si nu indoiti cardul SD. » Nu pastrati cardul in zone cu temperatura si umiditate ridicate sau in lumina » directa a soarelui. Pastrati cardul departe de lichide si substante corozive. Acordati atentie sporita la pozitia de introducere a cardului in slotul de pe »...
  • Page 22 Muzica (Music) Daca pe cardul micro SD introdus in dispozitiv se afla fisiere audio, accesand meniul Muzica veti vedea folderul SDMMC. Apasati pe pictograma afisata pentru a vizualiza lista de melodii. 1. Inapoi catre lista de fisiere 2. Selectie mod de redare: ciclica, aleatorie, unica fara repetare 3.
  • Page 23 5. Stop redare fisier, fisierul anterior, fisierul urmator 6. Reglare volum 7. Timp scurs Video Daca pe cardul micro SD introdus in dispozitiv se afla fisiere video, accesand meniul Video veti vedea folderul SDMMC. Apasati pe pictograma afisata pentru a vizualiza lista de fisiere. Manual de utilizare...
  • Page 24 1. Nume fisier 2. Reglare volum 3. Reglare luminozitate 4. Inapoi catre lista de fisiere 5. Play / Pauza 6. Melodia anterioara 7. Melodia urmatoare 8. Timp scurs Poze (Photo) Daca pe cardul micro SD introdus in dispozitiv se afla fisiere foto, accesand meniul Poze veti vedea folderul SDMMC.
  • Page 25 Ebook Daca pe cardul micro SD introdus in dispozitiv se afla fisiere text, accesand meniul Ebook veti vedea folderul SDMMC. Apasati pe pictograma afisata pentru a vizualiza lista de fisiere. 1. Inapoi catre lista de fisiere 2. Derulare in sus 3.
  • Page 26 Lumina de fundal (Backlight) Reglati intensitatea luminii de fundal a ecranului: Manual de utilizare...
  • Page 27 Control Volum (Volume) Reglati intensitatea volumului (mai tare, mai incet) sau dezactivati sunetul: Setari limba (Language) Selectati limba de afisare a meniului: Optiuni disponibile: engleza, franceza, germana, italiana, portugheza, rusa, spaniola, maghiara, poloneza, romana, letona. Manual de utilizare...
  • Page 28 Informatii GPS (info GPS) Vizualizare informatii GPS: cati sateliti s-au gasit, puterea semnalului acestora, latitudine, longitudine, altitudine, viteza, data/ora. Data / Ora (Date/Time) Setati data, ora si fusul orar. Manual de utilizare...
  • Page 29 Calibrare ecran (Calibration) Urmati instructiunile de pe ecran pentru a calcula precizia ecranului tactil in functie de persoana. Navipath Setati calea catre software-ul de navigatie. Alimentare (Power) Vizualizeaza nivelul de incarcare a bateriei. Setari resetare (Restore set) Revenire la setarile din fabrica – toate setarile vor fi resetate, inclusiv calibrarea ecranului.

  • Page 30: Specificatii Tehnice

    FM Transmitter (FM) Functia de FM transmitter este utilizata pentru a reda instructiunile date de navigator prin boxa masinii. Daca se activeaza aceasta functie, difuzorul GPS-ului va fi dezactivat. NOTA: frecventa de emisie din navigator trebuie sa fie aceeasi cu frecventa setata pe radioul masinii.
  • Page 31 Asteptati 3 minute pentru a receptiona semnale sau schimbati pozitia unde va aflati Declaratie UE de conformitate simplificata SC ONLINESHOP SRL declara ca Sistem de navigatie GPS PNI L807 PLUS este in conformitate cu Directiva RED 2014/53/UE. Textul integral al declaratiei UE de conformitate este disponibil la urmatoarea adresa de internet: https://www.mypni.eu/products/6198/download/certifications...
