Belkin Conserve Quick Start Manual

Conserve
Advanced Surge Protector with Energy-Saving Remote Switch
Detachable Wireless Remote
Switch with Wall-Mount
1. Introduction
Thank you for purchasing the Conserve energy-saving surge protector from Belkin.
Many devices today are never truly off but instead continue to consume electricity
while in a standby mode. Standby mode or "phantom power" is wasted energy and
it adds up quickly. Conserve makes it easy to reduce your electricity consumption by
completely turning off the power to electronic devices when they are not in use.
To find out more about how you can save energy, go to www.belkin.com/conserve.
Please be sure to read through this User Guide carefully to ensure
proper installation and setup of the Conserve surge protector.
2. Operation
The Conserve energy-saving surge protector is already preset to work
with the wireless remote switch. Only adjust the channel setting if:
• Y ou have more than one Conserve surge protector and
want to control each one independently.
• Y ou want to control more than one Conserve surge
protector using the same wireless remote switch.
• Y ou think there is interference on the preset channel
and you want to try other channels.
Syncing your Conserve Surge Protector and Wireless Remote Switch
To change the channel setting, use a small screwdriver to shift the keys on the
surge protector and the wireless remote switch. Make sure the keys on the
wireless remote switch and the surge protector have the same configuration
(up to eight possible settings). For ultimate convenience, control multiple
Conserve surge protectors with a single remote switch. Adjust the channel
setting on each Conserve unit to match the setting on the remote switch
Channel Selector
(Back of Remote)
Channel Selector
(Back of Surge Protector)

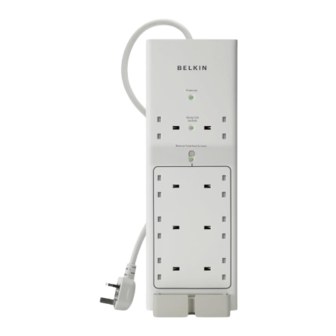

Grounded Indicator Light
Two (2) Always On Outlets
Always On
Indicator Light
Manual Override Switch and
Indicator Light
Six (6) Remote
Switched Outlets
Sliding Safety Covers
Coaxial Connectors (1 in, 1 out)
Cable Management System
(Clip not shown)
