GRUNDFOS INSTRUCTIONS
Sololift2 D-2
Installation and operating instructions
60 Hz

Advertisement

Table of Contents
loading

Related Manuals for Grundfos Sololift2 D-2

Summary of Contents for Grundfos Sololift2 D-2

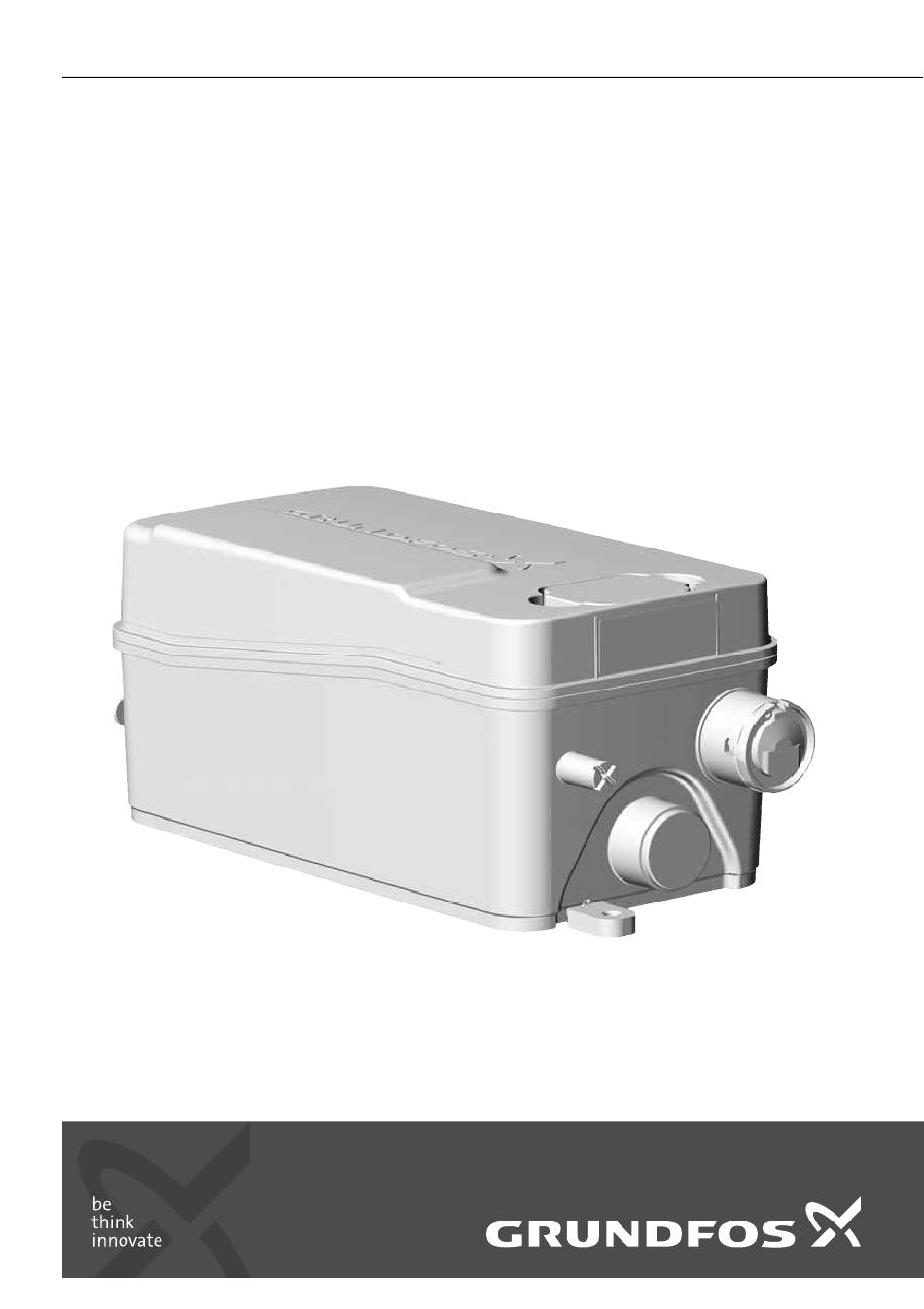

  • Page 1 GRUNDFOS INSTRUCTIONS Sololift2 D-2 Installation and operating instructions 60 Hz...

  • Page 2: Table Of Contents

    Sections 1-3 give the information necessary to be The symbols and hazard statements below may able to unpack, install and start up the product in a appear in Grundfos installation and operating safe way. instructions, safety instructions and service Sections 4-8 give important information about the instructions.

  • Page 3: Safety Instructions Receiving The Product

    2. Safety Instructions Servicing the product Receiving the product WARNING Electric shock WARNING Death or serious personal injury Crushing hazard - Before starting any work on the product, Death or serious personal injury make sure that the power supply has - Stack maximum two pallets together been switched off and that it cannot be under transportation.

  • Page 4: Transporting The Product

    3. Receiving the product 4.2 Electrical connection DANGER 3.1 Transporting the product Electric shock WARNING Death or serious personal injury - The protective earth (PE) of the power Crushing hazard outlet must be connected to the Death or serious personal injury protective earth of the product.

  • Page 5: Product Introduction

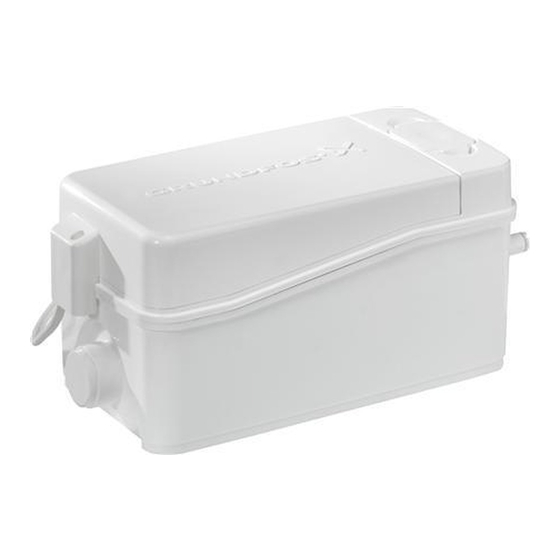

    5. Product introduction 6. Servicing the product Always use original accessories from Grundfos to 5.1 Product description ensure safe and reliable operation. The D-2 is a small, compact automatic lifting station WARNING suitable for pumping grey wastewater off places where it cannot be led directly to the sewer by means Electric shock of a natural downward slope.

  • Page 6: Service Instructions

    6.3 Service instructions Pressure switch stuck The pressure switch unit can be removed separately. Thanks to the product design, service is easy in case of malfunction or a blocked pump. 1. If the water level in the tank is above the motor flange, disconnect the power supply and drain Impeller stuck the tank by means of the drain hose.

  • Page 7: Fault Finding The Product

    7. Fault finding the product WARNING Electric shock Death or serious personal injury - Before starting any work on the product, make sure that the power supply has been switched off and that it cannot be accidentally switched on. See also section 6.3 Service instructions.

  • Page 8: Technical Data

    1. Use the public or private waste collection service. 2. If this is not possible, contact the nearest Maximum pump head: 5.7 m. Grundfos company or service workshop. Maximum system head: 4.5 m. The crossed-out wheelie bin symbol on a product means that it must be The system pressure must not exceed 4.5...
  • Page 9 Appendix...
  • Page 12 GB: EU declaration of conformity PT: Declaração de conformidade UE We, Grundfos, declare under our sole responsibility that the product A Grundfos declara sob sua única responsabilidade que o produto Sololift, to which the declaration below relates, is in conformity with Sololift, ao qual diz respeito a declaração abaixo, está...
  • Page 13 EN 12050-2 ‫يك ون معيارھ ا‬ Sololift2 D-2 ‫محط ات ال رفع‬ – Article 11(4): .‫المودي ل‬ –Sololift2 D-2 lifting stations marked with EN 12050-2 on the ‫ة‬ ‫فة التقني‬ ‫ا للمواص‬ ‫ييد، وفق‬ ‫ج التش‬ ‫تخدامات منت‬ ‫تخدام أو اس‬...
  • Page 14 Artículo 11(4): conformidade com o Artigo 11(4): –Estaciones elevadoras Sololift2 D-2 en cuya placa de –Estações elevatórias Sololift2 D-2 com a indicação EN 12050- características figure la norma EN 12050-2. 2 na chapa de características.
  • Page 16 Argentina China Hong Kong Bombas GRUNDFOS de Argentina S.A. GRUNDFOS Pumps (Shanghai) Co. Ltd. GRUNDFOS Pumps (Hong Kong) Ltd. Ruta Panamericana km. 37.500 Centro 10F The Hub, No. 33 Suhong Road Unit 1, Ground floor Industrial Garin Minhang District Siu Wai Industrial Centre 1619 Garín Pcia.
  • Page 17 Malaysia Serbia Turkey GRUNDFOS Pumps Sdn. Bhd. Grundfos Srbija d.o.o. GRUNDFOS POMPA San. ve Tic. Ltd. 7 Jalan Peguam U1/25 Omladinskih brigada 90b Sti. Glenmarie Industrial Park 11070 Novi Beograd Gebze Organize Sanayi Bölgesi 40150 Shah Alam Phone: +381 11 2258 740...
  • Page 18 98661665 0719 ECM: 1261395 www.grundfos.com...
