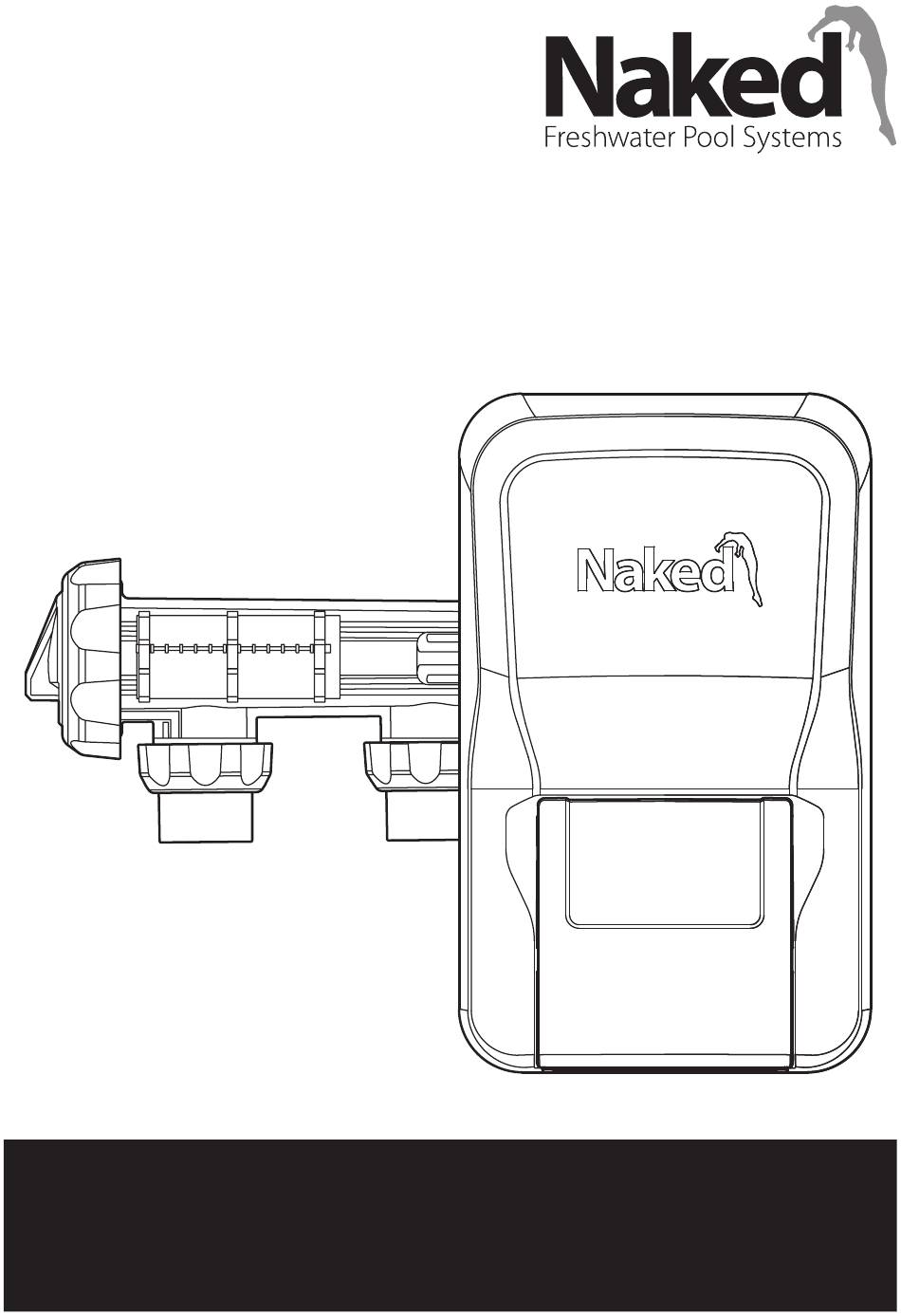

FRESHWATER SYSTEM
INSTALLATION & STARTUP GUIDE
MODELS: NKD-R & NKD-C
NOTE:
1.
READ THIS DOCUMENT PRIOR TO INSTALLATION. IMPROPER INSTALLATION WILL VOID WARRANTY.
2.
PRODUCT ONLY TO BE INSTALLED & SERVICED BY A SUITABLY QUALIFIED PROFESSIONAL.
3.
THIS MANUAL CONTAINS IMPORTANT INFORMATION. ONCE INSTALLATION IS COMPLETE INSTALLER
MUST PROVIDE THIS MANUAL TO OWNER/OPERATOR TO STORE IN A SAFE PLACE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Naked NKD-R
Summary of Contents for Naked NKD-R
- Page 1 FRESHWATER SYSTEM INSTALLATION & STARTUP GUIDE MODELS: NKD-R & NKD-C NOTE: READ THIS DOCUMENT PRIOR TO INSTALLATION. IMPROPER INSTALLATION WILL VOID WARRANTY. PRODUCT ONLY TO BE INSTALLED & SERVICED BY A SUITABLY QUALIFIED PROFESSIONAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION. ONCE INSTALLATION IS COMPLETE INSTALLER...
-
Page 2: Important - Please Read
The contents of this manual are the exclusive copyright of Naked Pools and may not be reproduced without written © permission. 2020 Whilst every care was taken in preparation of this document, Naked Pools accepts no responsibility for the accuracy of the information supplied. -
Page 3: Tools Required
OXI & ION Cell Housing with Unions Copper Test Kit Wall Mounting Bracket System User Guide 50/40mm Reducing Bushes (x2) Naked Water Test Bottle TOOLS REQUIRED Hacksaw No. 2 Phillips Head Screwdriver PVC Primer & Glue Drill & 6mm Drill Bit... -
Page 4: Typical System Installation

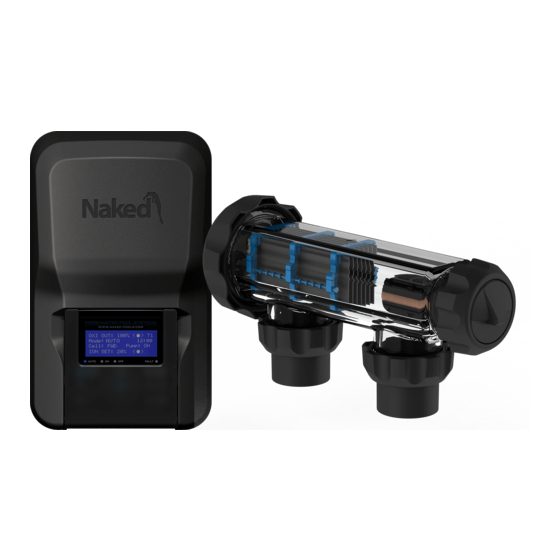

TYPICAL SYSTEM INSTALLATION Indicates direction of water ow RETURN FROM TO POOL SKIMMER BOX Filter Heater ION Cable Pump OXI Cable Control Unit with Weather Shield Pump mains power cable OXI & ION Cell Housing Control Unit mains power cable Before you start: We DO NOT recommend the use of valves on the inlet or outlet of the Cell Housing. - Page 5 INSTALLATION | CELL HOUSING Before you start: A Venturi Pipe is incorporated within the Cell Housing designed to eliminate any possible gas build up, although it is always recommended to ensure proper installation to eliminate this from happening. The Cell Housing must be installed in the RETURN pipework to the pool. It must always be installed AFTER the lter, gas heater, solar heating or heat pump.
-
Page 6: Installation | Control Unit
INSTALLATION | CONTROL UNIT Before you start: The Control Unit has an Ingress Protection Rating of IP34 enabling it to be installed outdoors. Regulations require that the Control Unit shall be installed outside the pool zone. The Control Unit shall be installed according to AS/NZS 3000 wiring rules. - Page 7 NEVER add Salt or Minerals directly to the skimmer box. Before starting the Naked System balance the pool water using the calculators in the Naked App (download using the QR code on the back cover) or use the information below: WATER BALANCE GUIDELINES - Ideal Levels...
- Page 8 The digital display on the Control Unit will typically explain each step and how to adjust or save the desired setting. Programming the Naked System is completed in 6 simple steps using the following controls which are located in the centre of the Control Unit keypad :...
- Page 9 STEP 5 Choose Outdoor or Indoor Pool. Did you know? When selecting indoor pools during startup the unit will automatically reduce the OXI output to 50% to avoid chlorine levels increasing. Once the startup process is complete, the OXI output will automatically default back to 100% *Consider reducing OXI output ongoing for indoor pools depending on usage.
- Page 10 OPTION 1 - Typical setup for most pools with automation STEP 1 Change Timers 1 and 2 in the Naked System to 00:00 to ensure the system is always ON allowing it to be controlled completely by the external controller.
-
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS MODEL NKD-R NKD-C Volts Input (Vac) 220 - 265 220 - 265 Amps Input (Aac) 0.88 0.88 Total Power Consumption (W) 209.5 209.5 OXI Volts Output (Vdc) OXI Amps Output (Adc) Chlorine (g/hr) 15 @ 800ppm TDS 30 @ 1200ppm TDS... - Page 12 SCAN THIS CODE T O G E T T H E NAKED APP! or visit your App Store and search “Naked Pools” Swimming as nature intended™ 1800 625 331 suppor t@naked-pools.com w w w.naked-pools.com...
