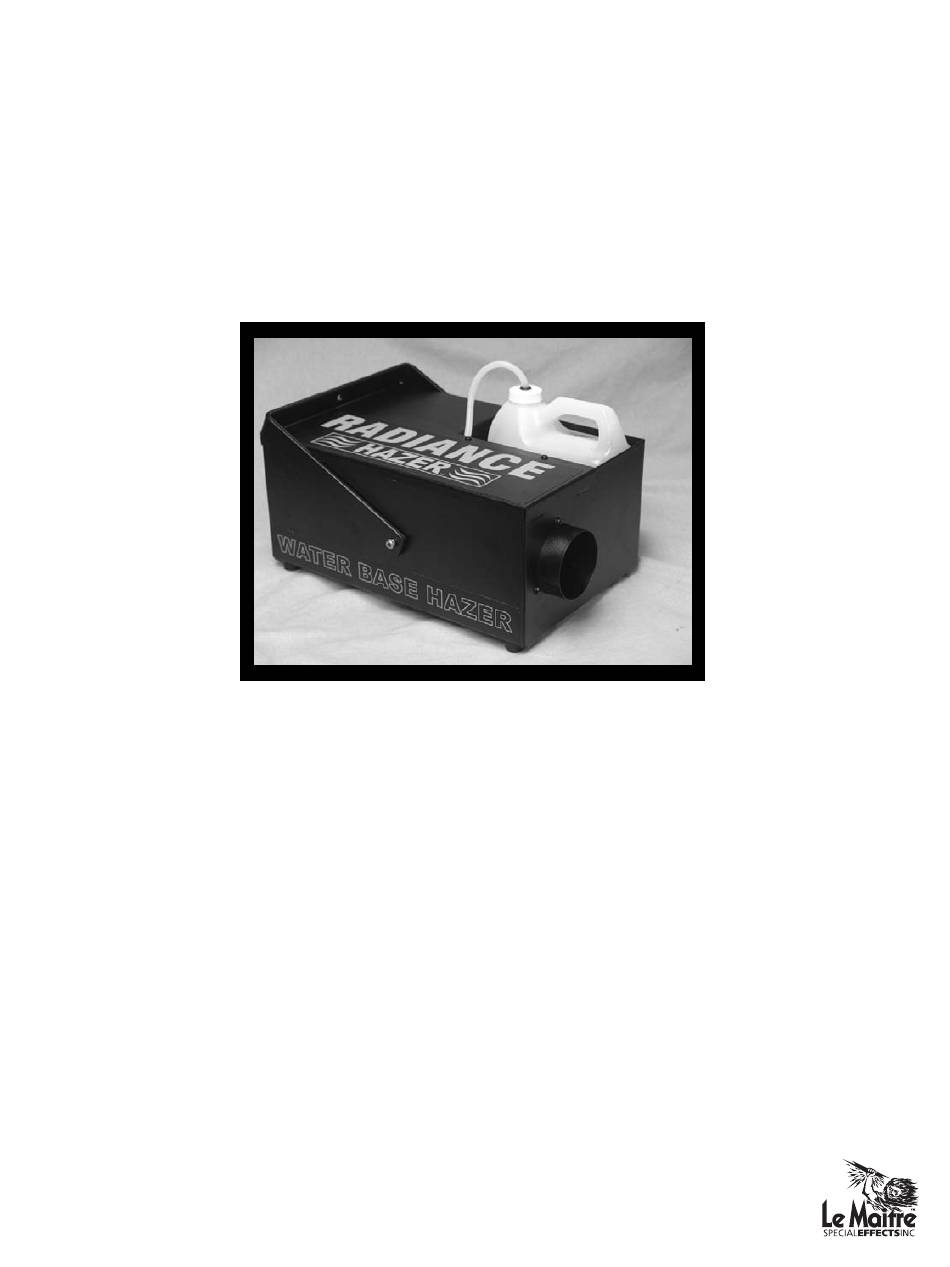

- Page 1 Radiance Hazer Operator’s Manual V. 01.18.07 lemaitrefx.com...
-
Page 2: Table Of Contents
Table of Contents Page 1 Introduction Page 2 Warnings Page 3 Technical Specifications Page 4 Operating Procedures Page 5 Priming the Fluid Line Page 5 DMX Operation Page 6 Cleaning Procedure Page 8 Recommended Fluid Page 8 Warranty Page 9 Safety Precautions Please Read Carefully Before Operating lemaitrefx.com... -
Page 3: Introduction
Introduction The Radiance Hazer is a compact unit for producing a resilient light enhancing haze quickly. Adjustable output allows for the venue to be hazed just prior to use and then adjust to maintain levels during the event. The exclusive chambered 4-Port Rapid Clean Vaporizer is the heart of the unit. - Page 4 Warnings Important Safety Instructions: Do not touch or place hands, expose skins, within 50 cm. of discharge nozzle. Important Safety Instructions: Do not remove the outer case until power has been disconnected from the machine. Important Safety Instructions: Persons suffering from asthma or allergenic sensitivity may experience irritation, discomfort, or allergic symptoms when exposed to fog effects.
-
Page 5: Technical Specifications
Technical Specifications Model: Radiance Hazer Part Number: CLF 2460 Length: 16 1/8” 41cm Width: 10” 25cm Height: 7” 18cm Net Weight: 28lbs 12.7kg Power Rating: 110 Volt A.C. 60 Hz. 5 Amps. Fluid: Neutron Water Base Haze Consumption - 27 - 380 cc/ hour... -
Page 6: Operating Procedures
Operating Procedure Stand Alone Operation 1) Insert a 2 or 4 Litre jug of Neutron Fluid into the fluid jug holder. Ones Tens Hundred 2) Remove the cap and break the foil seal. Insert the pickup tube into the jug and tighten the lid. Ensure the pickup end will sit at the lowest end if the unit is not mounted level. -
Page 7: Dmx Operation
4) Plug the unit into a suitable power source. Turn the main power switch on and it will illumi- nate if power is present. The unit requires about 7 minutes to heat before haze can be pro- duced. The Hand Remote indicates the heating cycle by flashing the haze switch light. When the unit is ready to haze the light will be solid. -
Page 8: Cleaning Procedure
Cleaning Procedure • Make sure the main power cord is disconnected from power before at- tempting to remove the outer cover • Make sure unit has cooled sufficiently to perform the operation Note: Cleaning is recommended after every 25 litres of fluid. Fig. - Page 9 13) Verify that all of the hoses are connected. 14) Insert the tabs on the Radiance chassis cover into the slots located on the front of the Radiance Hazer. Slide the lid back until it drops into place. Using a #2 Philips screw driver Fig.
-
Page 10: Recommended Fluid
30 days is considered purchased. Warning: Le Maitre Special Effects Inc. considers all it's product to be safe for use in the application it was intended. Le Maitre Special Effects takes no responsibility for misuse or incorrect use. Always refer to equip- ment owners manual for proper use. -
Page 11: Safety Precautions
2. Do not modify the machine or use a machine which has been damaged in any way. 3. Allow sufficient air circulation around the machine at all times. 4. Protect the Radiance Hazer from direct weather effects and wet locations. 5. Only use fluids recommended by the Le Maitre Special Effects.
